Ünal NHXMH 5x16 mm2 Halogen Free Cable
- Brand: Ünal Kablo
- SKU: UNALWB0462
- Price: 69594.00 TRY + VAT · incl. VAT 83512.80 TRY
- Availability: In stock
- NHXMH Cables
- Ünal Kablo NHXMH Cables
- Selection guide: NHXMH Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop

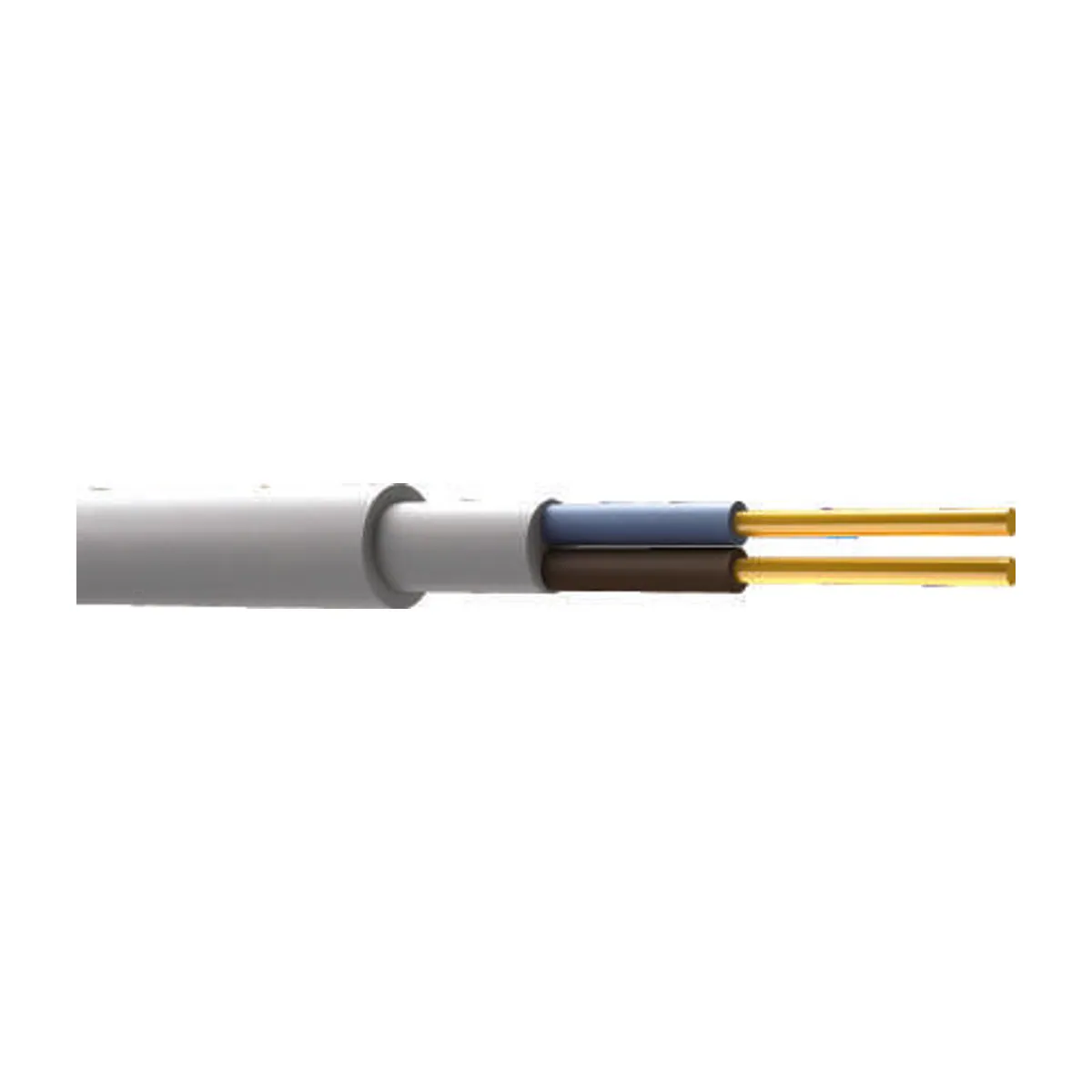

Ünal NHXMH 5x16 mm2 Halogen Free Cable is a halogen-free installation cable. Cable family: NHXMH. Conductor material: Copper. Insulation: XLPE. Sheath property: Halogen-free. Core size: 5x16 mm2. The image is the manufacturer's representative family image; select the color, number of cores and cross-section according to the written specifications of the product.
| Conductor | Çok telli (örgülü) bakır iletken (rm) |
|---|---|
| Filler | HFFR |
| Core Colour Code | TS HD 308 S2 |
| Outer Sheath Material | HFFR |
| Rated Voltage | 300/500 V |
| Test Voltage | 2 kV |
| Minimum Bending Diameter | 12 x D |
| Operating Temperature | -30 °C … +90 °C |
| Short-Circuit Temperature | 250 °C |
| Standards | TS EN 60228 (iletken direnci); DIN VDE 0250-214 (yalıtım direnci, yalıtkan, dış kılıf); VDE 0100-430 (akım taşıma kapasitesi) |
| Flame Retardance / Fire Performance | TS EN 60332-1-2; halojensiz |
| Conductor Resistance (20 °C) | Max. 1,15 Ω/km (DC) |
