Ünal NYA 1x50 mm2 H07V-R Gray Cable
- Brand: Ünal Kablo
- SKU: UNALWB0089
- Price: 37341.40 TRY + VAT · incl. VAT 44809.68 TRY
- Availability: In stock
- NYA Cables
- Ünal Kablo NYA Cables
- Selection guide: NYA Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop

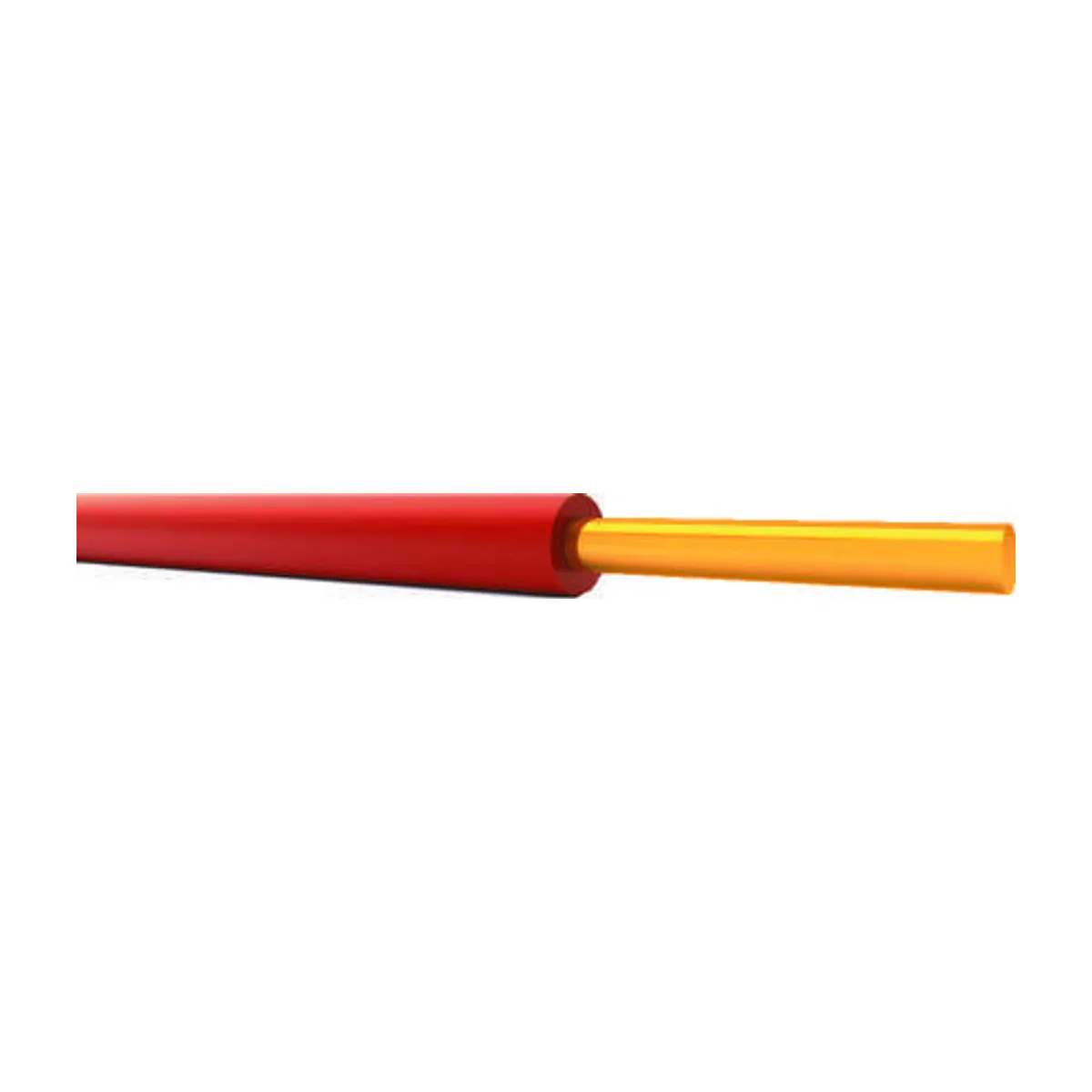

Ünal NYA 1x50 mm2 H07V-R Gray Cable is a single-core installation cable. Cable family: NYA. Harmonized code: H07V-R. Conductor material: Copper. Insulation: PVC. Core size: 1x50 mm2. Color: Gray. The image is the manufacturer's representative family image; select the color, number of cores and cross-section according to the written specifications of the product.
| Core Cross-Section | 1x50 mm² |
|---|---|
| Color | Grey |
| Conductor | Çok telli (örgülü) bakır iletken (rm) |
| Insulation Material | PVC (TI1) |
| Core Colour Code | TS 9758 |
| Rated Voltage | 450/750 V |
| Operating Temperature | -20 °C … +70 °C |
| Short-Circuit Temperature | 160 °C |
| Standards | TS EN 60228 (iletken direnci); TS 9758 (yalıtım direnci, yalıtkan); VDE 0100-430 (akım taşıma kapasitesi) |
| Flame Retardance / Fire Performance | TS EN 60332-1-2 |
| Conductor Resistance (20 °C) | Max. 0,387 Ω/km (DC) |
| Outer Diameter | Yaklaşık 11,0 mm |
| Current Carrying Capacity | Toprakta (20 °C): 132 A; Havada (30 °C): 198 A |
