Ünal NYY 3x95+50 mm2 YVV Underground Power Cable
- Brand: Ünal Kablo
- SKU: UNALWB0331
- Price: 263928.00 TRY + VAT · incl. VAT 316713.60 TRY
- Availability: In stock
- NYY Cables
- Ünal Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop

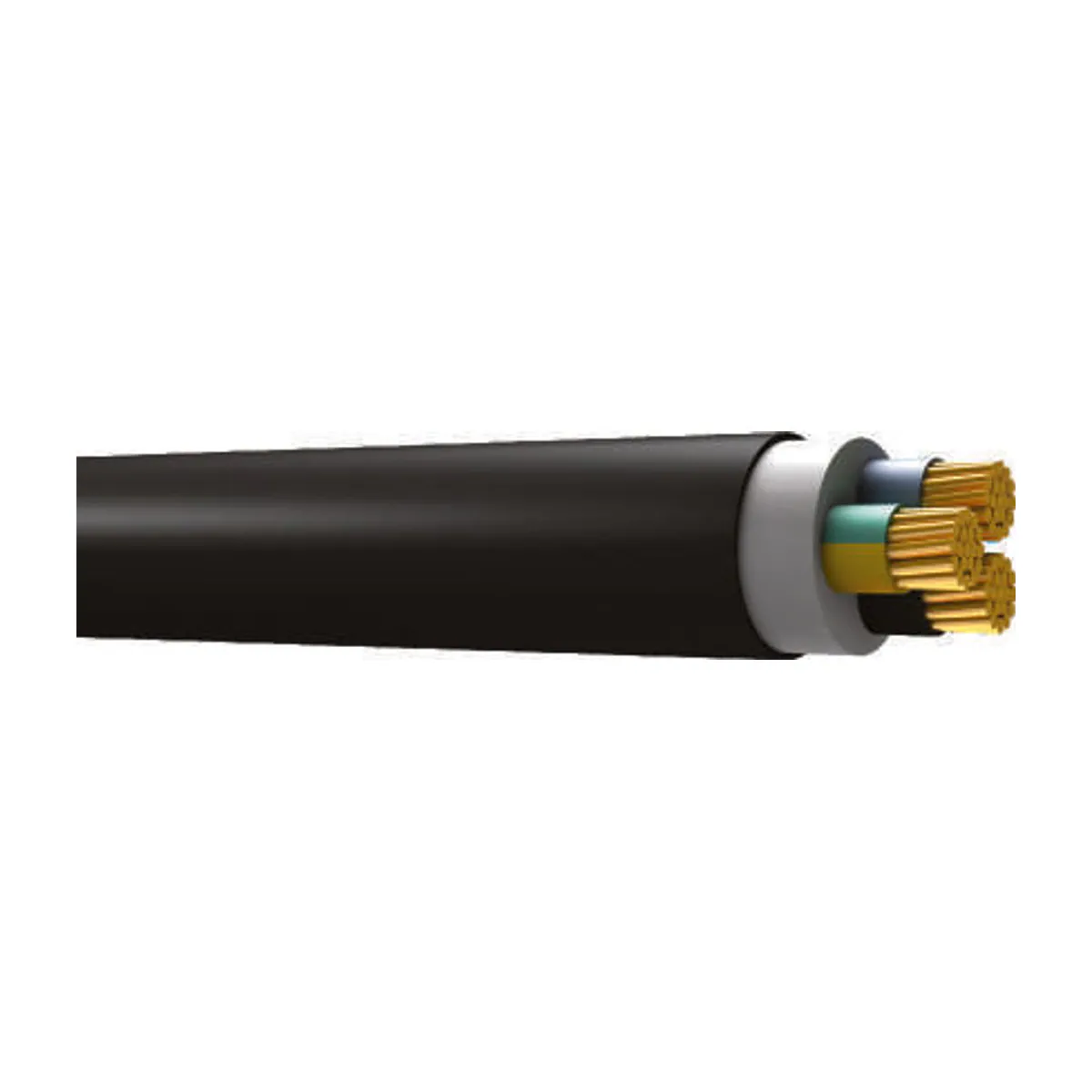

Ünal NYY 3x95+50 mm2 YVV Underground Power Cable is a power cable. Cable family: NYY. Alternative designation: YVV (NYY). Conductor material: Copper. Insulation: PVC. Core size: 3x95+50 mm2. The image is the manufacturer's representative family image; select the color, number of cores and cross-section according to the written specifications of the product.
| Core Cross-Section | 3x95+50 mm² |
|---|---|
| Conductor | Çok telli (örgülü) bakır iletken (rm/rm) |
| Insulation Material | PVC/A |
| Core Colour Code | TS HD 308 S2 |
| Outer Sheath Material | PVC |
| Rated Voltage | 0,6/1 kV |
| Test Voltage | 3.5 kV |
| Operating Temperature | -20 °C … +70 °C |
| Short-Circuit Temperature | 160 °C |
| Conductor Resistance (20 °C) | Max. 0.1930 Ω/km (DC) |
| Standards | TS EN 60228 (iletken direnci); TS 60502-1 (yalıtım direnci); VDE 0100-430 (akım taşıma kapasitesi); TS HD 308 S2 (yalıtkan); TS IEC 60502-1 (dış kılıf) |
| Flame Retardance / Fire Performance | TS EN 60332-1-2 |
| Outer Diameter | Yaklaşık 40,0 mm |
| Current Carrying Capacity | Toprakta (20 °C): 275 A; Havada (30 °C): 244 A |
