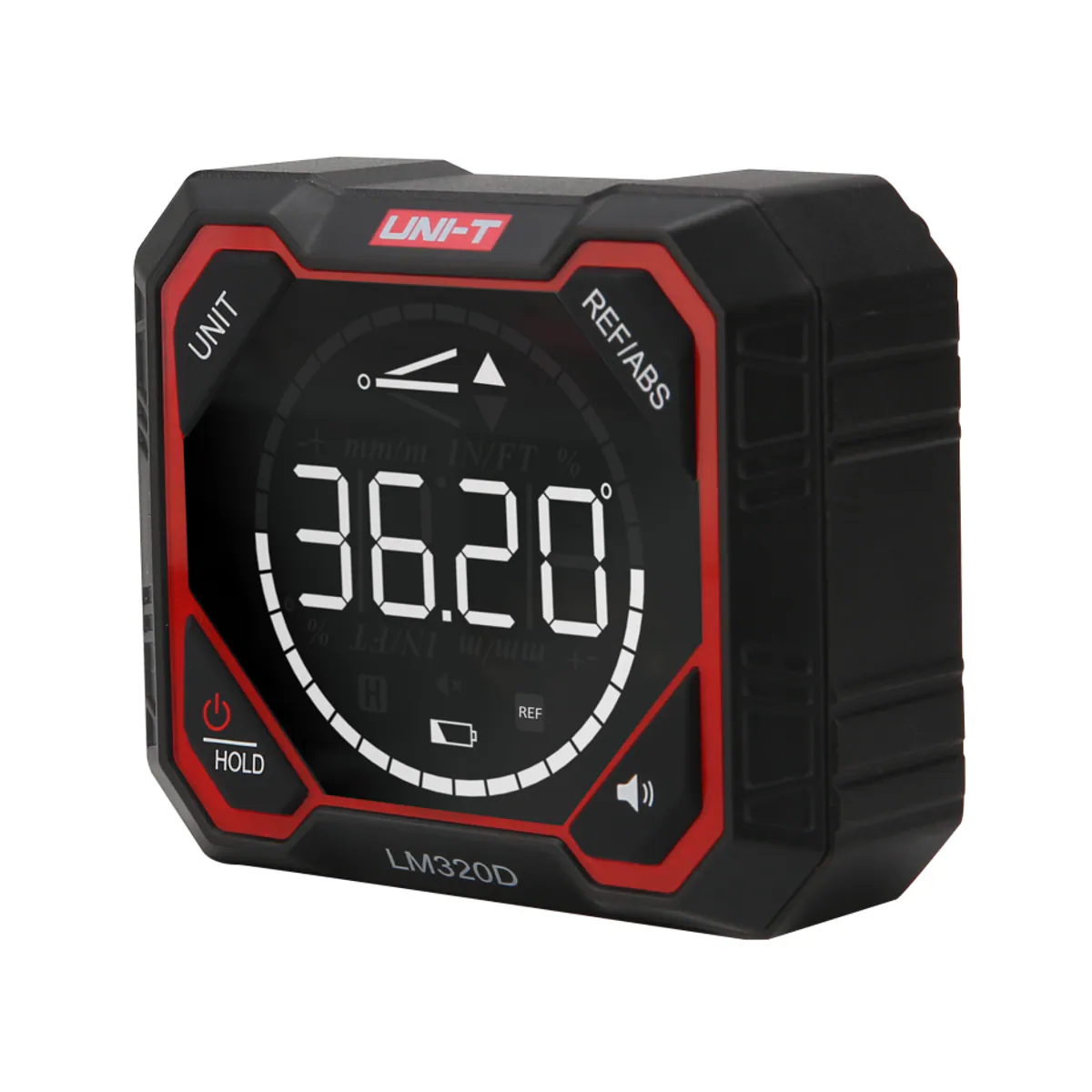

Unit LM320F 4 x 90° ±0.2° Digital Angle Meter with 3-line Laser and Four-sided Magnetic Base

• Brand: Unit
• SKU: LM320F
• MPN: LM320F
• Model: 3 çizgi
• Price: 1964.31 TRY + VAT · incl. VAT 2357.17 TRY
• Availability: Made to order
• Angle Measuring Instruments
• Selection guide: Laser Measuring Devices Selection Guide: Technical Criteria and Engineering Practice

Unit LM320F is a digital angle meter with a 3-line laser indication and four magnetic faces that measures angle over 4 × 90° with ±0.2° accuracy. The measurement range is 4 × 90° with ±0.05° resolution and ±0.2° angle accuracy and repeatability; the units are °, %, mm/m and in/ft. It provides relative and absolute angle measurement, angle hold and screen rotation. The 3-line laser indication has ±3 mm/5 m accuracy; the laser is Class 2, 630 – 670 nm and <1 mW, and the magnetic base covers four faces. Its aluminum alloy frame, 1000 mAh lithium battery charged over Type-C and LED-backlit rotatable screen make it suitable for tilt and angle measurement in construction, mechanical installation, wood processing and the automotive industry. It measures 83.5 mm × 70 mm × 35.5 mm, weighs about 180 g and runs for 6 hours on a charge.
