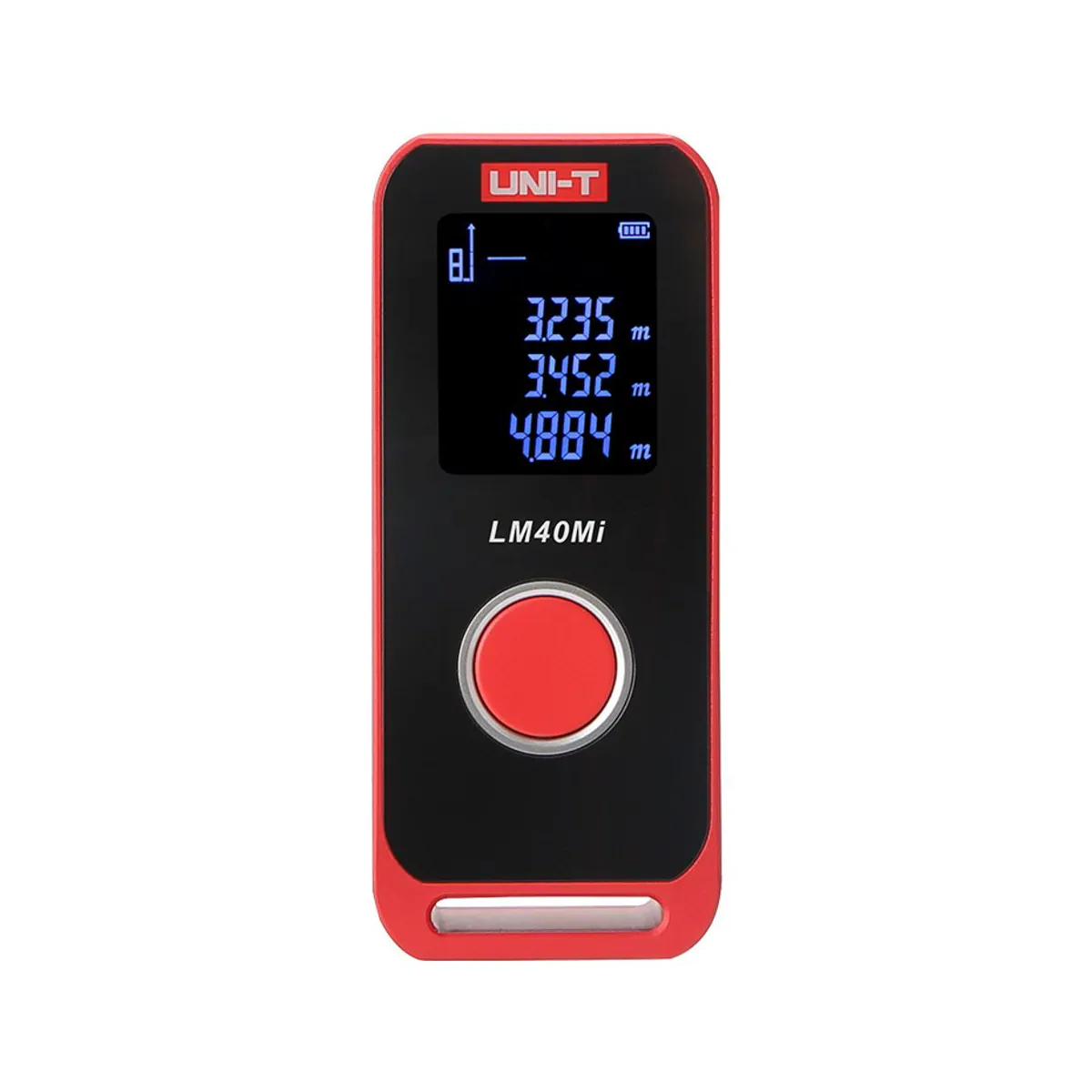

Unit LM40Mi 40 m Mini Laser Distance Meter with Type-C Charging
- Brand: Unit
- SKU: LM40Mi
- MPN: LM40Mi
- Model: 0.05 m – 40 m
- Price: 1416.13 TRY + VAT · incl. VAT 1699.36 TRY
- Availability: Made to order
- Laser Distance Meters
- Selection guide: Laser Measuring Devices Selection Guide: Technical Criteria and Engineering Practice
Unit LM40Mi is a mini laser distance meter with a hard metal housing that measures distance over 0.05 m to 40 m with ±(2.0 mm + 5×10⁻⁵ × D) accuracy. It provides continuous measurement, area, wall area and volume measurement, perimeter measurement, Pythagorean measurement and MAX/MIN, and the unit switches between m, inch and ft. The laser is Class II, 630 – 670 nm wavelength and <1 mW; the laser switches off after 20 s on a single measurement and the device powers off after 150 s. The 3.7 V 370 mAh Li-ion battery lasts for 8000 measurements on a full charge. It is used in indoor and outdoor decoration, architectural surveying, engineering projects, engineering acceptance and design work. It measures 86.5 mm × 36.5 mm × 19.5 mm, weighs 75 g and is supplied with a Type-C cable, a hand strap and a gift box.
| Measuring Range | 0.05 m – 40 m |
|---|---|
| Accuracy | ±(2.0 mm + 5×10⁻⁵ × D) |
| Laser Class | Class II |
| Measurement Units | m, inç, ft |
| Auto Laser Off | 20 s (tek ölçüm) |
| Additional Functions | Sürekli ölçüm, alan, duvar alanı ve hacim ölçümü, çevre ölçümü, Pisagor ölçümü, MAX/MIN, otomatik kalibrasyon, LCD arka ışık |
| Auto Power Off | 150 s |
| Certifications | CE, RoHS |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -20 °C – 60 °C |
| Power Source | 3.7 V 370 mAh Li-ion batarya |
| Product Dimensions | 86.5 mm × 36.5 mm × 19.5 mm |
| Gram | 75 g |
| Standard Accessories | Mini lazer mesafe ölçer, Type-C kablo, kullanım kılavuzu, el askısı, hediye kutusu |
| Laser Wavelength | 630 – 670 nm, <1 mW |
| Measurements per Full Charge | 8000 ölçüm |
| Charging Interface | Type-C |
| Storage Humidity | 20 %RH – 80 %RH |
