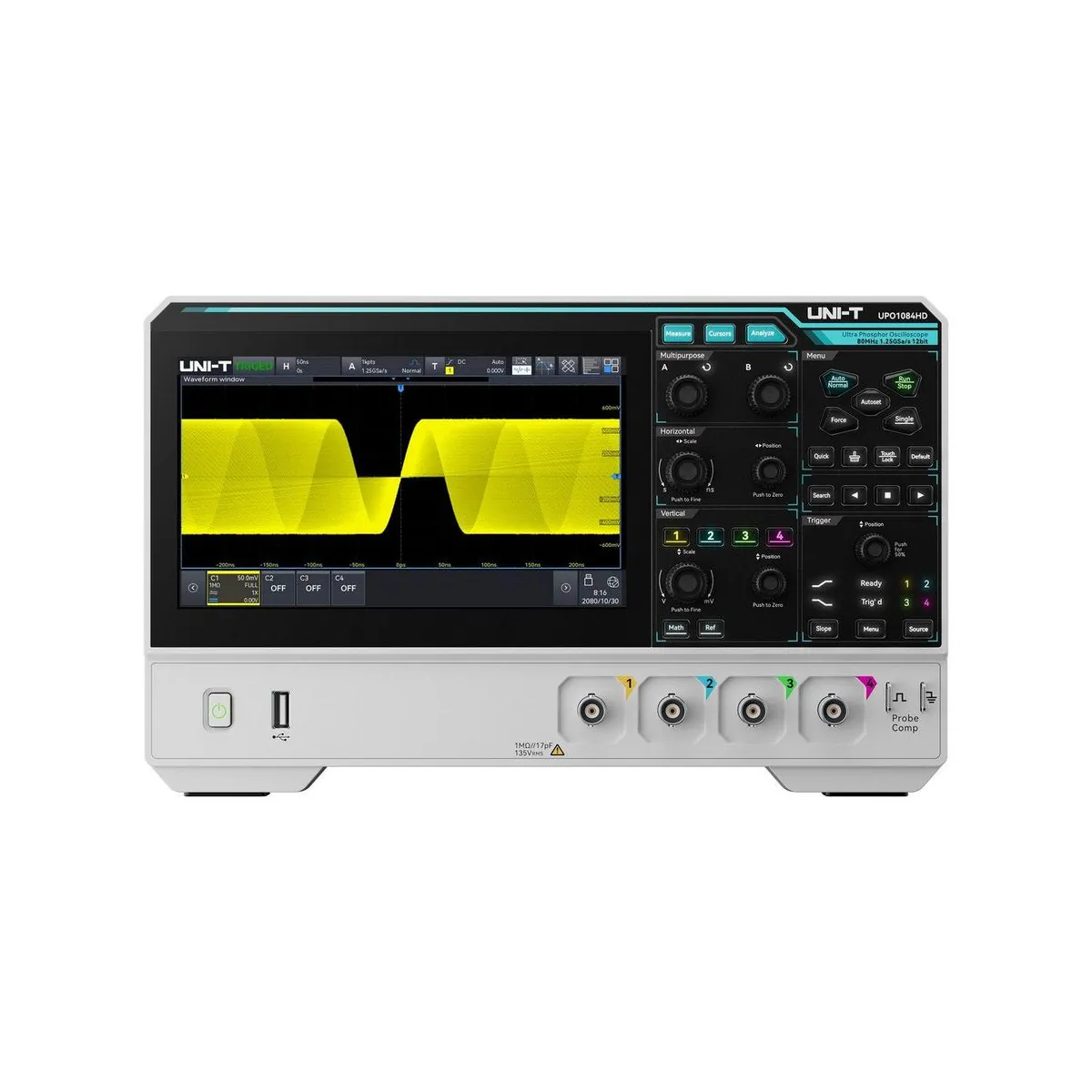

Unit UPO1084HD 80MHz 4-Channel 12-Bit High-Resolution Bench Oscilloscope
- Brand: Unit
- SKU: UPO1084HD
- MPN: UPO1084HD
- Price: 34261.26 TRY + VAT · incl. VAT 41113.51 TRY
- Availability: Made to order
- Oscilloscopes
- Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards
Unit UPO1084HD is a UPO1000HD series bench digital oscilloscope with 80 MHz bandwidth, four analog channels and 12-bit vertical resolution. Technical values: bandwidth 80 MHz; 4 analog channels; rise time ≤ 4 ns; sample rate 1.25 GSa/s with one channel, 625 MSa/s with two channels and 312.5 MSa/s with four channels; memory depth up to 100 Mpts; vertical resolution 12-bit; vertical scale 500 µV/div to 10 V/div; time base 5 ns/div – 1 ks/div; waveform capture rate 100,000 wfms/s (500,000 wfms/s in sequence mode); display 7-inch 1024 × 600 capacitive multi-touch screen; power consumption up to 65 W; dimensions 282 × 175 × 49 mm, weight 1.56 kg. Besides the oscilloscope function, it works as a spectrum analyzer, digital voltmeter, frequency counter, protocol analyzer and power analyzer; RS232/UART, I2C, SPI, CAN and LIN buses can be triggered on and decoded. It is used for bench measurements in electronics design, debugging, testing and teaching laboratories.
| Bandwidth | 80 MHz |
|---|---|
| Analog Channels | 4 |
| Sampling Rate | 1.25 GSa/s (1 kanal), 625 MSa/s (2 kanal), 312.5 MSa/s (4 kanal); gerçek zamanlı örnekleme |
| Memory Depth | En fazla 100 Mpts (otomatik: 5 Mpts sınırlı; 25 kpts, 250 kpts, 500 kpts, 5 Mpts, 50 Mpts, 100 Mpts seçilebilir) |
| Rise Time | ≤ 4 ns (hesaplanan, tipik, %10–90) |
| Waveform Capture Rate | 100,000 wfms/s; sıralı (sequence) modda 500,000 wfms/s |
| Vertical Resolution | 12 bit |
| Vertical Scale | 500 µV/div – 10 V/div |
| Time Base | 5 ns/div – 1 ks/div |
| Maximum Input Voltage | 400 V (DC + AC tepe), 135 Vrms |
| Trigger Types | Kenar, darbe genişliği, video, eğim, runt, pencere, N. kenar, gecikme, zaman aşımı, süre, kurulum ve tutma, kod deseni; bölge (zone) tetikleme |
| Serial Bus Trigger/Decode | RS232/UART, I2C, SPI, CAN, LIN (standart); 4 çözümleme |
| Additional Functions | Altı enstrüman bir arada (osiloskop, spektrum analizörü, dijital voltmetre, frekans sayacı, protokol analizörü, güç analizörü); Ultra Phosphor 3.0 ile 256 gri seviyeli ekran; 100,000 kareye kadar donanım gerçek zamanlı dalga kaydı ve oynatma; donanım hızlandırmalı şablon testi; arama ve gezinme; histogram; SCPI; dahili web sunucu; çevrimiçi güncelleme; arka panelde 100 mm × 100 mm duvar montaj arayüzü |
| Interfaces | USB Host 2.0 (ön panel), USB Device 2.0 (arka panel), LAN (VXI11, 10/100 Base-T, RJ-45), AUX Out (Trig Out, Pass/Fail, DVM), HDMI |
| Certifications | EMC: 2014/30/EU, IEC/EN 61326-1:2021, IEC/EN 61326-2-1:2021, CISPR 11 Sınıf B grup 1; güvenlik: EN 61010-1:2010+A1:2019, EN IEC 61010-2-030:2021+A11:2021, UL 61010-1:2012 Ed.3, UL 61010-2-030:2018 Ed.2, CSA C22.2#61010-1:2012 Ed.3, CSA C22.2#61010-2-030:2018 Ed.2 |
| Power Source | USB Type-C; en az 12 V / 3 A (PD protokollü taşınabilir şarj cihazı desteklenir) |
| Display Size | 7 inç 1024 × 600 kapasitif çok noktalı dokunmatik |
| Product Dimensions | 282 × 175 × 49 mm (G × Y × D) |
| Gram | 1.56 kg |
| Standard Accessories | Güç kablosu, USB 2.0 kablo (UT-D14), 4 adet pasif prob (UT-P04, 100 MHz) |
| Input Impedance | (1 MΩ ± %2) || (17 pF ± 2 pF) |
| Number of Automatic Measurements | 56 parametre; aynı anda 21 parametre gösterimi; istatistik (ortalama, maksimum, minimum, standart sapma, sayı), eğilim grafiği ve çubuk grafik |
| Math and FFT | A+B, A−B, A×B, A÷B, dijital filtre (alçak, yüksek, bant geçiren, bant durduran), özel fonksiyon; FFT en fazla 1 Mpts, 4 kanal (Hanning, Hamming, Rectangle, Blackman), şelale gösterimi |
| Frequency Counter | 6 haneli donanım sayacı (frekans, periyot, toplayıcı) |
| Digital Voltmeter (DVM) | 4 haneli; DC, AC RMS, AC+DC RMS |
| Power Consumption | En fazla 65 W |
| Operating Temperature | 0 – 40 °C (saklama: −20 – 60 °C) |
