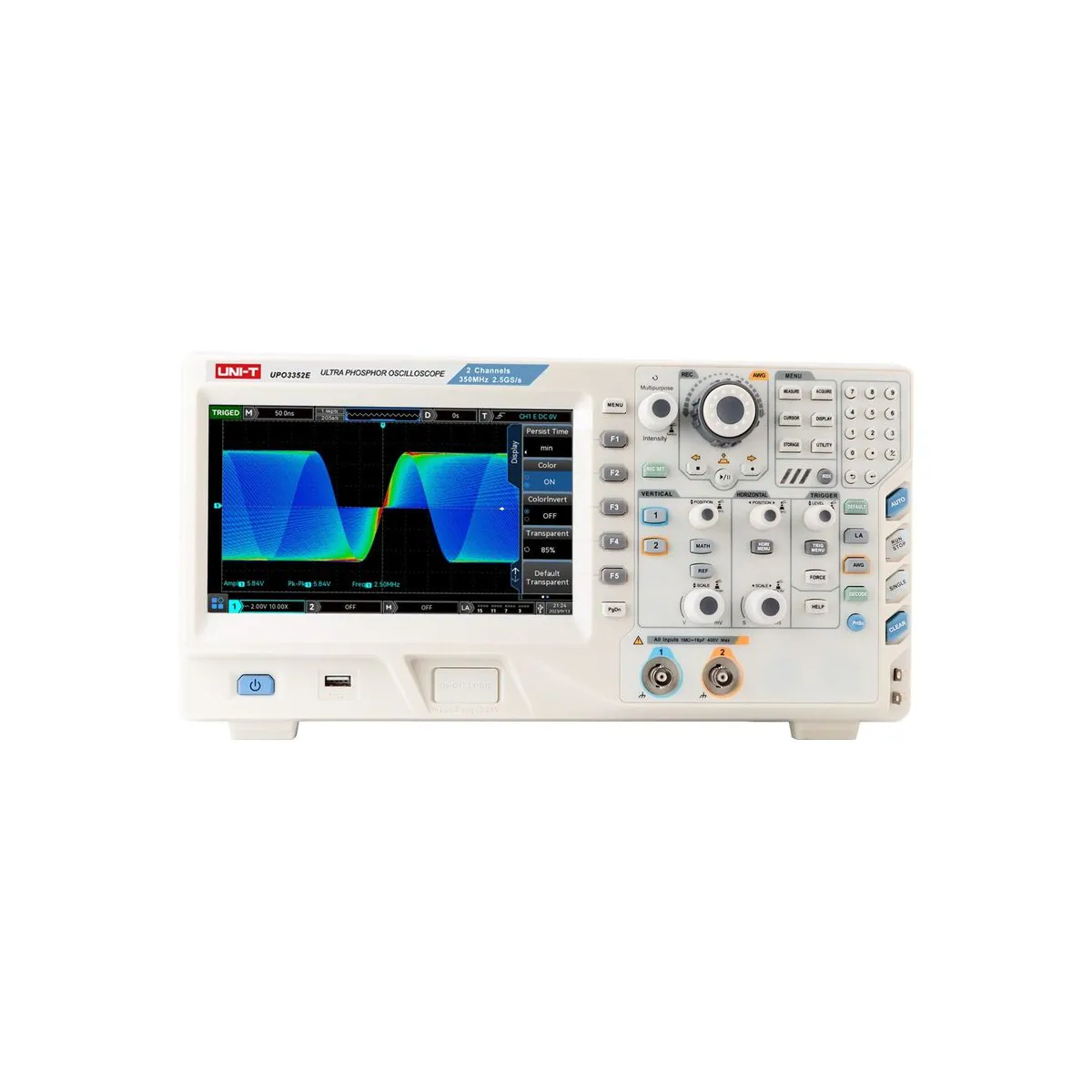

Unit UPO3352E 350MHz 2-Channel Ultra Phosphor Touchscreen Bench Oscilloscope

• Brand: Unit
• SKU: UPO3352E
• MPN: UPO3352E
• Model: 2
• Price: 91363.36 TRY + VAT · incl. VAT 109636.03 TRY
• Availability: Made to order
• Oscilloscopes
• Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards

Unit UPO3352E is a UPO3000E series touchscreen bench oscilloscope with 350 MHz bandwidth, 2.5 GSa/s sample rate and two analog channels. Technical values: bandwidth 350 MHz; 2 analog channels; rise time ≤ 1 ns; sample rate 2.5 GSa/s (half-channel interleaved) and 1.25 GSa/s (all channels); memory depth 70 Mpts per channel and up to 250 Mpts in single-channel mode; vertical resolution 8-bit; vertical scale 1 mV/div to 10 V/div (1 MΩ) and 1 mV/div to 1 V/div (50 Ω); time base 1 ns/div – 1000 s/div; waveform capture rate 200,000 wfms/s (1,000,000 wfms/s in Fast Acquire mode); display 8-inch 800 × 480 capacitive touch screen; power consumption 100 VA; dimensions 370 × 185 × 115 mm, weight 4.5 kg. Fast Acquire technology captures sporadic events such as video, jitter, noise and low-amplitude waves, and the memory depth of up to 250 Mpts keeps the sample rate high on long records. Serial bus triggering and decoding are added through optional licenses. It is used for general design, debugging and test work in communications, automotive electronics, maintenance, R&D and education.
