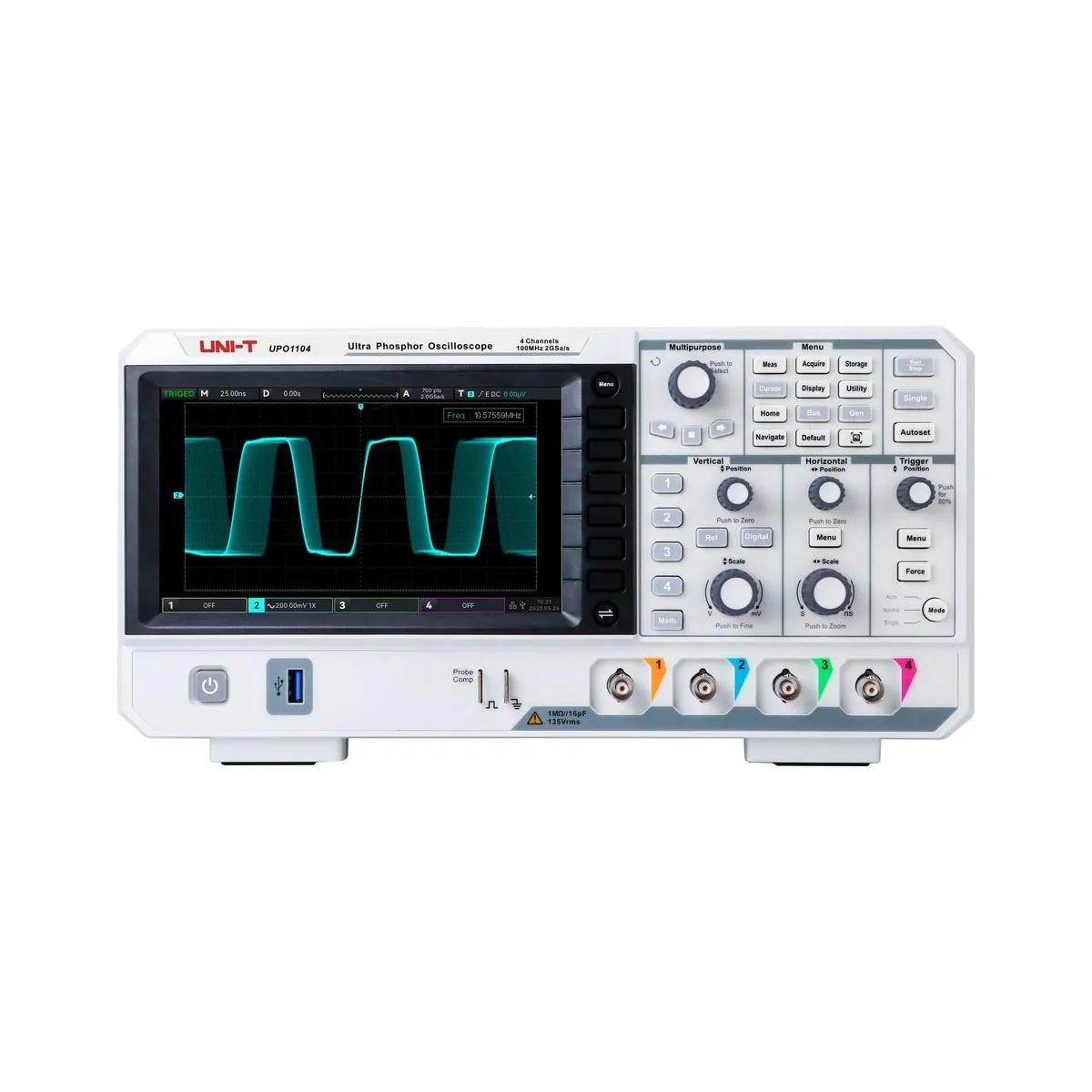

Unit UPO1104 100MHz 4-Channel Ultra Phosphor Bench Oscilloscope
- Brand: Unit
- SKU: UPO1104
- MPN: UPO1104
- Model: 100 MHz
- Price: 31977.18 TRY + VAT · incl. VAT 38372.62 TRY
- Availability: Made to order
- Oscilloscopes
- Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards
Unit UPO1104 is a UPO1000 series digital phosphor oscilloscope with 100 MHz bandwidth, four analog channels and a 2 GSa/s real-time sample rate. Technical values: bandwidth 100 MHz; 4 analog channels; rise time ≤ 3.5 ns; sample rate 2 GSa/s with one channel, 1 GSa/s with two channels and 500 MSa/s with four channels; memory depth up to 56 Mpts; vertical resolution 8-bit; vertical scale 500 µV/div to 20 V/div; time base 1 ns/div – 1000 s/div; waveform capture rate 150,000 wfms/s (500,000 wfms/s in Fast Acquire mode); display 7-inch 800 × 480 TFT LCD; power consumption up to 75 W; dimensions 336 × 170 × 110 mm, weight 2.45 kg. With 56 Mpts memory and a 150,000 wfms/s capture rate it catches sporadic signal events, and it decodes RS232/UART, I2C and SPI buses in hardware over the full memory. It is used in communications, semiconductor, computer, IC design, industrial and automotive electronics, field maintenance, R&D and education.
| Bandwidth | 100 MHz |
|---|---|
| Analog Channels | 4 |
| Sampling Rate | 2 GSa/s (1 kanal), 1 GSa/s (2 kanal), 500 MSa/s (4 kanal); gerçek zamanlı örnekleme |
| Memory Depth | En fazla 56 Mpts |
| Rise Time | ≤ 3.5 ns (1 mV/div ve 2 mV/div'de tipik 2 ns) |
| Waveform Capture Rate | 150,000 wfms/s; Fast Acquire modunda 500,000 wfms/s |
| Vertical Resolution | 8 bit |
| Vertical Scale | 500 µV/div – 20 V/div |
| Time Base | 1 ns/div – 1000 s/div |
| Maximum Input Voltage | 135 Vrms |
| Trigger Types | Kenar, darbe genişliği, video, eğim, runt, pencere, N. kenar, gecikme, zaman aşımı, süre, kurulum ve tutma, kod deseni |
| Serial Bus Trigger/Decode | RS232/UART, I2C, SPI (standart); 1 çözümleme; tam bellek donanım gerçek zamanlı çözümleme |
| Additional Functions | Ultra Phosphor 2.0 ile 256 gri seviyeli ekran; Fast Acquire; 120,000 kareye kadar donanım gerçek zamanlı dalga kaydı ve oynatma; dalga gezinme (zaman, işaretçi, segment); imleç alanında ölçüm; dosya yönetimi; dahili web sunucu ile uzaktan kontrol |
| Interfaces | USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM) |
| Certifications | EMC: 2014/30/EU, IEC/EN 61326-1:2021, IEC/EN 61326-2-1:2021, CISPR 11 Sınıf B grup 1; güvenlik: EN 61010-1:2010+A1:2019, EN IEC 61010-2-030:2021+A11:2021, BS EN 61010-1:2010+A1:2019, BS EN IEC 61010-2-030:2021+A11:2021, UL 61010-1:2012 Ed.3, UL 61010-2-030:2018 Ed.2, CSA C22.2#61010-1:2012 Ed.3, CSA C22.2#61010-2-030:2018 Ed.2 |
| Power Source | 100 – 240 V AC (±%10), 50/60 Hz; 100 – 120 V AC (±%10), 400 Hz |
| Display Size | 7 inç 800 × 480 TFT LCD |
| Product Dimensions | 336 × 170 × 110 mm (G × Y × D) |
| Gram | 2.45 kg |
| Standard Accessories | Güç kablosu, USB veri kablosu (UT-D14), 4 adet pasif prob (UT-P04, 100 MHz) |
| Input Impedance | (1 MΩ ± %2) || (16 pF ± 2 pF) |
| Number of Automatic Measurements | 36 parametre; aynı anda 5 parametre gösterimi; istatistik (ortalama, maksimum, minimum, standart sapma, sayı); XY ölçümü |
| Math and FFT | A+B, A−B, A×B, A/B, FFT, düzenlenebilir ileri işlemler (Log, Exp, Sin, Cos, Tan, Sqrt), mantık işlemleri, dijital filtre; FFT en fazla 1 M nokta (Hanning, Hamming, Rectangle, Blackman, FlatTop); bölünmüş ekran, tam ekran, bağımsız ve iki şelale gösterimi |
| Frequency Counter | 7 haneli donanım frekans sayacı |
| Digital Voltmeter (DVM) | Bağımsız DVM modülü (sınır dışı uyarı sesi) |
| Power Consumption | En fazla 75 W |
| Operating Temperature | 0 – 40 °C (saklama: −20 – 70 °C) |
