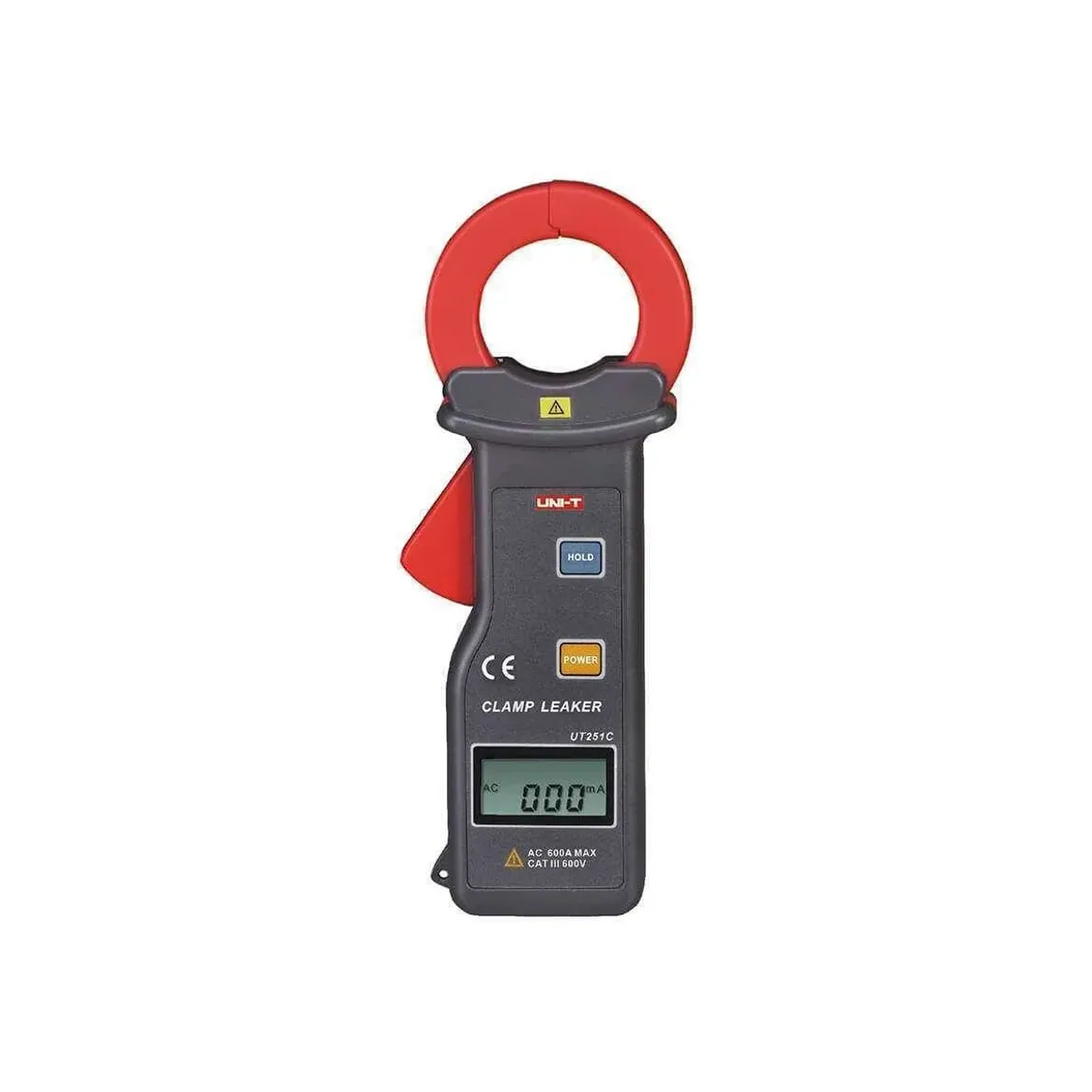

Unit UT 251C High-Sensitivity Leakage Current Clamp Meter
- Brand: Unit
- SKU: UT251C
- MPN: UT251C
- Price: 6852.25 TRY + VAT · incl. VAT 8222.70 TRY
- Availability: Made to order
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT 251C High-Sensitivity Leakage Current Clamp Meter, a clamp meter model from the UNI-T UT251 series. Measurement functions: leakage current. Memory: 99 records. Jaw size 35 mm × 40 mm. Other features: RS-232 interface, peak and data hold, overload protection, auto power off (5 min), out-of-range (OL) indicator. Power source: 9 V battery (6F22). Box contents: battery, RS-232 interface cable, PC software CD.
| Gram | 120 g |
|---|---|
| Overload Protection | OL |
| Low Battery Indication | ≤7,2 V |
| Additional Functions | RS-232 arayüzü, tepe değer ve veri tutma, aşırı load koruması, otomatik kapanma (5 min), aralık aşımı (OL) göstergesi |
| Display | 4 haneli LCD |
| Display Size | 32 mm × 15 mm |
| Power Source | 9 V pil (6F22) |
| Memory | 99 kayıt |
| Range Selection | Otomatik |
| Leakage Current Resolution | 1 mA |
| Leakage Current Measurement | 0,001 mA – 60 A · ±(%1,5+5); 60 A – 199,9 A · ±(%2+5); 200 A – 300 A · ±(%3+5); 300 A – 600 A · ±(%4+5) |
| Auto Power Off | 5 dakika |
| RS-232 | Available |
| Standard Accessories | Pil, RS-232 arayüz kablosu, PC yazılım CD'si |
| Test Mode | Akım trafolu pens, integral mod |
| Data and Peak Hold | Available |
| Jaw Size | 35 mm × 40 mm |
| Measuring Mode | Pens CT, entegral mod |
| Product Dimensions | 175 mm × 70 mm × 38 mm |
