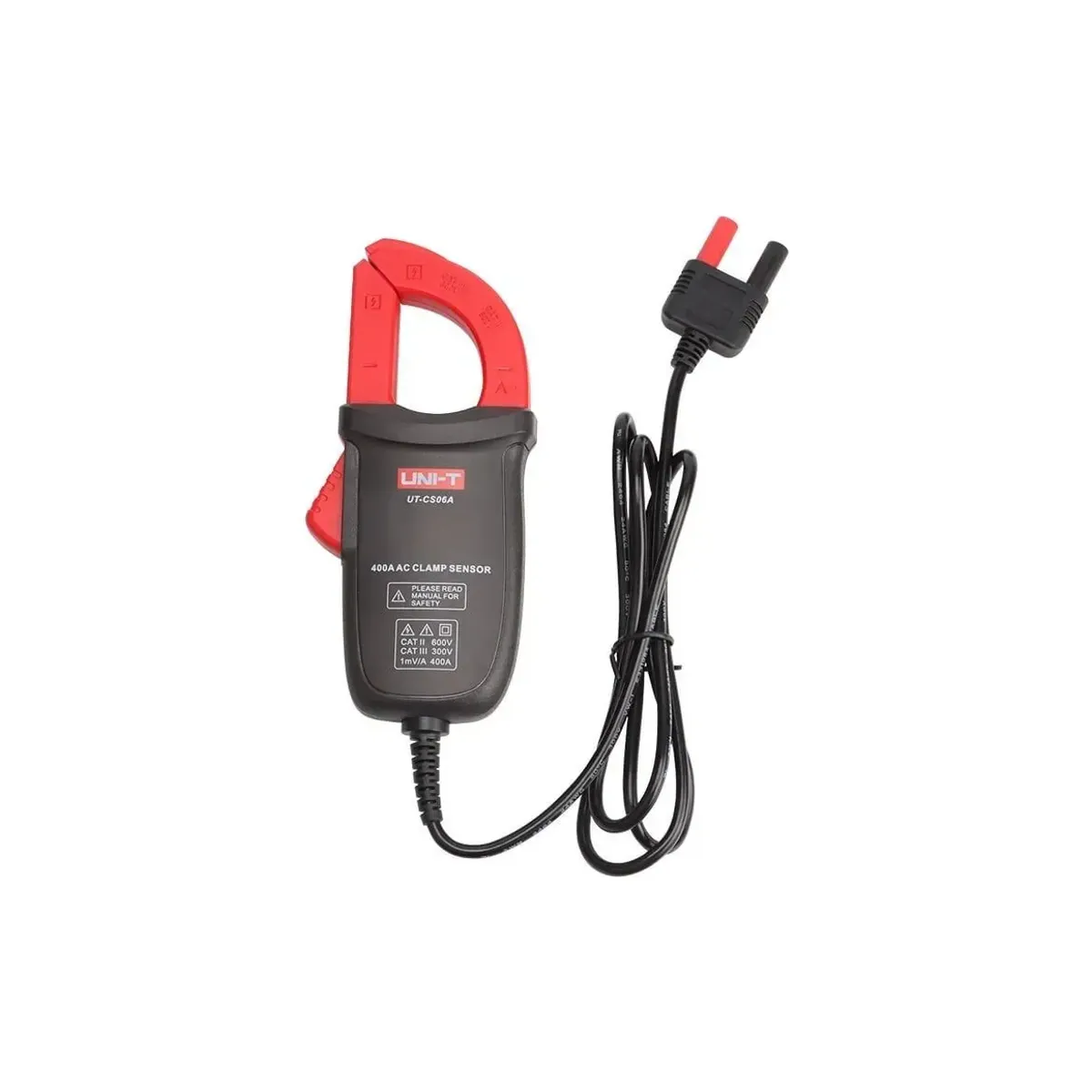

Unit UT-CS06A 400A AC Current Clamp Sensor
- Brand: Unit
- SKU: UT-CS06A
- MPN: UT-CS06A
- Price: 776.59 TRY + VAT · incl. VAT 931.91 TRY
- Availability: Out of stock
- Measuring Instrument Accessories
- Selection guide: Measuring Instrument Accessories Selection Guide: Technical Criteria & Application Standards
Unit UT-CS06A 400A AC Current Clamp Sensor. AC Current Measurement: 1-400A. Cable Length: 1.1m. Product Dimensions: 158*65*33mm. Accuracy: ±2.5%±0.5A@50-60Hz ±2.8%±0.5A@60-400Hz; varies depending on the connected multimeter. Jaw Opening: 28mm. Output Ratio: 1mV/A. True RMS: Varies depending on the connected multimeter. Response Time: Varies depending on the connected multimeter. Frequency Measurement: 50 Hz~400 Hz. Waveform Display: Compatible with oscilloscope. Other features: Power Source: No battery required; Drop Resistance: 1m; Safety Category: CAT III 300V, CAT II 600V.
| AC Current Measurement | 1–400 A |
|---|---|
| Waveform Display | Osiloskop ile uyumlu |
| Accuracy | ±2.5%±0.5A@50-60Hz ±2.8%±0.5A@60-400Hz; Bağlı multimetreye göre değişir |
| Drop Resistance | 1 m |
| Frequency Measurement | 50 Hz~400 Hz |
| Safety Category | CAT III 300V, CAT II 600V |
| Power Source | Pil gerekmez |
| Cable Length | 1.1 m |
| Response Time | Bağlı multimetreye göre değişir |
| True RMS | Bağlı multimetreye göre değişir |
| Jaw Opening | 28 mm |
| Output Ratio | 1mV/A |
| Product Dimensions | 158*65*33mm |
