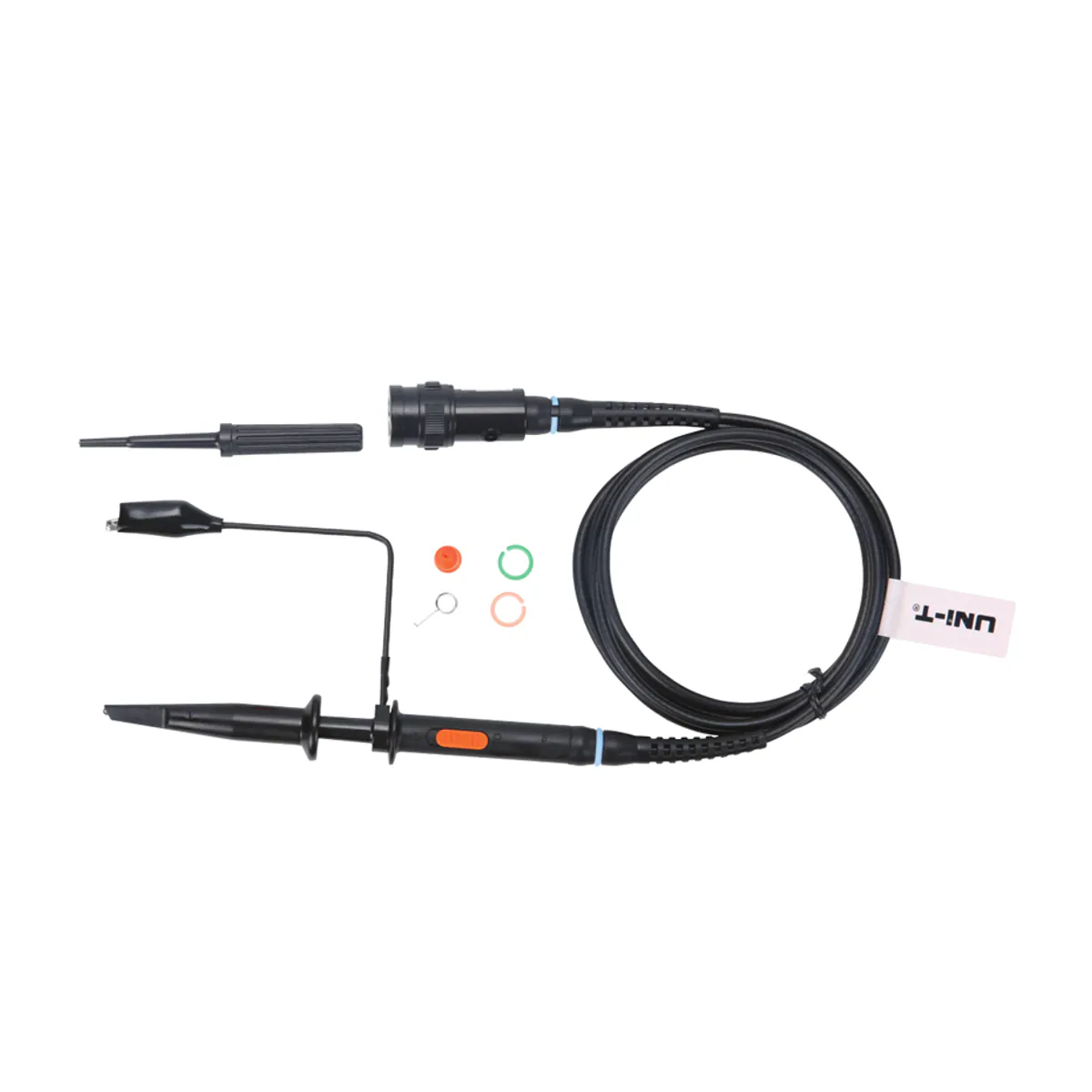

Unit UT-P01 25 MHz 1:1 / 10:1 Passive Oscilloscope Probe
- Brand: Unit
- SKU: UT-P01
- MPN: UT-P01
- Price: 571.02 TRY + VAT · incl. VAT 685.22 TRY
- Availability: Made to order
- Measuring Instrument Accessories
- Selection guide: Measuring Instrument Accessories Selection Guide: Technical Criteria & Application Standards
Unit UT-P01 is the 25 MHz model of the UT-P00 series, a passive oscilloscope probe with 1X and 10X positions. System bandwidth is 25 MHz in the 10:1 position and 6 MHz in the 1:1 position. Input resistance is 1 MΩ / 10 MΩ, input capacitance is 85–115 pF at 1:1 and 14.5–17.5 pF at 10:1, and the compensation range is 5–30 pF at 10:1. The maximum working voltage is <200 V peak at 1:1 and <600 V peak at 10:1; safety is IEC 61010 CAT II (150 V AC at 1:1, 300 V AC at 10:1). The cable length is 130 cm ±1.5 cm and the net weight is <55 g. The operating temperature is -10°C – 50°C and the relative humidity is <85%. The probe is used with the UTD2000CL/CL+ oscilloscope series; the connected oscilloscope must have a 1 MΩ input impedance.
| Gram | <55 g |
|---|---|
| Bandwidth | 1:1 6 MHz; 10:1 25 MHz |
| Input Resistance | 1:1 1 MΩ; 10:1 10 MΩ |
| Input Capacitance | 1:1 85–115 pF; 10:1 14.5–17.5 pF |
| Safety Category | IEC 61010 CAT II; 1:1 150 V AC, 10:1 300 V AC |
| Cable Length | 130 cm ±1.5 cm |
| Compensation Range | 10:1 5–30 pF |
| Connector | BNC |
| Maximum Input Voltage | 1:1 <200 V tepe; 10:1 <600 V tepe |
| Attenuation Ratio | 1:1 / 10:1 |
| Operating Humidity | <85% RH |
| Operating Temperature | -10°C – 50°C |
| Compatible Models | UTD2000CL / UTD2000CL+ |
