Unit UT-P40 60A DC–100 kHz 50 mV/A / 5 mV/A AC/DC Oscilloscope Current Probe

Unit UT-P40 60A DC–100 kHz 50 mV/A / 5 mV/A AC/DC Oscilloscope Current Probe

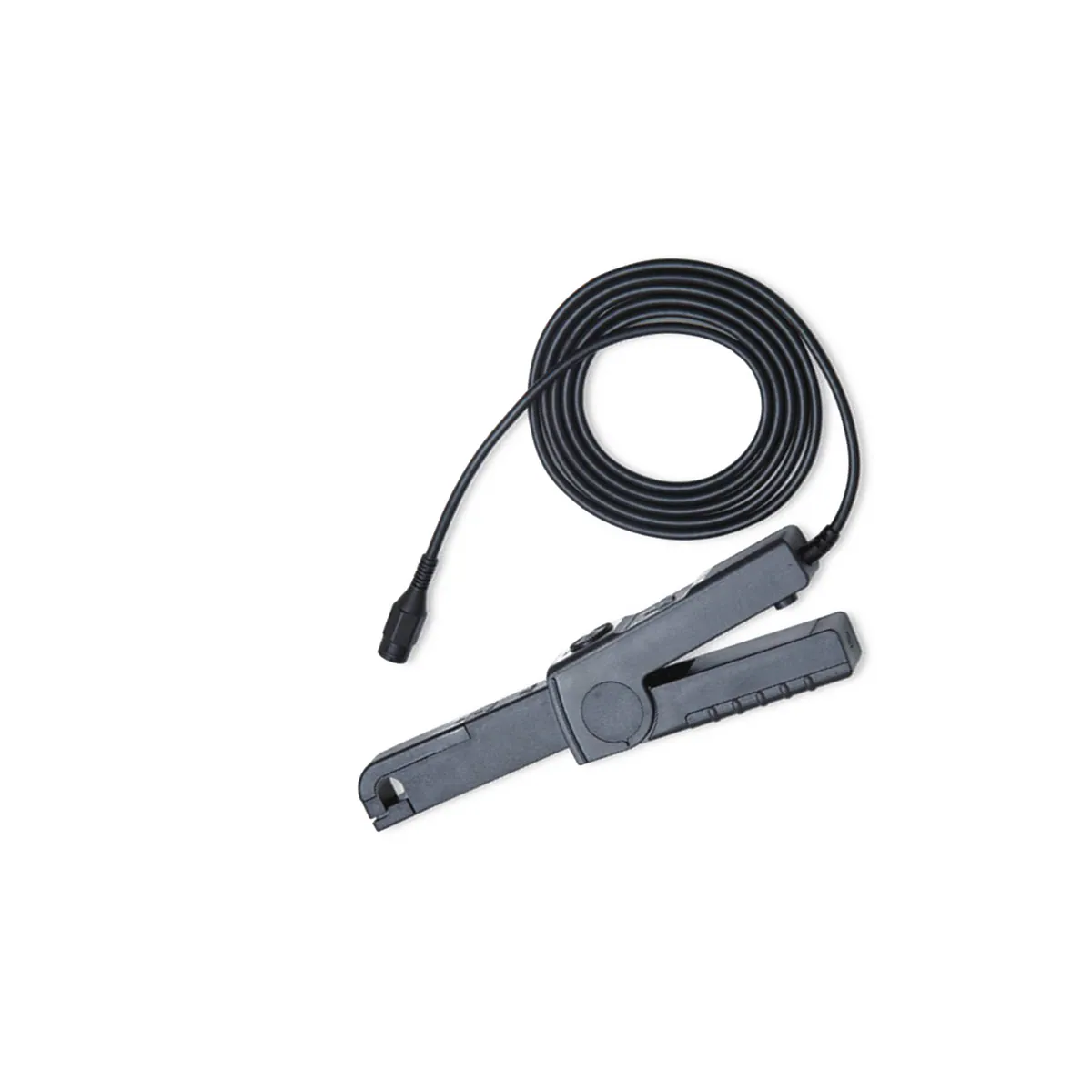

Unit UT-P40 is a clamp-type current probe that lets a general-purpose oscilloscope display AC and DC current signals. The output ratios are 50 mV/A and 5 mV/A, the current range is 0.4–60 A, the frequency range is DC – 100 kHz (-3 dB) and the working voltage is 600 V. Typical DC accuracy is ±2% ±0.4 A on the 50 mV/A range (0.4–10 A peak-to-peak) and ±2% ±1 A on the 5 mV/A range (1–60 A peak-to-peak). Typical rise time is 2.5 µs and maximum noise is 2 mV peak-to-peak. The probe runs on a 9 V battery and accepts conductors up to 10.3 mm. The cable length is 200 cm, the dimensions are 231 × 67 × 36 mm and the weight is 310 g without the battery. The probe must not be clamped onto circuits above 600 V AC.

Output Ratio50 mV/A ve 5 mV/A
Current Range0.4–60 A
Frequency RangeDC – 100 kHz (-3 dB)
Noise Level2 mV tepe-tepe (azami)
Maximum Operating Voltage600 V V
Battery Type9 V pil
Cable Length200 cm
ConnectorBNC
Product Dimensions231 × 67 × 36 mm
Gram310 g (pil hariç)
Operating Temperature0°C – 50°C
Operating Humidity0–40°C: %95 RH; 40–50°C: %45 RH
Maximum Current60 A
AccuracyTipik DC: 50 mV/A kademesinde ±2% ±0.4 A (0.4–10 A tepe-tepe); 5 mV/A kademesinde ±2% ±1 A (1–60 A tepe-tepe)
Rise Time2.5 µs (tipik)
Jaw Opening10.3 mm (maksimum iletken çapı)
Storage Temperature-20°C – 80°C
Pollution Degree2
