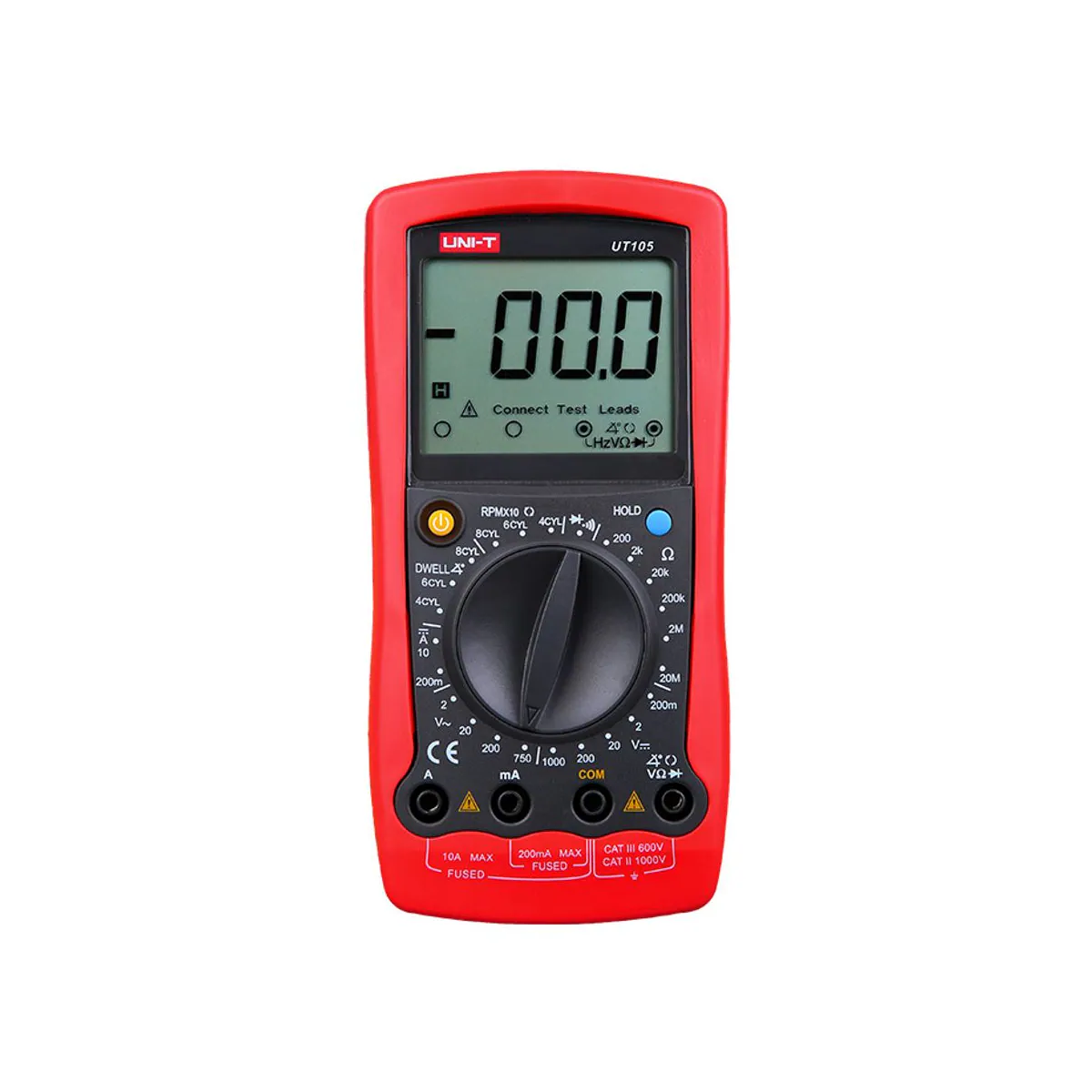

Unit UT105 2000-Count Automotive Multimeter
- Brand: Unit
- SKU: UT105
- MPN: UT105
- Price: 1256.25 TRY + VAT · incl. VAT 1507.50 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT105 is the automotive multimeter of the UNI-T UT100 series; it has a 2000-count display and manual range selection. DC voltage is measured in 200 mV to 200 V ranges with ±(0.5%+5) accuracy and in the 1000 V range with ±(0.8%+5); AC voltage is measured in 2 V to 200 V ranges with ±(0.8%+5) and in the 750 V range with ±(1.0%+4). DC current is specified at ±(0.8%+5) in the 200 mA range and ±(1.2%+5) in the 10 A range; resistance is measured from 200 Ω to 2 MΩ at ±(0.8%+5) and in the 20 MΩ range at ±(1.5%+5). Dwell/tach measurement for 4, 6 and 8 cylinder engines is provided with ±(3%+5) accuracy. It offers a diode test, an audible continuity test, data hold, a low battery indicator and input protection, and its safety rating is CAT II 1000 V / CAT III 600 V. The UT100 series is designed for automotive diagnosis on fuses, switches, solenoids, relays, charging systems, fuel systems and engine sensors.
| AC Voltage Measurement | 2 V / 20 V / 200 V · ±(0.8%+5); 750 V · ±(1.0%+4) |
|---|---|
| Gram | 351 g (kılıf dahil) |
| DC Current Measurement | 200 mA · ±(0.8%+5); 10 A · ±(1.2%+5) (10 A kademesinde sürekli ölçüm en fazla 10 s, iki ölçüm arası en az 15 min) |
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V · ±(0.5%+5); 1000 V · ±(0.8%+5) |
| RPM Measurement | 4CYL / 6CYL / 8CYL · ±(3%+5); çözünürlük 10 RPM; en fazla 10000 RPM (ekrandaki değer × 10) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ · ±(0.8%+5); 20 MΩ · ±(1.5%+5) |
| Low Battery Indication | Available |
| Display Count | 2000 |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | 9 V pil (6F22) |
| Range Selection | Manuel |
| Dwell Angle Measurement | 4CYL / 6CYL / 8CYL · ±(3%+5); çözünürlük 0.1° |
| Standard Accessories | Pil, test probları (1 çift), timsah klips (1 çift), kılıf, İngilizce kılavuz |
| Data Hold | Available |
| Product Dimensions | 179 mm × 88 mm × 39 mm |
| DCV Input Impedance | Yaklaşık 10 MΩ |
| Display Size | 60 mm × 54 mm |
| Diode Test | Var (açık devre gerilimi yaklaşık 2.7 V; çözünürlük 1 mV) |
| Continuity Test | Var (buzzer; 30 Ω'da sürekli öter, 50 Ω üzerinde ötmez; çözünürlük 1 Ω) |
| Input Protection | Gerilim: 1000 V DC veya 750 V AC sürekli (200 mV kademesi 230 V AC); direnç, diyot, süreklilik, dwell ve devir: 600 Vp |
| Color | Kırmızı ve gri |
| Fuse | mA girişi 315 mA 250 V hızlı tip; 10 A girişi 10 A 250 V hızlı tip (Ø5 × 20 mm) |
| AC Bandwidth | 40–400 Hz |
| Sampling Rate | 2–3 ölçüm/s |
| Pollution Degree | 2 |
| Standards | IEC 61010; çift yalıtım |
| Accuracy Environment | 18–28 °C; ≤75% bağıl nem (doğruluk garantisi 1 yıl) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -10–50 °C |
| Operating Humidity | ≤75% (0–30 °C); ≤50% (30–40 °C) |
| Operating Altitude | ≤2000 m (depolamada ≤10000 m) |
