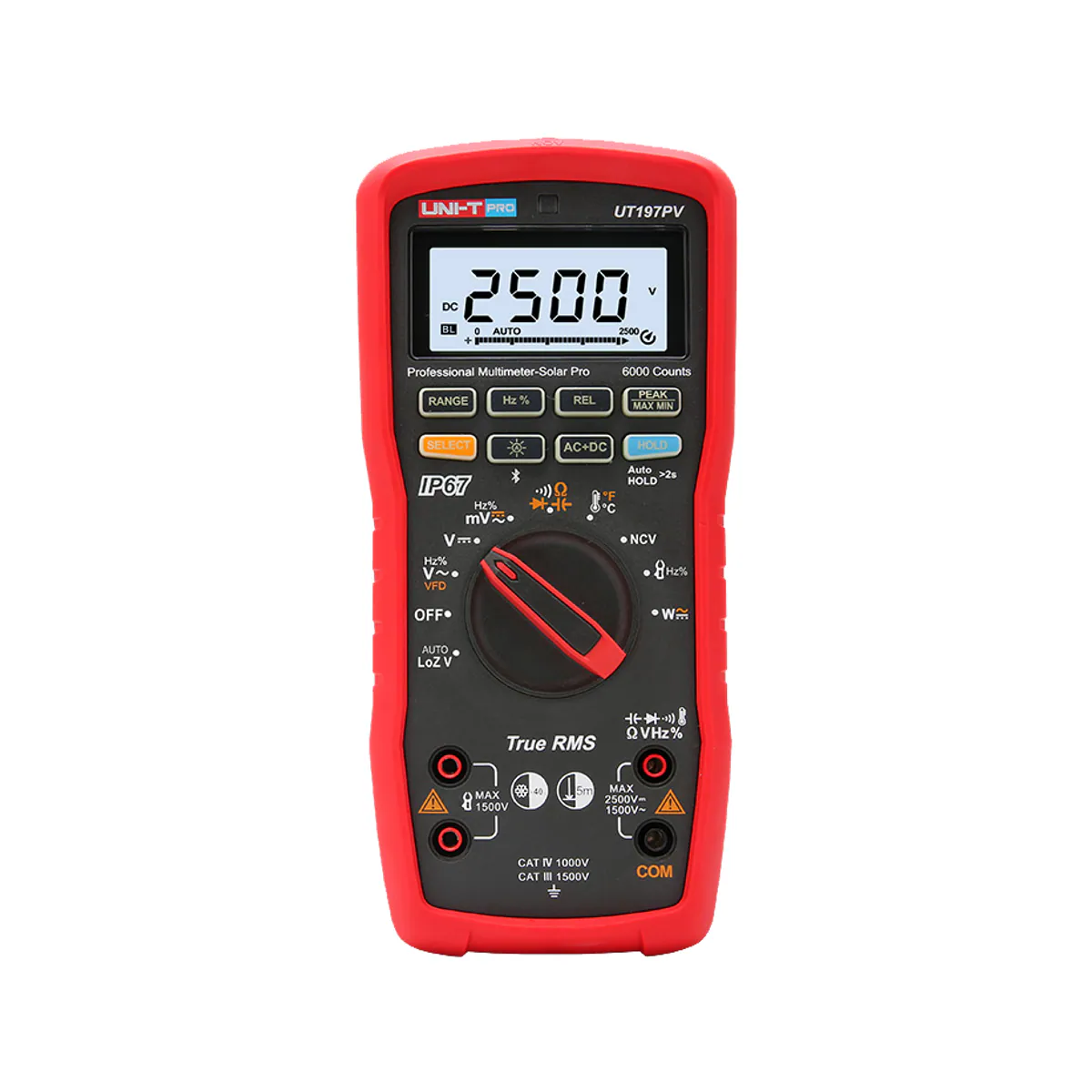

Unit UT197PV 2500 V DC 1500 V AC 6000 Count True RMS Solar Pro Multimeter, IP67
- Brand: Unit
- SKU: UT197PV
- MPN: UT197PV
- Price: 18957.90 TRY + VAT · incl. VAT 22749.48 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT197PV is a 6000 count True RMS professional solar multimeter with IP67 protection that measures up to DC 2500 V and AC 1500 V and offers VFD output and power measurement. DC voltage is measured at 600.0 mV ±(0.3%+5), 6.000 V – 600.0 V ±(0.2%+5) and 2500 V ±(1.0%+5); AC voltage spans 600.00 mV – 1500 V at 45 Hz – 1 kHz. It provides auto LoZ, VFD (ACV) and ACV+DCV measurement, resistance (up to 60 MΩ), capacitance (up to 60 mF), frequency (up to 999.9 kHz), duty cycle and temperature from -40 °C to 1000 °C. With the optional UT-CS07 current clamp it measures 100 A and 1000 A AC/DC current; AC active power is measured up to 150 kW at 100 A and 1500 kW at 1000 A; DC power up to 250 kVA at 100 A and 2500 kVA at 1000 A (as printed in the source). Bluetooth app support is included. It is used in power engineering, HVAC, new energy and environmental protection work in damp, sandy and extremely cold environments. It has 5 m drop resistance, a -40 °C – 55 °C working temperature and CAT IV 1000 V / CAT III 1500 V safety category; it runs on 3 × 1.5 V AA batteries and measures 220 mm × 104 mm × 67 mm.
| Display Count | 6000 |
|---|---|
| True RMS | Available |
| Range Selection | Otomatik |
| DC Voltage Measurement | 600.0 mV · ±(0.3%+5); 6.000 V / 60.00 V / 600.0 V · ±(0.2%+5); 2500 V · ±(1.0%+5) |
| AC Voltage Measurement | 600.00 mV / 6.000 V / 60.00 V / 600.0 V / 1500 V · 45 Hz – 1 kHz · ≥45 Hz ve <500 Hz: ±(0.8%+3); ≥500 Hz ve <1 kHz: ±(1.8%+3) |
| AC+DC Voltage Measurement | 600.00 mV / 6.000 V / 60.00 V / 600.0 V / 1500 V · ≥45 Hz ve <500 Hz: ±(1.5%+5); ≥500 Hz ve <1 kHz: ±(2.5%+5) |
| LoZ Voltage Measurement | Otomatik LoZ · 45 Hz – 400 Hz · 600.0 V: ±(1.5%+5); 1500 V: ±(1.8%+5) |
| VFD Voltage Measurement | 600.0 V / 1500 V · 45 Hz – 200 Hz · ±(2.0%+5) |
| Resistance Measurement | 600.0 Ω · ±(0.8%+5); 6.000 kΩ / 60.00 kΩ / 600.0 kΩ / 6.000 MΩ · ±(0.5%+5); 60.00 MΩ · ±(2.5%+5) |
| Capacitance Measurement | 60.00 nF · ±3.0%; 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF · ±(3.0%+5); 6.000 mF / 60.00 mF · ±(10.0%+5) |
| Frequency Measurement | 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz · ±(0.02%+5) |
| Duty Cycle Measurement | 10 Hz – 10 kHz (10% – 90%) · ±(2.0%+30) |
| Temperature Measurement | -40 °C – 1000 °C · ±(1.0%+30); -40 °F – 1832 °F · ±(1.0%+60) |
| Power Measurement | AC güç 100 A (10 mV/A): aktif 60.00 kW / 150.0 kW ±(3.0%+5), görünür 60.00 kVA / 150.0 kVA ±(2.0%+5), reaktif 60.00 kVAr / 150.0 kVAr ±(5.0%+5); AC güç 1000 A (1 mV/A): aktif 600.0 kW / 1500 kW ±(3.0%+5), görünür 600.0 kVA / 1500 kVA ±(2.0%+5), reaktif 600.0 kVAr / 1500 kVAr ±(5.0%+5); DC güç 100 A (10 mV/A): 60.00 kVA / 250.0 kVA ±(3.0%+5); DC güç 1000 A (1 mV/A): 60.00 kVA / 2500 kVA ±(3.0%+5) |
| Power Factor Measurement | -1 – 1 |
| Diode Test | 3.2 V · ±(1.0%+5) |
| Continuity Test | 600.0 Ω · ±(1.0%+5) |
| External Current Clamp Input | UT-CS07 (opsiyonel): DC 100 A (10 mV/A) ve 1000 A (1 mV/A) · ±(0.8%+5); AC 45 Hz – 400 Hz 100 A (10 mV/A) ve 1000 A (1 mV/A) · ±(1.0%+5) |
| Analog Bar Graph | 33 segment |
| Additional Functions | REL, PEAK (250 µs'ye kadar kısa geçişleri yakalama), MAX/MIN, yüksek gerilim alarmı, yüksek gerilim aşırı aralık alarmı, çok işlevli koruma, otomatik arka ışık, uygulama ile test raporu, gerçek zamanlı grafik ve PDF/XLS/JPEG/CSV dışa aktarma |
| Interfaces | Bluetooth (UNI-T Smart Measure uygulaması) |
| Auto Power Off | Available |
| Safety Category | CAT IV 1000 V ve CAT III 1500 V |
| Certifications | CE, cETLus, RoHS |
| Drop Resistance | 5 m |
| IP Rating | IP67 |
| Operating Temperature | -40 °C – 55 °C |
| Power Source | 3 × 1.5 V AA pil |
| Product Dimensions | 220 mm × 104 mm × 67 mm |
| NCV Non-Contact Voltage Detection | Available |
| Data Hold | Available |
| Low Battery Indication | Available |
