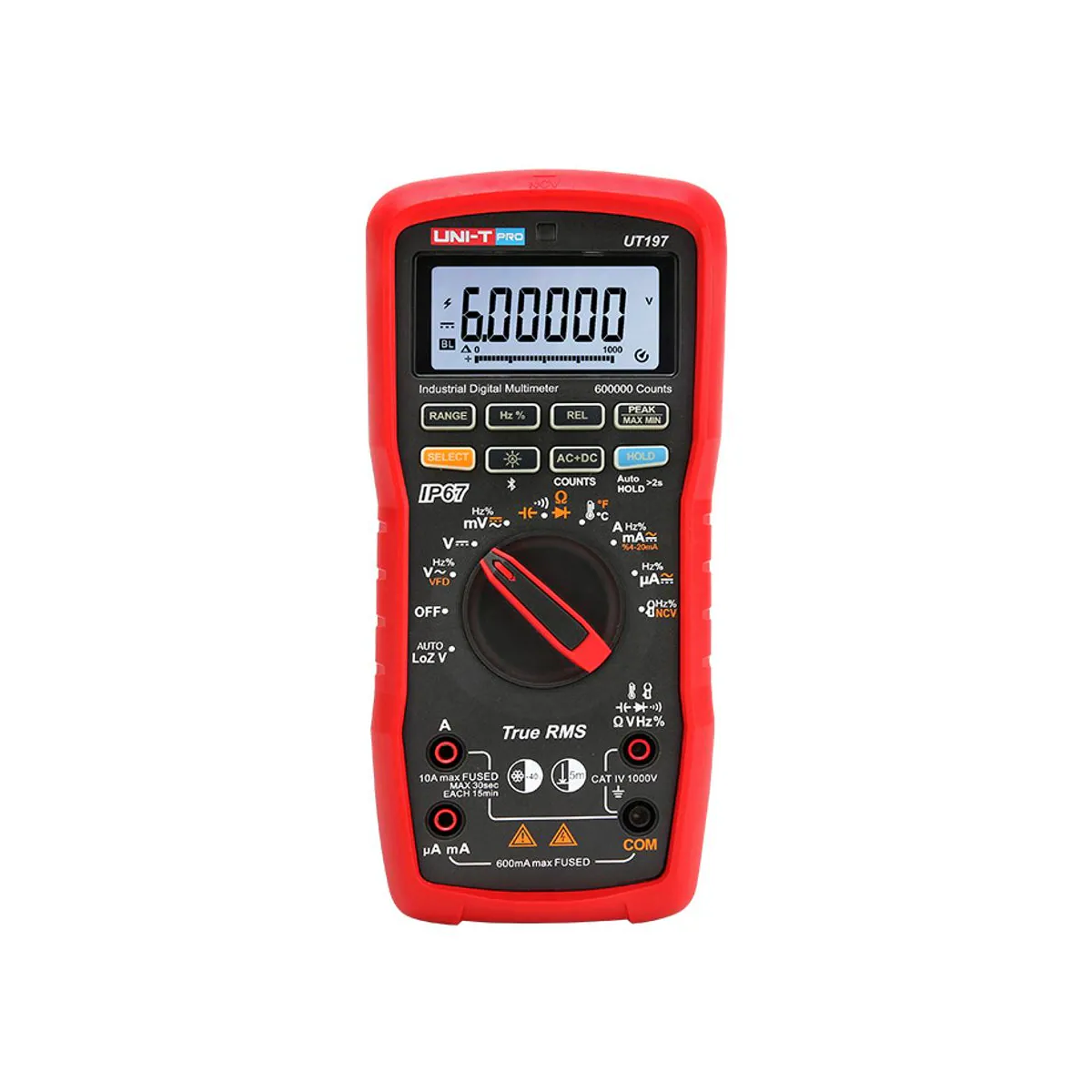

Unit UT197 600000 Count True RMS Industrial Digital Multimeter, IP67 CAT IV 1000 V
- Brand: Unit
- SKU: UT197
- MPN: UT197
- Price: 18957.90 TRY + VAT · incl. VAT 22749.48 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT197 is a handheld True RMS industrial multimeter with a 600000 count display, IP67 protection and 5 m drop resistance that works from -40 °C to 55 °C in harsh outdoor conditions and offers Bluetooth. DC voltage is measured up to 1000 V at ±(0.015%+10) (600000 count) and ±(0.03%+5) (60000 count), AC voltage up to 1000 V at ±(0.3%+20), DC current up to 10 A at ±(0.1%+20) and AC current at ±(0.5%+50); frequency is measured from 10 Hz to 1 MHz, resistance up to 60 MΩ, capacitance up to 60 mF and temperature from -40 °C to 1000 °C. A built-in VFD anti-interference startup mode filters carrier-frequency and distorted-voltage interference in inverter measurements, and it has 12 kV pulse protection and EMC interference immunity. With the optional UT-CS07 current clamp it measures 1000 A AC/DC and records results in the UNI-T mobile app; UT-CS06A and UT-CS09D current sensors are also supported. It is used in power and electrical construction, equipment maintenance, petrochemical, engineering, HVAC, new energy, factory and laboratory applications. It is rated CAT IV 1000 V (CE, cETLus), runs on 2 × 1.5 V AA batteries and weighs about 835 g including batteries.
| Display Count | 600000 (DC gerilim; 60000 sayıma geçirilebilir); frekans 9999 |
|---|---|
| True RMS | Available |
| DC Voltage Measurement | 60000 sayım: 600.00 mV / 6.0000 V / 60.000 V / 600.00 V / 1000.0 V · ±(0.03%+5); 600000 sayım: 600.000 mV / 6.00000 V / 60.0000 V / 600.000 V / 1000.00 V · ±(0.015%+10) |
| AC Voltage Measurement | 600.00 mV / 6.0000 V / 60.000 V / 600.00 V / 1000.0 V · ±(0.3%+20) |
| AC+DC Voltage Measurement | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V · ±(0.8%+5); otomatik AC/DC gerilim: 600.0 V · ±(0.8%+5) |
| DC Current Measurement | 600.00 µA / 6000.0 µA / 60.000 mA / 600.00 mA / 6.0000 A / 10.000 A · ±(0.1%+20) |
| AC Current Measurement | 600.00 µA / 6000.0 µA / 60.000 mA / 600.00 mA / 6.0000 A / 10.000 A · ±(0.5%+50) |
| Resistance Measurement | 600.00 Ω / 6.0000 kΩ / 60.000 kΩ / 600.00 kΩ / 6.0000 MΩ / 60.00 MΩ · ±(0.07%+2) |
| Capacitance Measurement | 60.00 nF / 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF / 6.000 mF / 60.00 mF · ±(0.8%+3) |
| Frequency Measurement | 10 Hz – 1 MHz · ±(0.002%+5) |
| Duty Cycle Measurement | 10 Hz – 10 kHz (10% – 90%) · ±(1.2%+5) |
| Temperature Measurement | -40 °C – 1000 °C · ±(1.0%+15); -40 °F – 1832 °F · ±(1.0%+30) |
| Diode/Continuity Test Voltage | 3.0 V (diyot testi) |
| Continuity Test | Var (sesli) |
| External Current Clamp Input | UT-CS07 (opsiyonel): AC ve DC 100.0 A / 1000 A · ±(1.5%+5); UT-CS06A ve UT-CS09D akım sensörleri desteklenir |
| Additional Functions | Tepe yakalama, MAX/MIN, yüksek gerilim alarmı, hatalı prob bağlantısı alarmı, aşırı aralık göstergesi, giriş terminali görsel alarmı, VFD girişim karşıtı açılış modu, 12 kV darbe koruması ve EMC girişim dayanımı, otomatik arka ışık |
| Interfaces | Bluetooth (UNI-T Smart Measure uygulaması) |
| Auto Power Off | yaklaşık 15 min |
| Safety Category | CAT IV 1000 V |
| Certifications | CE, cETLus, RoHS |
| Drop Resistance | 5 m |
| IP Rating | IP67 |
| Operating Temperature | -40 °C – 55 °C |
| Power Source | 2 × 1.5 V AA pil |
| Product Dimensions | 220 mm × 104 mm × 67 mm |
| Gram | yaklaşık 835 g (pil dahil) |
| Standard Accessories | Test probu, sıcaklık probu, klipsler, piller |
| NCV Non-Contact Voltage Detection | Available |
| Data Hold | Manuel/otomatik |
| Low Battery Indication | Available |
| AC+DC Current Measurement | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A · ±(1.0%+5) |
