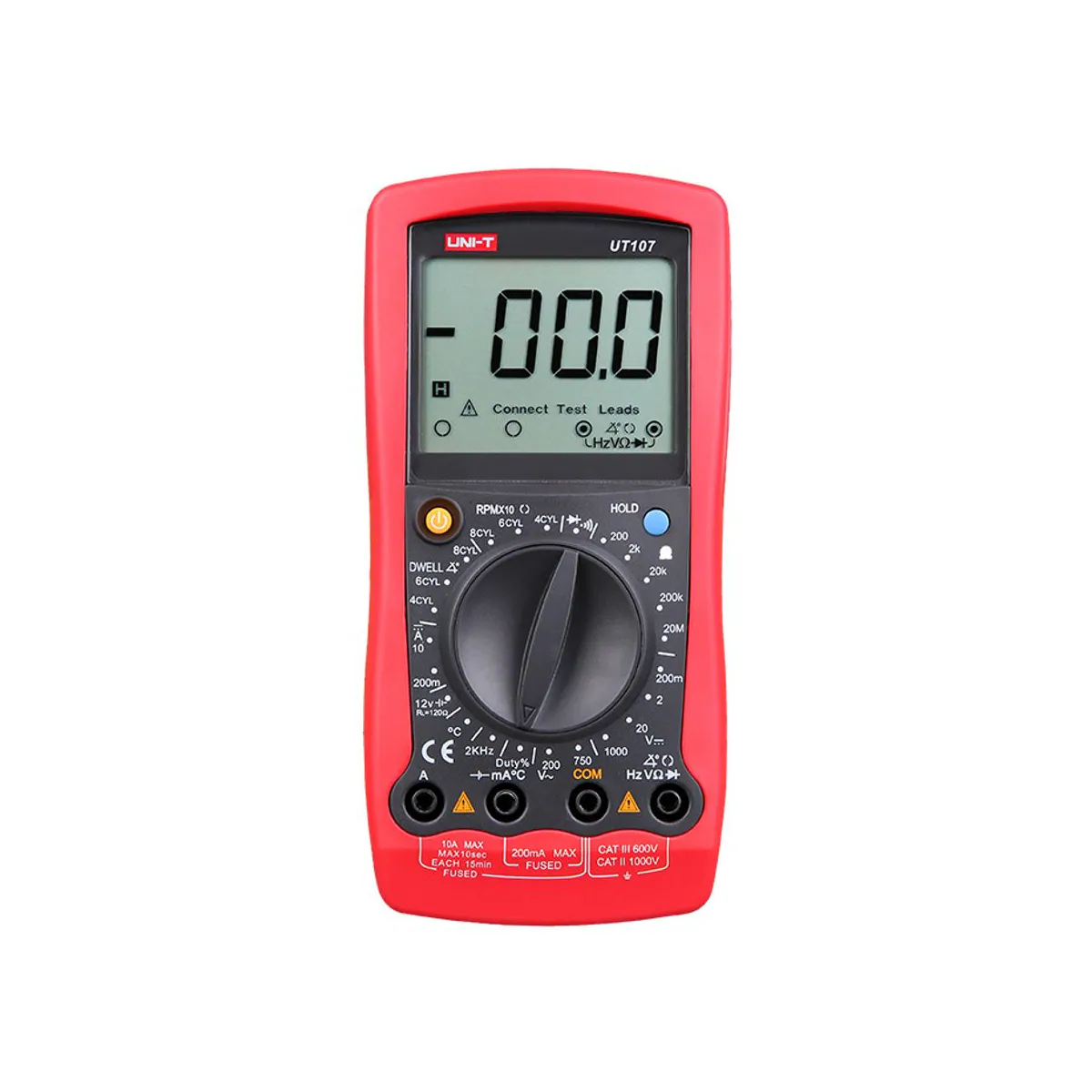

Unit UT107 2000-Count Automotive Multimeter with Temperature and Battery Test
- Brand: Unit
- SKU: UT107
- MPN: UT107
- Price: 1507.50 TRY + VAT · incl. VAT 1809.00 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT107 is the automotive multimeter of the UNI-T UT100 series that also offers 12 V battery test, temperature, frequency and duty cycle measurement; it has a 2000-count display and manual range selection. DC voltage is specified at ±(0.5%+2) in the 200 mV, 2 V and 20 V ranges and ±(0.8%+2) in the 1000 V range, and AC voltage at ±(0.8%+5) in the 200 V and 750 V ranges. DC current is measured at ±(0.8%+5) in the 200 mA range and ±(1.2%+5) in the 10 A range, and resistance at ±(0.8%+5) in the 200 Ω–200 kΩ ranges and ±(1.5%+5) in the 20 MΩ range. Frequency is specified at ±(2%+5) in the 2 kHz range; temperature is measured from -40 °C to 1000 °C (±(1%+7) from 0 °C to 400 °C), the 12 V battery test is specified at ±(3%+5) and duty cycle from 1% to 90% at ±(4%+5); dwell/tach measurement for 4, 6 and 8 cylinder engines is provided at ±(3%+5). It offers a diode test, an audible continuity test, data hold, a low battery indicator and input protection, and a point-contact temperature probe is supplied. Its safety category is CAT II 1000 V / CAT III 600 V. The UT107 is the UT100 series model that also tests temperature and 12 V batteries; it is designed for automotive diagnosis on fuses, switches, solenoids, relays, charging systems, fuel systems and engine sensors.
| 12 V Battery Test | 12 V · ±(3%+5) (20 V kademesi, çözünürlük 10 mV; dahili 120 Ω / 2 W load direnci) |
|---|---|
| AC Voltage Measurement | 200 V / 750 V · ±(0.8%+5) |
| Gram | 351 g (kılıf dahil) |
| DC Current Measurement | 200 mA · ±(0.8%+5); 10 A · ±(1.2%+5) (5–10 A arasında sürekli ölçüm en fazla 10 s, iki ölçüm arası en az 15 min) |
| DC Voltage Measurement | 200 mV / 2 V / 20 V · ±(0.5%+2); 1000 V · ±(0.8%+2) |
| RPM Measurement | 4CYL / 6CYL / 8CYL · ±(3%+5); çözünürlük 10 RPM; en fazla 10000 RPM (ekrandaki değer × 10) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ · ±(0.8%+5); 20 MΩ · ±(1.5%+5) |
| Low Battery Indication | Available |
| Display Count | 2000 |
| Frequency Measurement | 2 kHz · ±(2%+5); çözünürlük 1 Hz; giriş: otomotiv sinyalinde 10 V darbe (≥0.5 ms), normal sinyalde ≥100 mV (100 Hz'de 200 mV) |
| Duty Cycle Measurement | 1–90% · ±(4%+5) (otomotiv sinyali, giriş 10 V); çözünürlük 0.1% |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | 9 V pil (6F22) |
| Range Selection | Manuel |
| Dwell Angle Measurement | 4CYL / 6CYL / 8CYL · ±(3%+5); çözünürlük 0.1° |
| Standard Accessories | Pil, test probları (1 çift), kılıf, nokta temaslı sıcaklık probu, İngilizce kılavuz |
| Temperature Measurement | -40–0 °C · ±(3%+9); 0–400 °C · ±(1%+7); 400–1000 °C · ±(2%+10); çözünürlük 1 °C |
| Data Hold | Available |
| Product Dimensions | 179 mm × 88 mm × 39 mm |
| DCV Input Impedance | Yaklaşık 10 MΩ |
| Display Size | 60 mm × 54 mm |
| Diode Test | Var (açık devre gerilimi yaklaşık 2.7 V; çözünürlük 1 mV) |
| Continuity Test | Var (buzzer; 10 Ω'a kadar sürekli öter, 100 Ω üzerinde ötmez; çözünürlük 1 Ω) |
| Input Protection | Gerilim: 1000 V DC veya 750 V AC sürekli (200 mV kademesi 230 V AC); direnç, diyot, süreklilik, frekans, dwell ve devir: 600 Vp |
| Color | Kırmızı ve gri |
| Fuse | mA ve pil/sıcaklık girişi 315 mA 250 V hızlı tip; 10 A girişi 10 A 250 V hızlı tip (Ø5 × 20 mm) |
| AC Bandwidth | 40–400 Hz |
| Sampling Rate | 2–3 ölçüm/s |
| Pollution Degree | 2 |
| Standards | IEC 61010; çift yalıtım |
| Accuracy Environment | 18–28 °C; ≤75% bağıl nem (doğruluk garantisi 1 yıl) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -10–50 °C |
| Operating Humidity | ≤75% (0–30 °C); ≤50% (30–40 °C) |
| Operating Altitude | ≤2000 m (depolamada ≤10000 m) |
