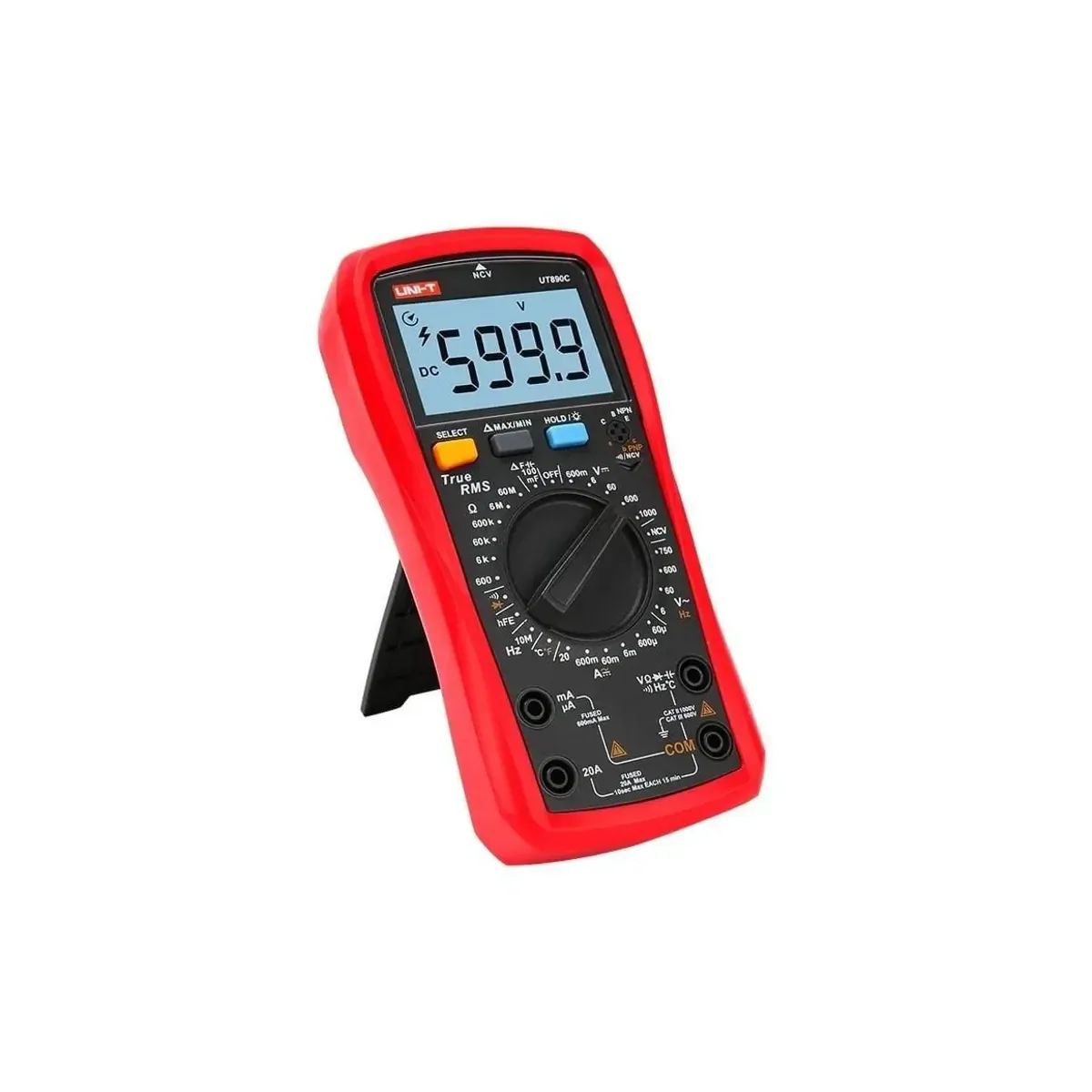

Unit UT890C True-RMS Digital Multimeter Measuring Instrument
- Brand: Unit
- SKU: UT890C
- MPN: UT890C
- Price: 1142.04 TRY + VAT · incl. VAT 1370.45 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT890C is a True RMS digital multimeter with a large LCD display and 6000 counts. Measures 1000 V DC and 750 V AC voltage, AC/DC current up to 20 A, 60 MΩ resistance, capacitance up to 100 mF, frequency up to 9.999 MHz and −40…1000 °C temperature. Gives audible and visual alerts in NCV and continuity tests; includes blown fuse detection, high voltage protection and an overcurrent alarm above 20 A. Has hFE (transistor), diode, REL, MAX/MIN and data hold functions. It is rated CAT II 1000 V / CAT III 600 V and runs on two 1.5 V batteries.
| AC Current Measurement | 60 µA – 20 A · ±(%1+12) |
|---|---|
| AC Voltage Frequency Measurement | 10Hz~10kHz (doğruluk: ±(0.1%+5)) |
| AC Voltage Measurement | 6 V – 750 V · ±(%0,8+3) |
| Current Mode Memory | Available |
| Backlight | 30s |
| Gram | 346 g |
| Relative Measurement | Available |
| DC Current Measurement | 60 µA – 20 A · ±(%0,8+8) |
| DC Voltage Measurement | 600 mV – 1000 V · ±(%0,5+2) |
| Resistance Measurement | 600 Ω – 60 MΩ · ±(%0,8+3) |
| Diode Test | Available |
| Low Battery Indication | ≤2.5V |
| Additional Functions | NCV, hFE, diyot, süreklilik, sigorta atma uyarısı, aşırı akım alarmı (≥20 A), REL, MAX/MIN, veri tutma, arka ışık |
| Display Count | 6000 |
| Frequency Measurement | 9,999 Hz – 9,999 MHz · ±(%1,0+5) |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | 2 × 1,5 V pil |
| Range Selection | Manuel |
| Capacitance Measurement | 6 nF – 100 mF · ±(%3+10) |
| MIN/MAX | V 、A |
| NCV Non-Contact Voltage Detection | Available |
| NCV and Continuity Audible/Visual Indicator | Available |
| Auto Power Off | 15Min |
| Fuse Blown Alarm | Available |
| Continuity Test | Available |
| Temperature Measurement | −40…1000 °C · ±(%1,5+5) |
| Transistor hFE Measurement | Available |
| True RMS | Available |
| Data Hold | Available |
| High Current Alarm | ≥20A |
| Operating Temperature | 0…40 °C |
| Product Dimensions | 183 × 88 × 56 mm |
