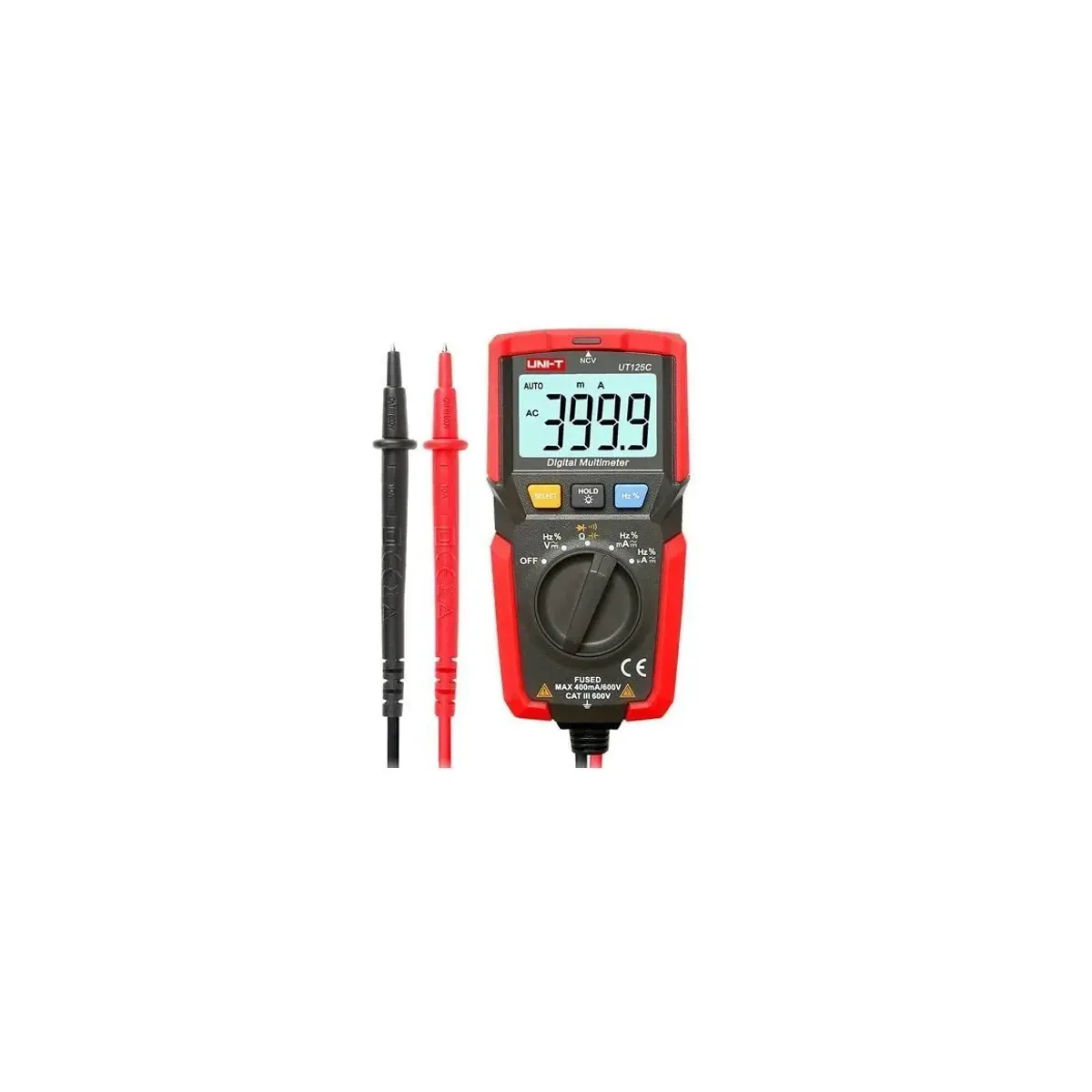

Unit UT125C Pocket Digital Multimeter
- Brand: Unit
- SKU: UT125C
- MPN: UT125C
- Price: 1027.84 TRY + VAT · incl. VAT 1233.41 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT125C Pocket Digital Multimeter, a digital multimeter model manufactured by UNI-T. Measurement functions: DC voltage (600 V), AC voltage (600 V), DC current (400 mA), AC current (400 mA), resistance (40 MΩ), capacitance (100 µF), frequency (10 Hz – 60 kHz), duty cycle (20% – 80%). Other features: NCV non-contact voltage detection, low battery indicator, diode test, audible continuity test, data hold, auto power off. Power source: 2 × 1.5 V battery (R03). Box contents: batteries.
| AC Current Measurement | 400 mA · ±(%2+8) |
|---|---|
| AC Voltage Measurement | 600 V · ±(%1,2+5) |
| Gram | 180 g |
| DC Current Measurement | 400 mA · ±(%1,8+5) |
| DC Voltage Measurement | 600 V · ±(%0,5+5) |
| Resistance Measurement | 40 MΩ · ±(%1+5) |
| Diode and Continuity Test | Available |
| Low Battery Indication | Available |
| Additional Functions | NCV temassız gerilim algılama, düşük pil göstergesi, diyot testi, sesli süreklilik testi, veri tutma, otomatik kapanma |
| Display Size | 38 mm × 23 mm |
| Frequency Measurement | 10 Hz – 60 kHz · ±(%0,1+5) |
| Duty Cycle Measurement | %20 – %80 |
| Power Source | 2 × 1,5 V pil (R03) |
| Capacitance Measurement | 100 µF · ±(%4+10) |
| NCV Non-Contact Voltage Detection | Available |
| Standard Accessories | Piller |
| Data Hold and Auto Power Off | Available |
| Operating Temperature | 0 °C – 50 °C |
| Product Dimensions | 112 mm × 58 mm × 35 mm |
