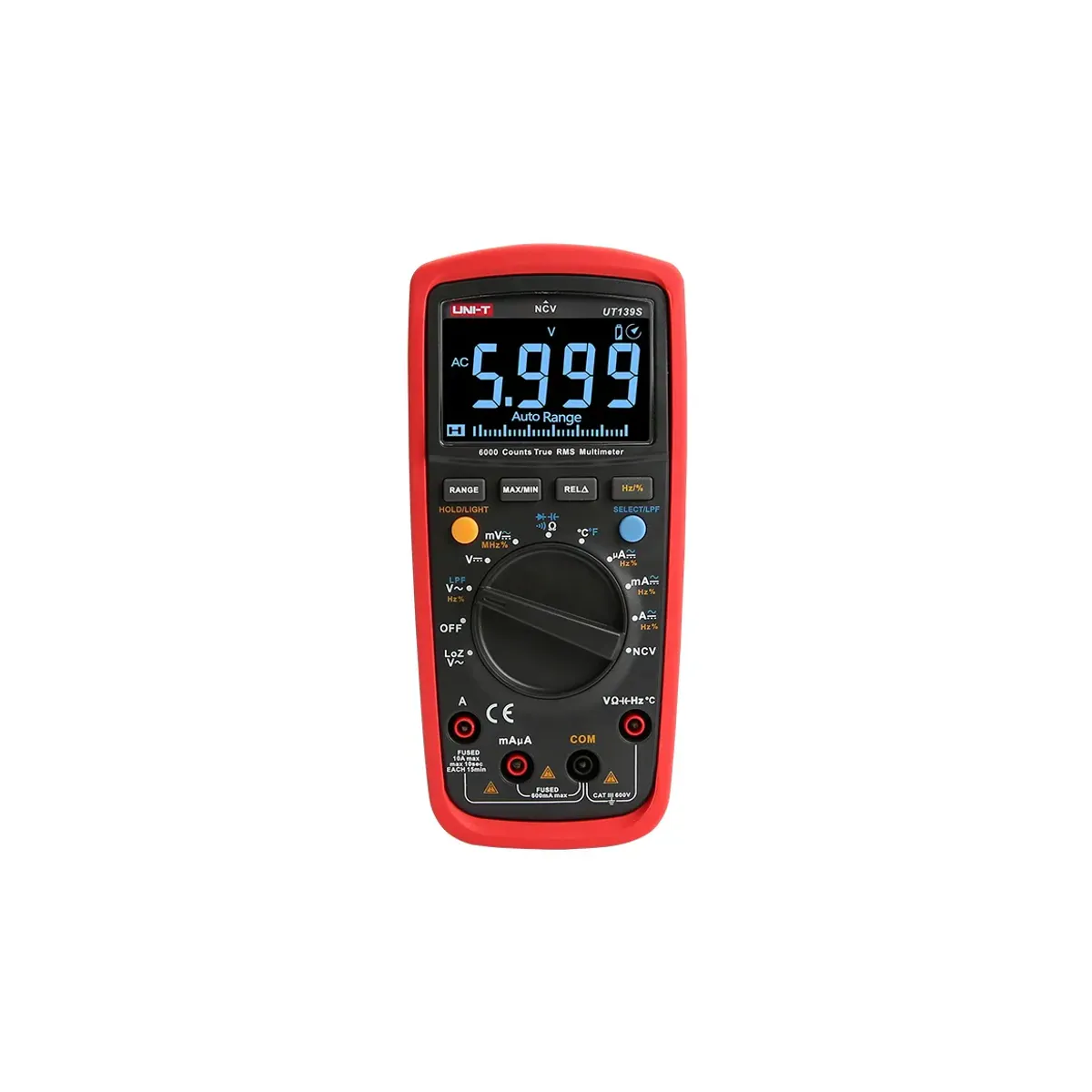

Unit UT139S True RMS Digital Multimeter

Brand: Unit
SKU: UT139S
MPN: UT139S
Price: 3197.72 TRY + VAT · incl. VAT 3837.26 TRY
Availability: In stock
Digital Multimeters (Handheld and Benchtop)
Unit Digital Multimeters (Handheld and Benchtop)
Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice

Unit UT139S True RMS Digital Multimeter. AC Current Measurement: 10A (accuracy: ±(1%+3)). DC Current Measurement: 10A (accuracy: ±(0.7%+2)). AC Voltage Measurement: 600V (accuracy: ±(0.8%+3)). DC Voltage Measurement: 600V (accuracy: ±(0.5%+2)). Temperature Measurement: -40°C~1000°C (accuracy: ±(1%+4)); -40°F~1832°F (accuracy: ±(1.5%+5)). Display Count: 6000. Resistance Measurement: 60MΩ (accuracy: ±(0.8%+2)). Capacitance Measurement: 99.99mF (accuracy: ±(4%+5)). Frequency Measurement: 10Hz~10MHz (accuracy: ±(0.1%+4)). Auto/Manual Range and True RMS: Yes. Other features: AC Bandwidth: 45Hz~400Hz; NCV and Audible Continuity: Yes; Duty Cycle Measurement: 0.1%~99.9%; Diode Test: Approx. 3V; LPF and LoZ AC Voltage: Yes; Analog Bar Graph: Yes; Power Source: 1.5V battery (R6) x 2; Display Size: 58mm x 36mm.

AC Current Measurement	10A (doğruluk: ±(1%+3))
AC Bandwidth	45Hz~400Hz
AC Voltage Measurement	600V (doğruluk: ±(0.8%+3))
Analog Bar Graph	Available
DC Current Measurement	10A (doğruluk: ±(0.7%+2))
DC Voltage Measurement	600V (doğruluk: ±(0.5%+2))
Resistance Measurement	60MΩ (doğruluk: ±(0.8%+2))
Diode Test	Yaklaşık 3 V
Display Size	58mm x 36mm
Display Count	6000
Frequency Measurement	10Hz~10MHz (doğruluk: ±(0.1%+4))
Duty Cycle Measurement	0.1%~99.9%
Power Source	1.5V pil (R6) x 2
Capacitance Measurement	99.99mF (doğruluk: ±(4%+5))
LPF and LoZ AC Voltage	Available
NCV and Audible Continuity	Available
Auto/Manual Range and True RMS	Available
Temperature Measurement	-40°C~1000°C (doğruluk: ±(1%+4)); -40°F~1832°F (doğruluk: ±(1.5%+5))
Product Dimensions	170mm x 80mm x 48mm
