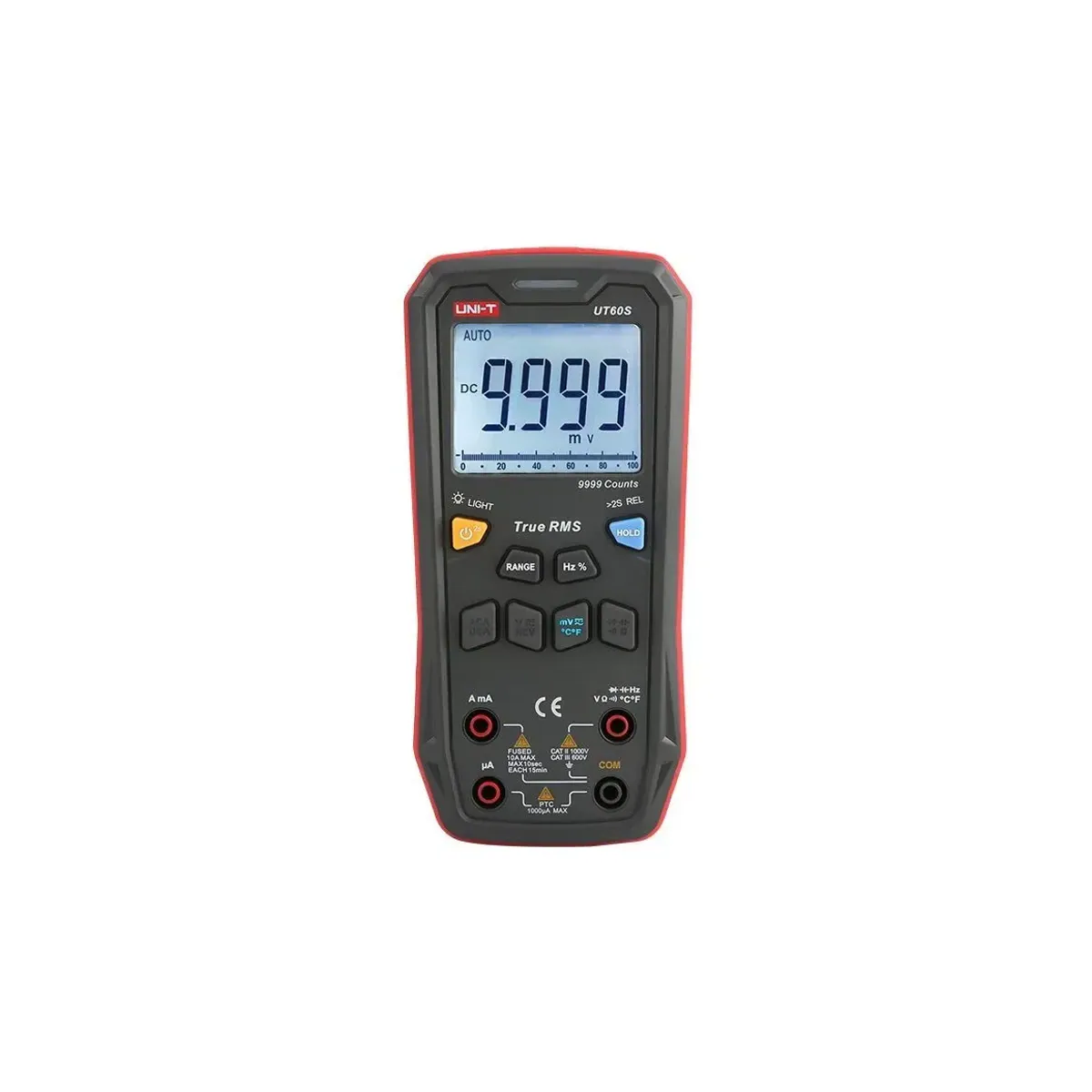

Unit UT60S Digital Multimeter
- Brand: Unit
- SKU: UT60S
- MPN: UT60S
- Price: 1735.90 TRY + VAT · incl. VAT 2083.08 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
This Unit UT60S Digital Multimeter is a digital multimeter model from the UNI-T UT60 series. It has a 9999-count display. Measurement functions: DC voltage (999.9 V), AC voltage (999.9 V), DC current (10 A), AC current (10 A), resistance (99.99 MΩ), capacitance (99.9 mF(UT60S)), frequency (99.99 Hz – 9.999 MHz), temperature (−40 °C – 1000 °C / −40 °F – 1832 °F), duty cycle (0.1 – 99.9%). Other features: relative (REL) measurement, NCV non-contact voltage detection, diode test, audible continuity test, audible-visual alert for NCV, continuity and battery status, low battery indicator (≤3.6 V), data hold, auto power off (15 min). Safety category CAT II 1000 V / CAT III 600 V. Power source: 3 × 1.5 V AAA battery.
| AC Current Measurement | 999,9 µA / 999,9 mA / 9,999 A / 10 A · ±(%1,0+3) |
|---|---|
| AC Voltage Measurement | 9,999 mV / 99,99 mV / 999,9 mV / 9,999 V / 99,99 V / 999,9 V · ±(%0,8+3) |
| Gram | 290 g |
| Relative Measurement | Available |
| DC Current Measurement | 999,9 µA / 999,9 mA / 9,999 A / 10 A · ±(%0,8+3) |
| DC Voltage Measurement | 9,999 mV / 99,99 mV / 999,9 mV / 9,999 V / 99,99 V / 999,9 V · ±(%0,5+3) |
| Resistance Measurement | 999,9 Ω / 9,999 kΩ / 99,99 kΩ / 999,9 kΩ / 9,999 MΩ / 99,99 MΩ · ±(%0,8+2) |
| Diode Test | Available |
| Low Battery Indication | ≤3.6V |
| Additional Functions | Bağıl (REL) ölçüm, NCV temassız gerilim algılama, diyot testi, sesli süreklilik testi, NCV, süreklilik ve pil durumunda sesli-ışıklı uyarı, düşük pil göstergesi (≤3,6 V), veri tutma, otomatik kapanma (15 min) |
| Display Count | 9999 |
| Frequency Measurement | 99,99 Hz – 9,999 MHz · ±(%0,1+5) |
| Duty Cycle Measurement | 0,1 – %99,9 · ±(%3+5) |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | 3 × 1,5 V AAA pil |
| Range Selection | Otomatik |
| Capacitance Measurement | 9,999 nF / 99,99 nF / 999,9 nF / 9,999 µF / 99,99 µF / 999,9 µF / 9,999 mF / 9,99 mF (UT60EU / UT60BT) / 99,9 mF(UT60S) · ±(%4,0+5) |
| NCV Non-Contact Voltage Detection | Available |
| NCV/Continuity/Battery Audible/Visual Indicator | Available |
| Auto Power Off | 15Min |
| Continuity Test | Available |
| Temperature Measurement | −40 °C – 1000 °C / −40 °F – 1832 °F · ±4 °C / ±5 °F |
| Data Hold | Available |
| Operating Temperature | 0 °C – 40 °C |
| Product Dimensions | 169 mm × 81 mm × 46 mm |
