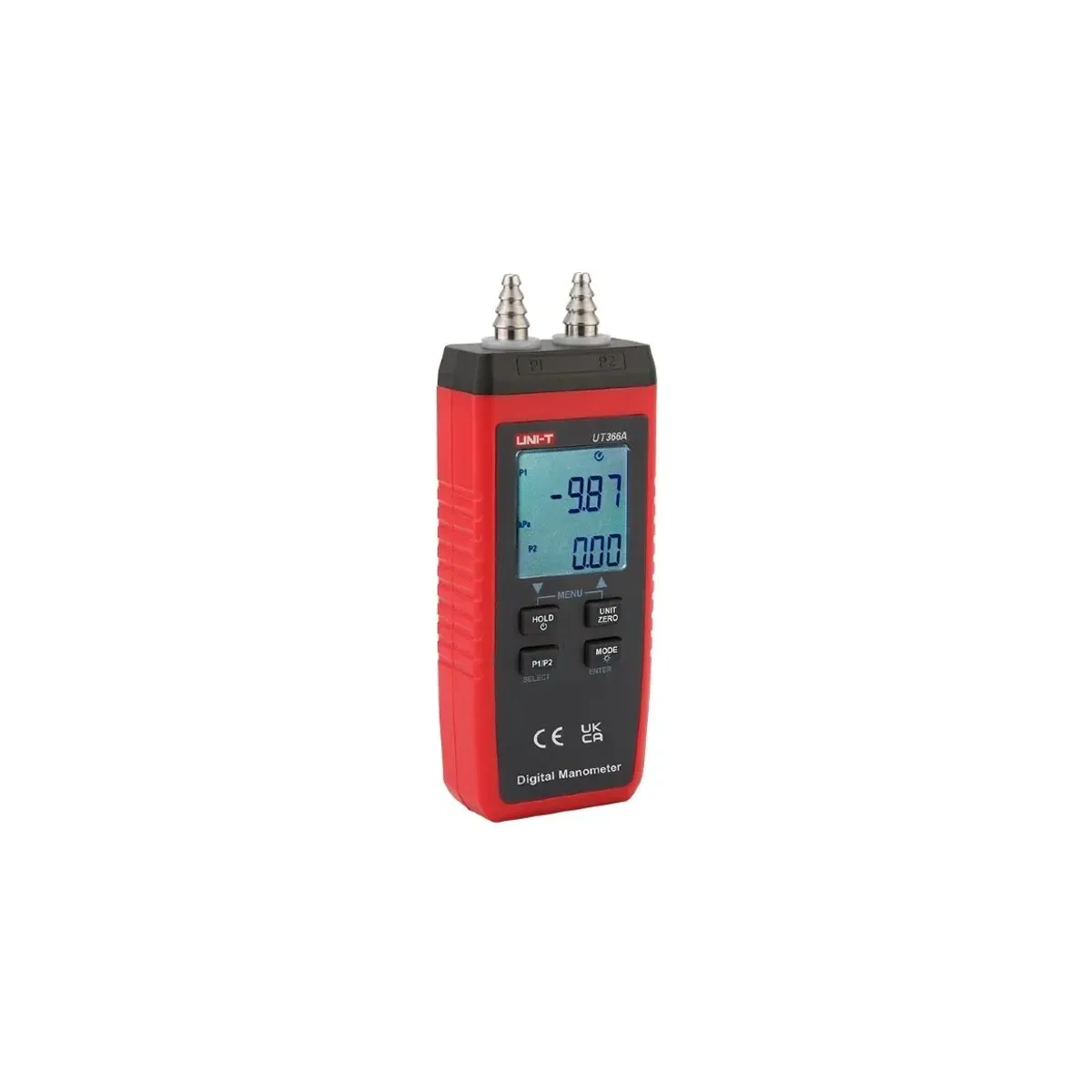

Unit UT366A Digital Pressure Gauge
- Brand: Unit
- SKU: UT366A
- MPN: UT366A
- Price: 1872.95 TRY + VAT · incl. VAT 2247.54 TRY
- Availability: Made to order
- Manometers
- Selection guide: Environmental Measuring Instruments Selection Guide: Technical Criteria and Engineering Practice
Unit UT366A Digital Manometer is a digital manometer model manufactured by UNI-T. Accuracy ±0.5% FS@25 °C. Power source: 3 × 1.5 V AAA battery. Box contents: battery, hose, carrying case, magnetic hanger.
| Backlight | White |
|---|---|
| Storage Environment | 10 – 60 °C ≤75 %RH |
| Accuracy | ±%0,5 FS@25 °C |
| Drop Resistance | 1 m |
| Low Battery Indication | Available |
| Display | FSTN |
| Display Size | 31 × 32 mm |
| Power Source | 3 × 1,5 V AAA pil |
| LED Indication | pozitif basınç: yeşil ışık; negatif basınç: kırmızı ışık |
| Auto Power Off | 5 min |
| Certifications | CE, UKCA |
| Standard Accessories | Pil, hortum, taşıma çantası, mıknatıslı askı |
| Operating Environment | 0 – 50 °C ≤85 %RH |
| Resolution | 0.00 ~ ±15.00 kPa; 0.01 kPa; 0.0 ~ ±150.0 mbar; 0.1 mbar; 0.000 ~ ±0.150 bar; 0.001 bar; 0.000 ~ ±2.175 psi; 0.001 psi; 0.0 ~ ±112.5 mmHg; 0.1 mmHg; 0.00 ~ ±60.29 inH2O; 0.01 inH2O; 0.000 ~ ±4.429 inHg; 0.001 inHg; 0.00 ~ ±34.80 ozin2; 0.01 ozin2; 0.000 ~ ±0.152 kgcm2; 0.001 kgcm2; 0.000 ~ ±5.026 ftH2O; 0.001 ftH2O; 0.0 ~ ±1531 mmH2O; 1 mmH2O; 0.0 ~ ±150.0 hPa; 0.1 hPa; 0.0~ 19999.9 m/s; 0.1 m/s; 0~ 199999 fpm; 1 fpm |
| Range / Resolution | 0,00 – ±15,00 kPa (0,01 kPa); 0,0 – ±150,0 mbar (0,1 mbar); 0,000 – ±0,150 bar (0,001 bar); 0,000 – ±2,175 psi (0,001 psi); 0,0 – ±112,5 mmHg (0,1 mmHg); 0,00 – ±60,29 inH2O (0,01 inH2O); 0,000 – ±4,429 inHg (0,001 inHg); 0,00 – ±34,80 ozin² (0,01 ozin²); 0,000 – ±0,152 kgcm² (0,001 kgcm²); 0,000 – ±5,026 ftH2O (0,001 ftH2O); 0,0 – ±1531 mmH2O (1 mmH2O); 0,0 – ±150,0 hPa (0,1 hPa); 0,0 – 19999,9 m/s (0,1 m/s); 0 – 199999 fpm (1 fpm) |
| Measurement Units | kPa, mbar, bar, psi, mmHg, inH2O, inHg, ozin2, kgcm2, ftH2O, mmH2O, hPa, m/s(fpm) |
| Product Dimensions | 53 × 30 × 137,8 mm |
