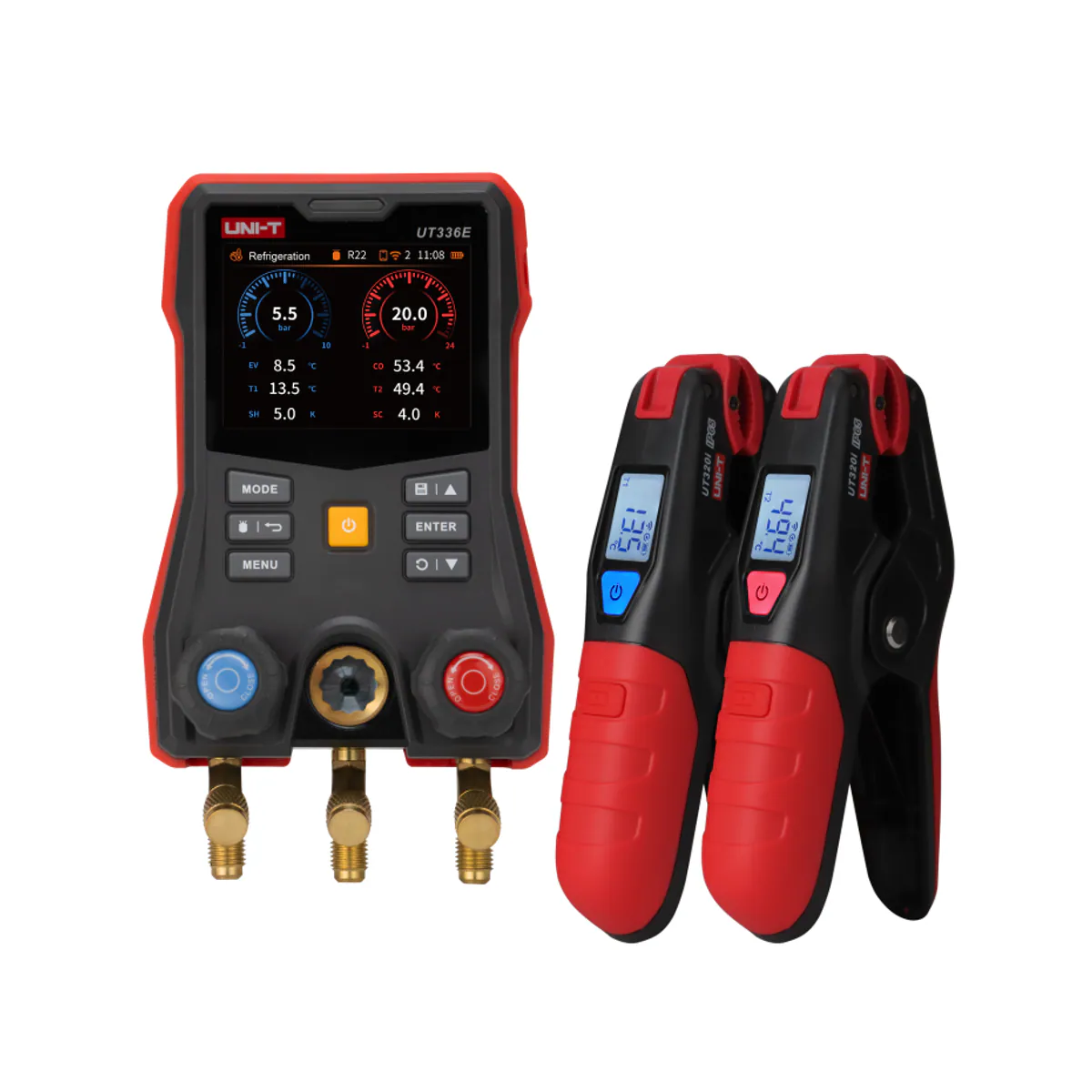

Unit UT336E KIT -1–60 bar Digital Manifold Gauge with 2 Wireless Temperature Clamps
- Brand: Unit
- SKU: UT336E KIT
- MPN: UT336E KIT
- Price: 18272.67 TRY + VAT · incl. VAT 21927.20 TRY
- Availability: Made to order
- Manometers
- Selection guide: Environmental Measuring Instruments Selection Guide: Technical Criteria and Engineering Practice
Unit UT336E KIT is a set by UNI-T that provides the UT336E digital manifold gauge together with two wireless temperature clamps, refrigerant hoses and a toolbox; it is designed for installation, commissioning and maintenance of refrigeration and heat pump systems. The pressure range is -1.00 to +60.00 bar (0.01 bar) with an accuracy of ±0.5% FS. The temperature clamps measure from -50 to 150 °C with 0.1 °C resolution; the accuracy is ±0.5 °C from -50 to 80 °C and ±1 °C elsewhere. The gauge calculates superheat and subcooling automatically, detects refrigeration/heat pump mode automatically and provides evacuation and pressure holding modes. It has a 162+ refrigerant database, 10,000 records, a 100 m wireless range, a mobile app, a 3.5″ HD colour screen and a built-in 5200 mAh lithium battery; the UT336E is IP54 and the UT320i is IP65 rated. It is compatible with A1, A2L, A2, A3 and part of B1 refrigerants; it cannot be used with ammonia (NH3 / R717).
| Accuracy | Basınç: ±0.5% FS; sıcaklık: ±0.5 °C (-50–80 °C), ±1 °C (diğer) |
|---|---|
| Drop Resistance | UT320i: 2 m |
| Display | 3.5″ HD renkli ekran; dokunarak uyandırılan arka ışık; otomatik ekran kapanma |
| Power Source | Dahili şarj edilebilir lityum pil 3.7 V 5200 mAh |
| Auto Power Off | Available |
| Certifications | CE, RoHS |
| Standard Accessories | Dijital manifold manometre, 2 adet kablosuz sıcaklık kelepçesi, kullanım kılavuzu, güvenlik kılavuzu, 3 adet soğutucu akışkan hortumu, USB-C şarj kablosu, alet kutusu |
| Operating Environment | -20–50 °C, <90% RH (yoğuşmasız) |
| Range / Resolution | -1.00–+60.00 bar (0.01 bar); -100–+6000 kPa (1 kPa); -0.100–+6.000 MPa (0.001 MPa); -14.5–+870.2 psi (0.1 psi); -1.02–+61.18 kg/cm² (0.01 kg/cm²); -75.0–4500 cmHg (0.1 cmHg); -29.5–1771 inHg (0.1 inHg) |
| Measurement Units | Basınç: bar, kPa, MPa, psi, kg/cm², cmHg, inHg; sıcaklık: °C, °F |
| Product Dimensions | UT336E: 203 mm × 117 mm × 70 mm; UT320i: 156 mm × 79 mm × 40 mm |
| Refrigerant Type | 162+ (cihazda yerleşik 160+ veri tabanı) |
| Evaporation/Condensation Temperature | Available |
| High/Low Pressure Measurement | Available |
| Alarm | Sarı LED / buzzer alarmı |
| Data Logging | 10,000 kayıt |
| Reset Type | Var (basınç sıfırlama) |
| Mobile App | Available |
| Firmware update | Var (OTA) |
| Battery Life | >30 saat (arka ışık %50, kablosuz bağlantı kapalı) |
| IP Rating | UT336E: IP54; UT320i: IP65 |
| Connection | 3 × 1/4″ SAE |
| Compatible Refrigerants | A1 / A2L / A2 / A3 ve B1'in bir bölümü; amonyak (NH3 / R717) ile kullanılamaz |
| Gram | UT336E: yaklaşık 836 g; UT320i: yaklaşık 156 g |
| Superheat/Subcooling Calculation | Var (kablosuz sıcaklık kelepçeleriyle otomatik hesaplanır) |
| Temperature Range | -50–150 °C (0.1 °C); -58–302 °F (0.1 °F) |
| Operating Mode | Soğutma/ısı pompası modu (otomatik algılama); vakumlama modu; basınç tutma modu |
| Temperature Compensation | Available |
| Range | 100 m |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ, CN |
| Compatible Models | UT336V kablosuz vakum göstergesi (kablosuz bağlantı) |
