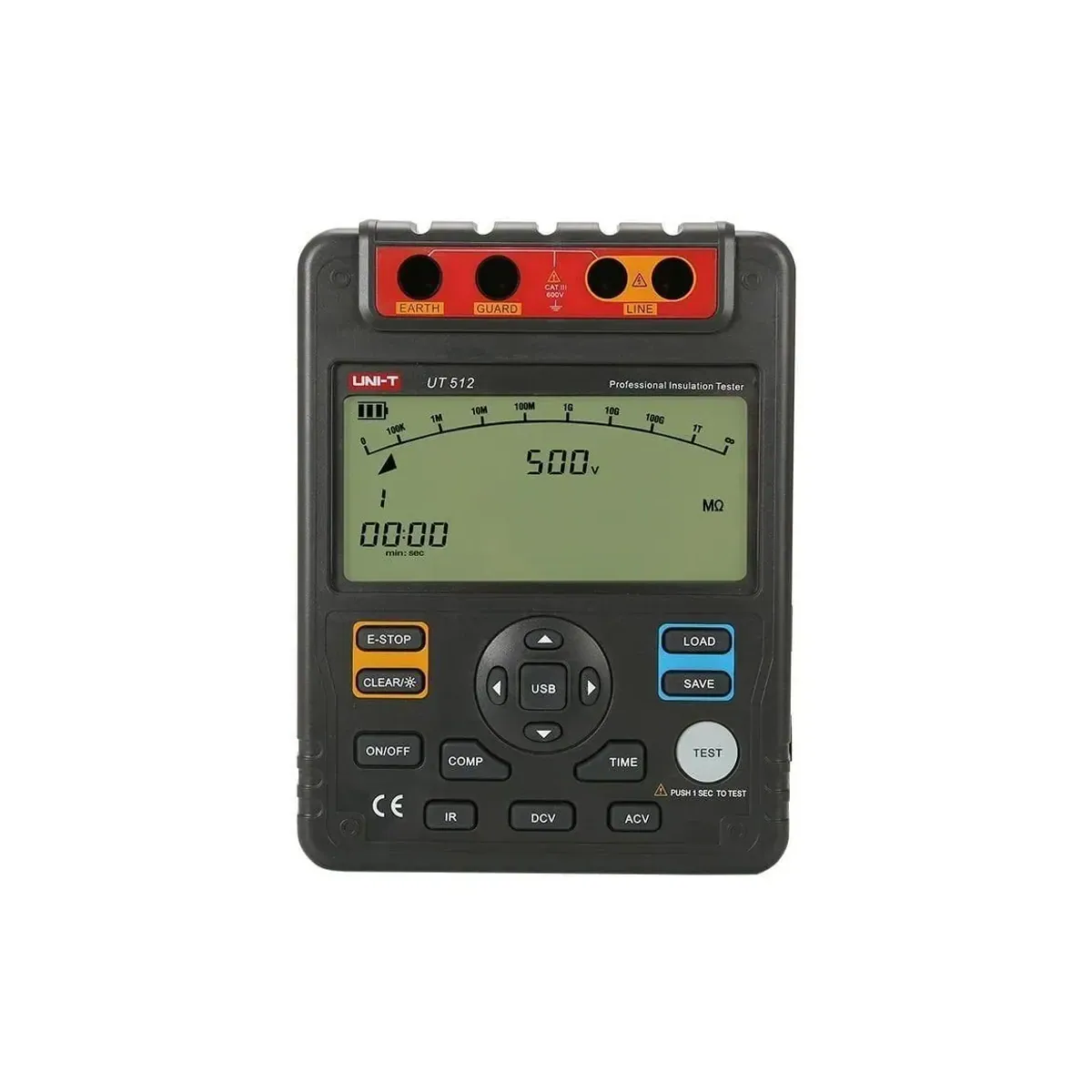

Unit UT512 Insulation Resistance Tester
- Brand: Unit
- SKU: UT512
- MPN: UT512
- Price: 8496.79 TRY + VAT · incl. VAT 10196.15 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT512 Insulation Resistance Tester is an insulation resistance tester model from the UNI-T UT510 series. Measurement functions: DC voltage (600 V), AC voltage (600 V), insulation resistance. Test Voltages: 500 V – 2500 V · output tolerance 0% – 20%. Short-circuit current <1.8 mA. Memory: 18 records. Other features: low battery indicator, comparative measurement, PI (polarization index), DAR (dielectric absorption ratio), USB interface, backlight, out-of-range warning, high voltage indicator, timed measurement (approx. 15 min), auto range, auto power off. Power source: 8 × 1.5 V battery (LR14). Box contents: single-plug test lead with alligator clip × 2 (black and green), dual-plug test lead with alligator clip × 1 (red), batteries, USB cable, PC software CD, power adapter.
| AC Voltage Measurement | 600 V · ±(%2+5) |
|---|---|
| Analog Bar Graph | 30 segment |
| Backlight | Available |
| Gram | 1.8 kg |
| Overload Indication | Available |
| DAR Test | Available |
| DC Voltage Measurement | 600 V · ±(%2+5) |
| Low Battery Indication | Available |
| Additional Functions | Düşük pil göstergesi, karşılaştırma ölçümü, PI (polarizasyon indeksi), DAR (dielektrik absorpsiyon oranı), USB arayüzü, arka ışık, aralık aşımı uyarısı, yüksek gerilim göstergesi, zamanlı ölçüm (yaklaşık 15 min), otomatik kademe, otomatik kapanma |
| Display Size | 123 mm × 58 mm |
| Power Source | 8 × 1,5 V pil (LR14) |
| Memory | 18 kayıt |
| Comparative Measurement | Available |
| Short-circuit Current | <1,8 mA |
| Auto Range and Auto Power Off | Available |
| PI Test | Available |
| Standard Accessories | Tek fişli timsah klipsli test kablosu × 2 (siyah ve yeşil), çift fişli timsah klipsli test kablosu × 1 (kırmızı), piller, USB kablosu, PC yazılım CD'si, güç adaptörü |
| Test Voltages | 500 V – 2500 V · çıkış toleransı %0 – %20 |
| USB Communication | Available |
| High Voltage Indicator | Available |
| Timed Test | Yaklaşık 15 dakika |
| Product Dimensions | 202 mm × 155 mm × 94 mm |
| Insulation Resistance Measurement | 500 V: 0,5 MΩ – 5 GΩ ±(%3+5); 1000 V: 2 MΩ – 10 GΩ ±(%3+5); 1500 V: 5 MΩ – 20 GΩ ±(%3+5); 2500 V: 10 MΩ – 100 GΩ ±(%3+5) |
