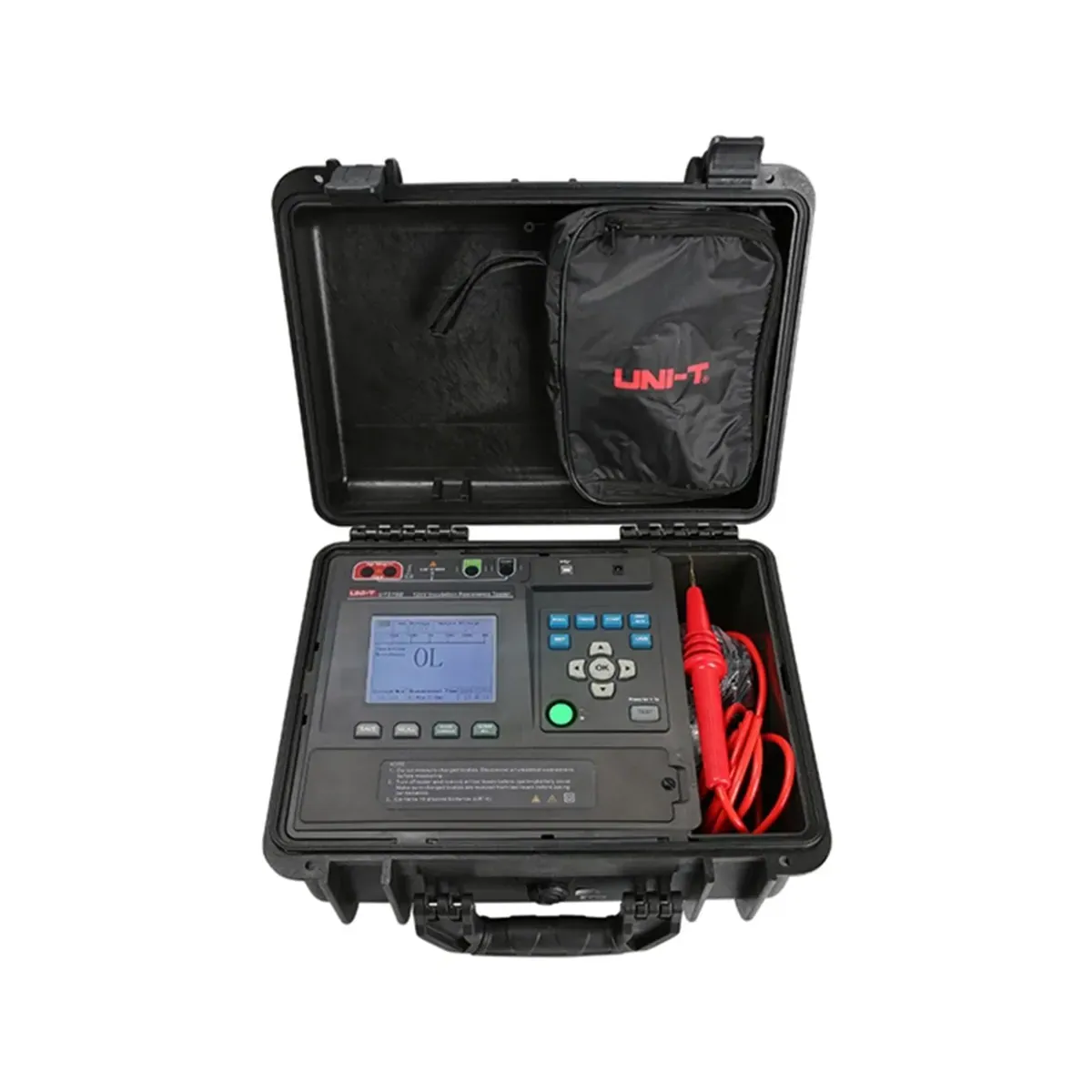

Unit UT516B 12,000V Insulation Resistance Tester
- Brand: Unit
- SKU: UT516B
- MPN: UT516B
- Price: 68522.52 TRY + VAT · incl. VAT 82227.02 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT516B 12,000V Insulation Resistance Tester. AC Voltage Measurement: 30V~750V (50~60Hz) (accuracy: ±(3%+5)). DC Voltage Measurement: 30V~1000V (accuracy: ±(3%+5)). Load Current: 500V (R=500KΩ) 1mA; 0%—+20%; 1000V (R=1MΩ) 1mA; 0%—+20%; 2500V (R=2.5MΩ) 1mA; 0%—+20%; 5000V (R=5MΩ) 1mA; 0%—+20%; 10000V (R=10MΩ) 0.15~1.2mA; 0%—+20%; 12000V (R=12MΩ) 0.15~1.2mA; 0%—+20%. Output Voltage: 500V; 0~+10%; 1000V; 0~+10%; 2500V; 0~+10%; 5000V; 0~+10%; 10000V; -5~+10%; 12000V; -5~+10%. PC Analysis Software: Yes. Backlight: Yes. Memory: 999 data records. DAR Test: 0.00~999. PI Test: 0.00~999. Power Source: 1.5V alkaline battery (LR14) X 10, power adapter. Other features: Weight: 6.6kg; Product Dimensions: 410*342*204mm.
| AC Voltage Measurement | 30V~750V (50~60Hz) (doğruluk: ±(3%+5)) |
|---|---|
| Backlight | Available |
| Gram | 6.6 kg |
| DAR Test | 0.00~999 |
| DC Voltage Measurement | 30V~1000V (doğruluk: ±(3%+5)) |
| Power Source | 1.5V alkalin pil (LR14) X 10, güç adaptörü |
| Memory | 999 kayıt veri |
| PC Analysis Software | Available |
| PI Test | 0.00~999 |
| Load Current | 500V (R=500KΩ) 1mA; 0%—+20%; 1000V (R=1MΩ) 1mA; 0%—+20%; 2500V (R=2.5MΩ) 1mA; 0%—+20%; 5000V (R=5MΩ) 1mA; 0%—+20%; 10000V (R=10MΩ) 0.15~1.2mA; 0%—+20%; 12000V (R=12MΩ) 0.15~1.2mA; 0%—+20% |
| Output Voltage | 500V; 0~+10%; 1000V; 0~+10%; 2500V; 0~+10%; 5000V; 0~+10%; 10000V; -5~+10%; 12000V; -5~+10% |
| Product Dimensions | 410*342*204mm |
