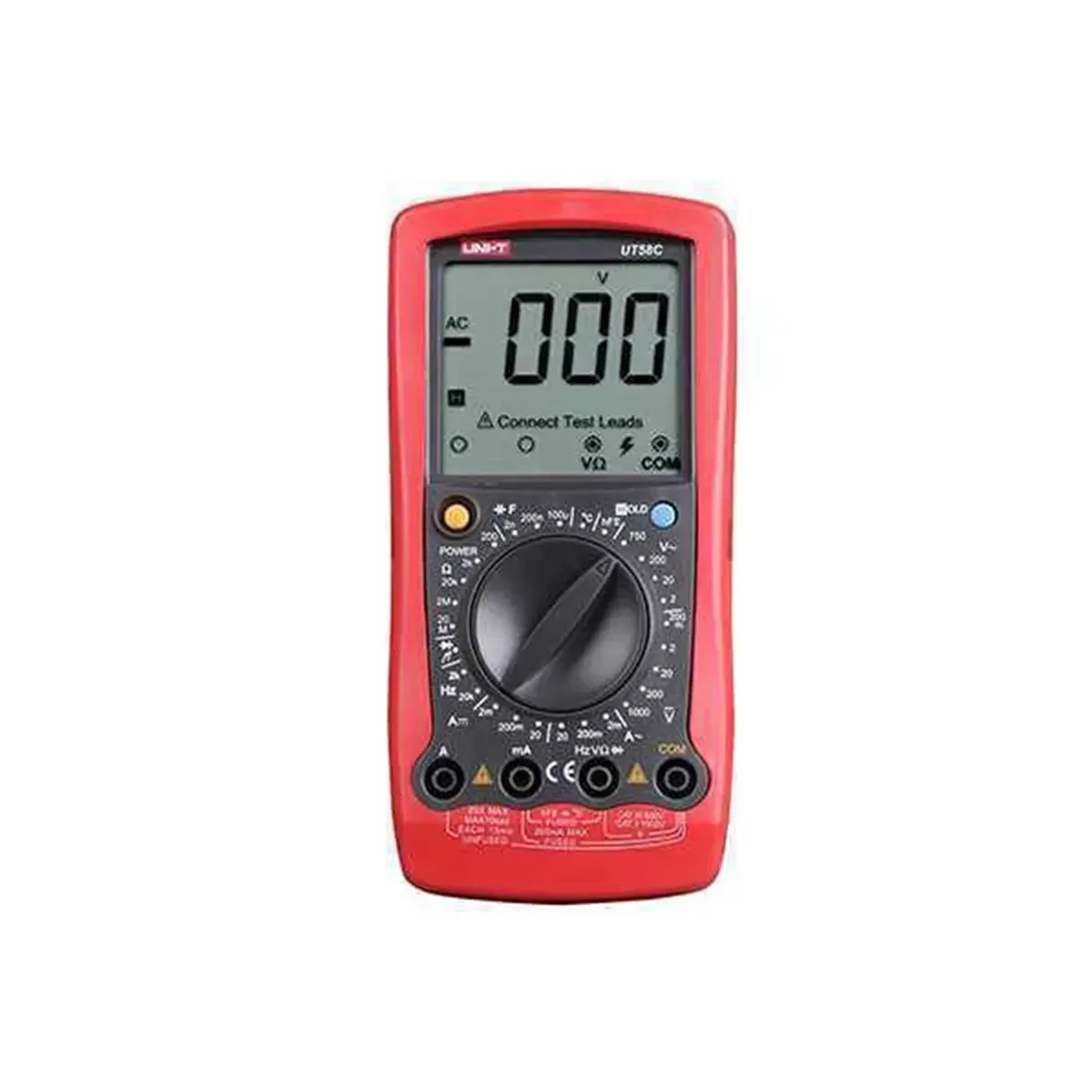

Unit UT58C Digital Multimeter
- Brand: Unit
- SKU: UT58C
- MPN: UT58C
- Price: 1850.11 TRY + VAT · incl. VAT 2220.13 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT58C Digital Multimeter is a digital multimeter model from the UNI-T UT58 series. Measurement functions: DC voltage (1000 V), AC voltage (750 V), DC current (20 A), AC current (20 A), resistance (20 MΩ), capacitance (100 µF), frequency (20 kHz), temperature (−40 °C – 1000 °C). Power source: 9 V battery (6F22). Box contents: battery, test probes, protective case, multipurpose socket, point-contact temperature probe.
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,5+1) |
|---|---|
| AC Voltage Measurement | 2 V / 20 V / 200 V / 750 V · ±(%0,8+3) |
| DC Current Measurement | 2 mA / 200 mA / 20 A · ±(%0,8+1) |
| AC Current Measurement | 2 mA / 200 mA / 20 A · ±(%1+3) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 2 MΩ / 20 MΩ · ±(%0,8+1) |
| Capacitance Measurement | 2 nF / 200 nF / 100 µF · ±(%4+3) |
| Frequency Measurement | 2 kHz / 20 kHz · ±(%1,5+5) |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+3) |
| Power Source | 9 V pil (6F22) |
| Display Size | 60 mm × 54 mm |
| Product Dimensions | 179 mm × 88 mm × 39 mm |
| Gram | 350 g |
| Standard Accessories | Pil, test probları, koruyucu kılıf, çok amaçlı soket, nokta temaslı sıcaklık probu |
