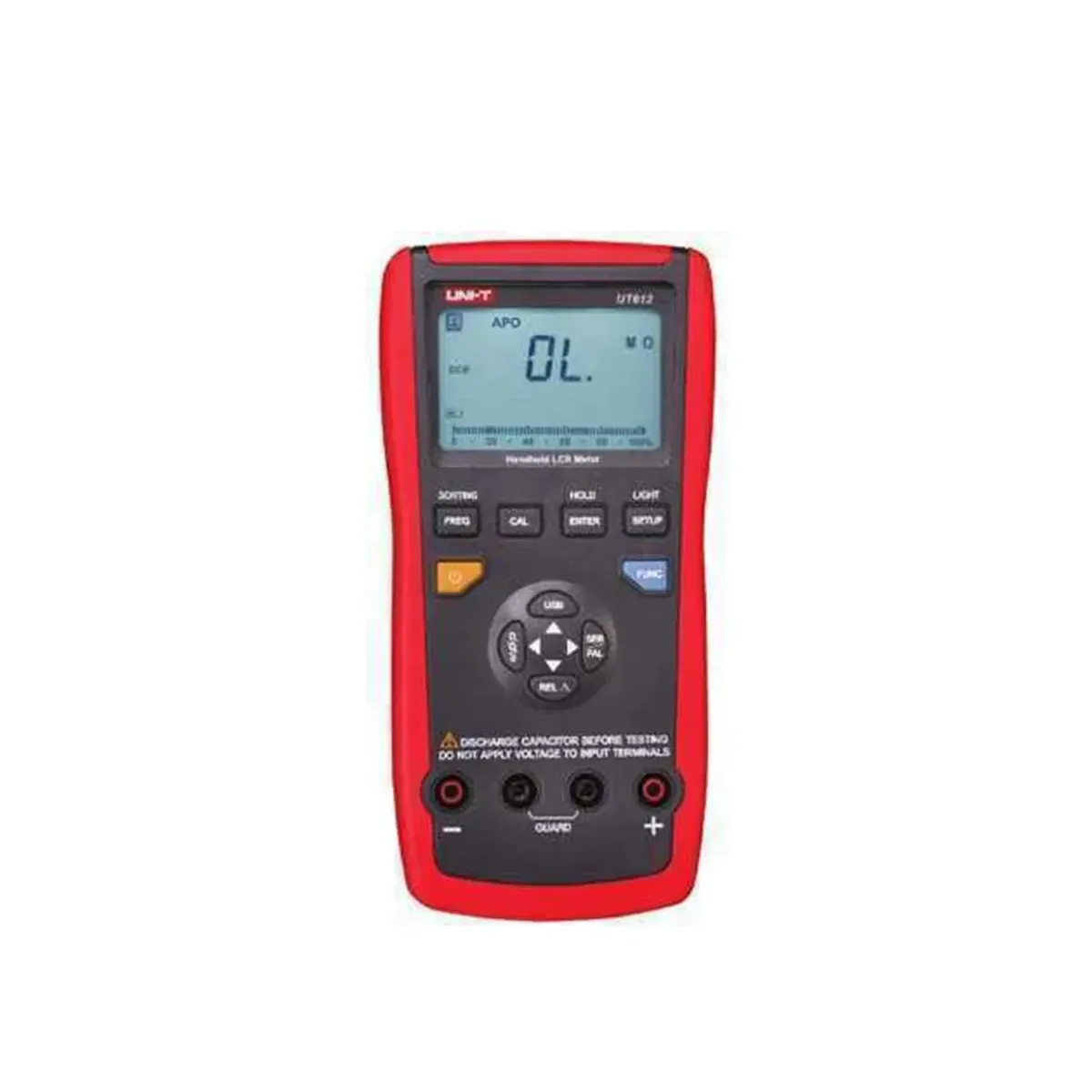

Unit UT612 Handheld LCR Meter Multimeter
- Brand: Unit
- SKU: UT612
- MPN: UT612
- Price: 7537.48 TRY + VAT · incl. VAT 9044.98 TRY
- Availability: Made to order
- LCR and Capacitance Meters
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UT612 Handheld LCR Meter Multimeter is a capacitance and LCR meter model manufactured by UNI-T. It has a 20000-count display. Measurement functions: resistance (20 Ω – 200 MΩ), capacitance (200 pF – 20 mF), inductance (20 µH – 2000 H). Other features: real-time display of test frequency, auto power off, low battery indicator (≤6.8 V), data hold, relative (REL) measurement, USB interface, backlight, deviation ratio measurement, comparison, calibration, automatic LCR recognition and measurement. Power source: 9 V battery (6F22) or USB. Box contents: battery, SMD test clip, USB interface cable, multipurpose socket, PC software CD.
| Analog Bar Graph | 26 segment |
|---|---|
| Backlight | Available |
| Gram | 374 g |
| Relative Measurement | Available |
| D/Q Display Count | 2000 |
| D/Q Resolution | 0,001 |
| Resistance Measurement | 20 Ω – 200 MΩ · ±(%0,3+5) |
| Low Battery Indication | ≤6.8V |
| Additional Functions | Test frekansının anlık gösterimi, otomatik kapanma, düşük pil göstergesi (≤6,8 V), veri tutma, bağıl (REL) ölçüm, USB arayüzü, arka ışık, sapma oranı ölçümü, karşılaştırma, kalibrasyon, otomatik LCR tanıma ve ölçüm |
| Display Size | 40 mm × 63 mm |
| Display Count | 20000 |
| Inductance Measurement | 20 µH – 2000 H · ±(%0,5+5) |
| Power Source | 9 V pil (6F22) veya USB |
| Range Selection | Otomatik |
| Calibration | Available |
| Capacitance Measurement | 200 pF – 20 mF · ±(%0,5+5) |
| Comparative Measurement | Available |
| LCR Auto Recognition | Available |
| Auto Power Off | Available |
| PC Data Records | 60000 |
| Deviation Ratio Measurement | Available |
| Standard Accessories | Pil, SMD test klipsi, USB arayüz kablosu, çok amaçlı soket, PC yazılım CD'si |
| Test Frequency | 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz |
| Live Test Frequency Display | Available |
| Test Voltage | 0,6 Vrms |
| Test Parameters | L/C/R/DCR/Q/D/θ/ESR |
| USB and PC Data Logging | 60000 |
| USB Communication | Available |
| Data Hold | Available |
| Operating Voltage | 0.6Vrms |
| Output Impedance | 120 Ω |
| Measured Parameters | L / C / R / DCR / Q / D / θ / ESR |
| Measurement Modes | Seri/Paralel |
| Measuring Mode | seri / paralel |
| Product Dimensions | 96 mm × 193 mm × 47 mm |
