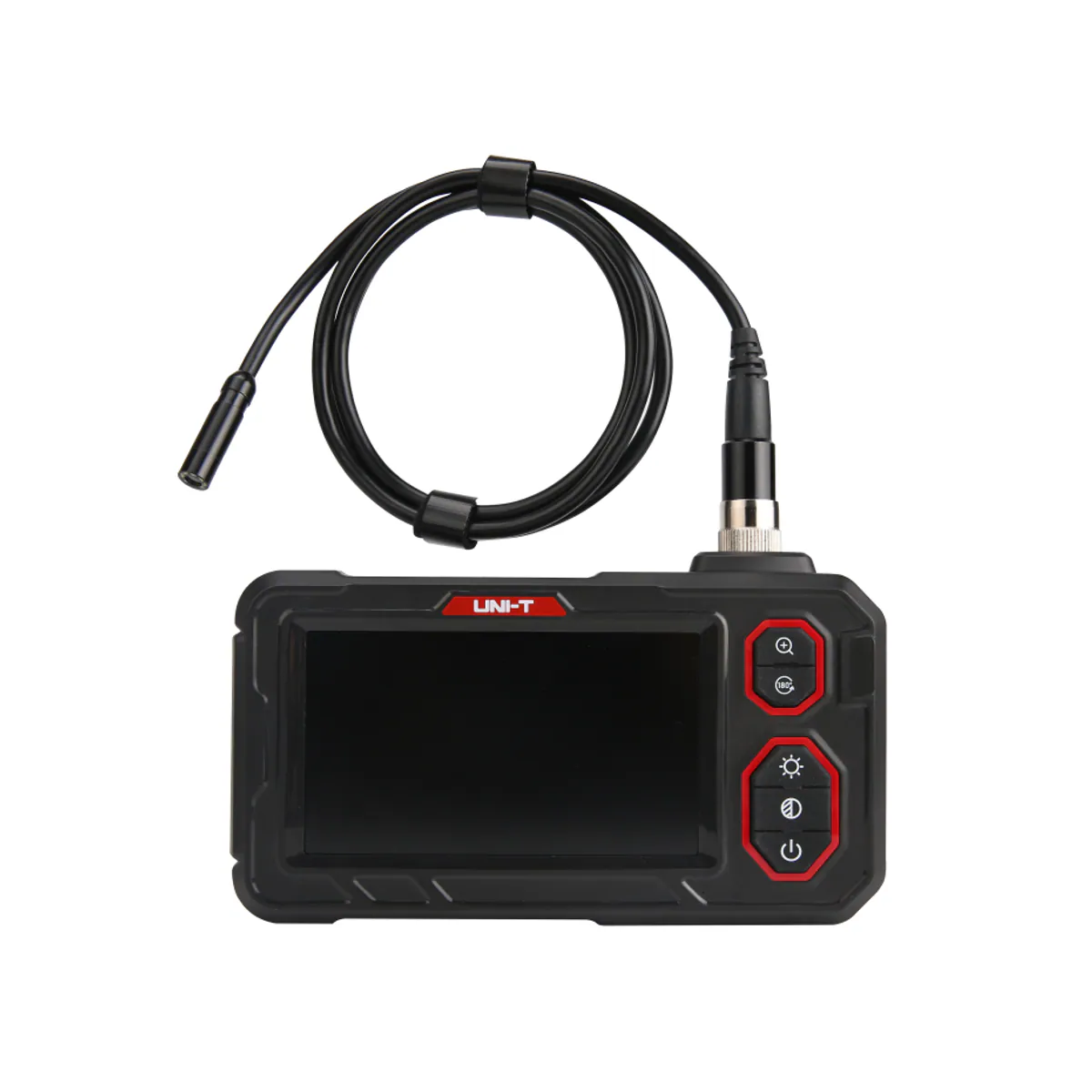

Unit UT667-5m Industrial Borescope Camera with 4.3 inch IPS LCD Screen and 5 m Hose
- Brand: Unit
- SKU: UT667-5m
- MPN: UT667-5m
- Model: 5 m
- Price: 6167.03 TRY + VAT · incl. VAT 7400.44 TRY
- Availability: Made to order
- Electrical and Electronic Testers
- Unit Electrical and Electronic Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT667-5m is an industrial borescope camera with a replaceable 5 m hose, an 8 mm CMOS lens and a 4.3 inch IPS LCD 1280×720 screen. The camera has a 300K-pixel sensor, a 70° field of view and a 20–100 mm depth of field, is lit by 8 LEDs with 4 brightness settings and is rated IP67. Screen rotation, black-and-white images, colour conversion and zoom in/out are available. A 3.7 V / 2000 mAh Li-ion battery gives about 5 hours of operation and charges through a Type-C cable. The unit measures 162 × 82 × 36 mm and weighs about 190 g without the hose. The hose has an aviation plug and is replaceable; the series is available with 1 m, 5 m and 10 m hoses, and this model has the 5 m hose. It is used for vehicle inspection, pipeline detection, air conditioner maintenance and electronic equipment maintenance. The box includes a Type-C cable, a gift box, a user manual, a blister tray, a hook, a side mirror, a magnet and 3 fixed buckles.
| Depth of Field | 20–100 mm |
|---|---|
| Illumination | 4 kademe ayarlı, 8 LED |
| Gram | Yaklaşık 190 g (hortum hariç) |
| Field of View | 70° |
| Lens Diameter | 8 mm |
| Probe Length | 5 m |
| Waterproofing | IP67 (kamera) |
| Product Dimensions | 162 × 82 × 36 mm |
| Display Size | 4.3 inç IPS LCD |
| Display Languages | İngilizce |
| Functions | Ekran döndürme; siyah-beyaz görüntü; renk dönüşümü; görüntü yakınlaştırma ve uzaklaştırma |
| Screen Viewing Angle | 178° |
| Hose Material | Havacılık fişli, değiştirilebilir kablo |
| Image Sensor | CMOS |
| Digital Camera Resolution | 300K piksel |
| Battery Capacity | 3.7 V / 2000 mAh Li-ion |
| Battery Life | 5 saat |
| Lens Operating Temperature | 0°C – 80°C |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | <90% RH, yoğuşmasız |
| Standard Accessories | El tipi tek lensli endüstriyel boroskop ×1, Type-C kablo ×1, hediye kutusu ×1, kullanım kılavuzu ×1, blister tepsi ×1, kanca ×1, yan ayna ×1, mıknatıs ×1, sabitleme tokası ×3 |
| Certifications | CE, RoHS |
| Display Resolution | 1280×720 |
