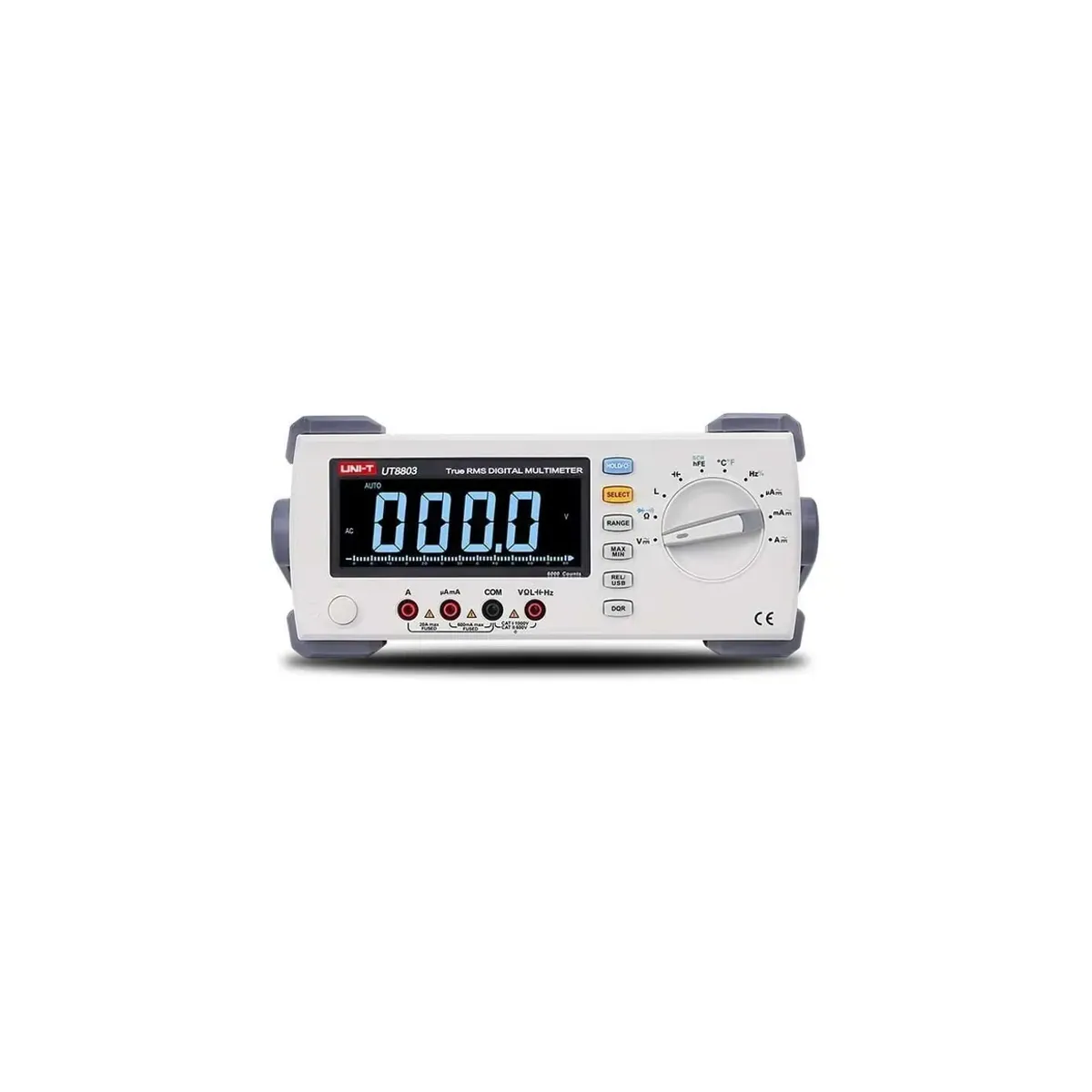

Unit UT8803E Benchtop Digital Multimeter
- Brand: Unit
- SKU: UT8803E
- MPN: UT8803E
- Price: 11192.01 TRY + VAT · incl. VAT 13430.41 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT8803E is a benchtop digital multimeter with 5999 counts, True RMS measurement and auto ranging, manufactured by UNI-T. Measures 1000 V DC and 750 V AC voltage, AC/DC current up to 10 A, 60 MΩ resistance, 6 mF capacitance, inductance up to 100 H, 20 MHz frequency and temperature with a K-type thermocouple. Can measure equivalent series resistance (ESR) and perform diode and continuity tests, and with the UT-S03A adapter can test transistor hFE and thyristors (SCR). Has 20,000 groups of data logging with maximum/minimum, relative measurement and trend graph functions; can be monitored from computer software via USB connection. It is CE and cETLus certified.
| Display Count | 5999 |
|---|---|
| True RMS | Available |
| Range Selection | Otomatik |
| DC Voltage Measurement | 600 mV · ±(%0,5+2); 6 V / 60 V / 600 V · ±(%0,3+2); 1000 V · ±(%0,5+3) |
| AC Voltage Measurement | 600 mV / 6 V / 60 V / 600 V · ±(%0,6+5) (40 Hz – 1 kHz); 750 V · ±(%1,2+5) (40 Hz – 1 kHz); 100 kHz'e kadar frekans tepkisi (600 mV – 60 V) |
| DC Current Measurement | 600 µA / 6 mA · ±(%0,8+3); 600 mA · ±(%1,5+3); 10 A · ±(%2+5) |
| AC Current Measurement | 600 µA / 6 mA · ±(%1+5) (40 Hz – 10 kHz); 60 mA / 600 mA · ±(%1+5) (40 Hz – 5 kHz); 10 A · ±(%2+6) (40 Hz – 1 kHz) |
| Resistance Measurement | 600 Ω · ±(%0,8+5); 6 kΩ / 60 kΩ / 600 kΩ · ±(%1+5); 6 MΩ · ±(%2+5); 60 MΩ · ±(%5+5) |
| Capacitance Measurement | 6 nF · ±(%2,5+5); 60 nF / 600 nF · ±(%1,5+5); 6 µF / 60 µF · ±(%3+10); 600 µF · ±(%5+5); 6 mF · ±(%10+8) |
| Inductance Measurement | 600 µH · ±(%2,5+5); 6 mH – 60 H · ±(%2+5); 100 H yalnız referans |
| Frequency Measurement | 600 Hz – 20 MHz · ±(%0,1+10) |
| Duty Cycle Measurement | %5 – %95 (yalnız referans) |
| Temperature Measurement | −40 °C – 1000 °C (K tipi termokupl) · ±(%1+5) (0–400 °C) |
| Diode Test | Available |
| Continuity Test | Sesli (< 10 Ω) |
| DCV Input Impedance | 10 MΩ |
| Measurement Rate | Saniyede 2–3 okuma |
| Data Logging | 20.000 grup |
| Additional Functions | Eşdeğer seri direnç (ESR) ölçümü 60 Ω – 2 MΩ, transistör hFE ve tristör (SCR) testi (UT-S03A aparatıyla), maksimum/minimum, bağıl (REL) ölçüm, trend grafiği, bilgisayar yazılımıyla uzaktan izleme |
| Interfaces | USB Device |
| Certifications | CE, cETLus |
| Operating Temperature | 0–40 °C |
| Power Source | AC 100 / 120 / 127 / 220 / 230 / 240 V, 45–440 Hz, en fazla 28 VA |
| Product Dimensions | 320 × 265 × 110 mm |
| Gram | 3,1 kg (aksesuarsız) |
| Standard Accessories | UT-L41 timsah klipsli kısa test kablosu, UT30 çift yalıtımlı test kabloları (CAT III 1000 V / CAT IV 600 V, 10 A), UT-T01 K tipi sıcaklık probu, UT-S03A transistör/tristör test aparatı, güç kablosu, USB kablosu |
