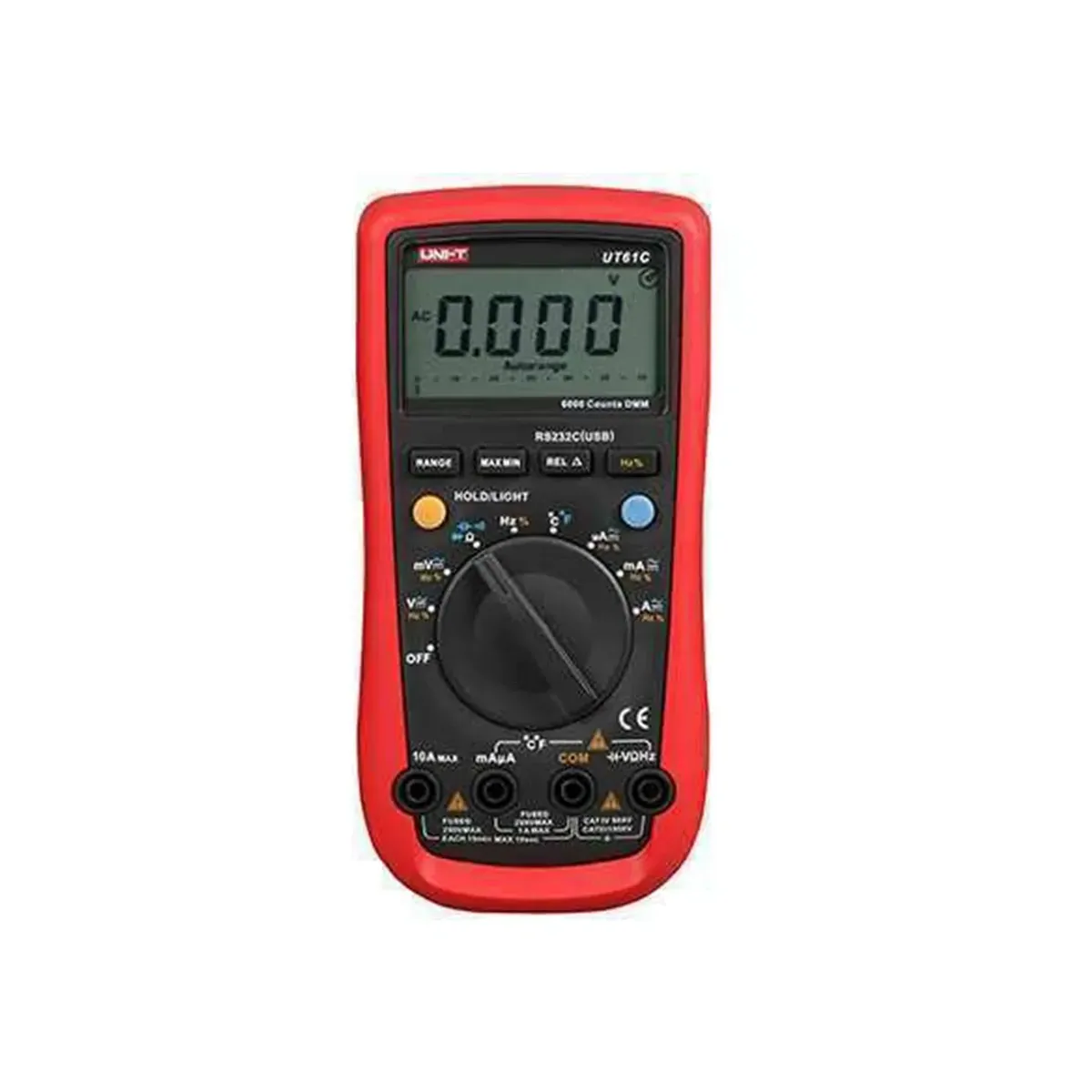

Unit UT61C Digital Multimeter
- Brand: Unit
- SKU: UT61C
- MPN: UT61C
- Price: 2192.72 TRY + VAT · incl. VAT 2631.26 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT61C Digital Multimeter. AC Current Measurement: 10 A; ±(1.2%+5). DC Current Measurement: 10 A; ±(1%+3). AC Voltage Measurement: 750 V; ±(1%+3). DC Voltage Measurement: 1000 V; ±(0.5%+1). Temperature Measurement: -40°C – 1000°C; ±(1.2%+3). Display Count: 6000. Resistance Measurement: 60 MΩ; ±(1%+2). Capacitance Measurement: 4000 μF; ±(3%+5). Frequency Measurement: 10 Hz – 10 MHz; ±(0.1%+4). AC Bandwidth: 45 Hz – 1 kHz. Other features: Duty Cycle Measurement: 0.1%–99.9; Power Source: 9 V 6F22 battery; Display Size: 65 × 43 mm; Weight: 370 g; Product Dimensions: 180 × 87 × 47 mm; Interfaces: RS-232; optional USB interface cable; Additional Functions: Auto range, MIN/MAX/REL, auto power off, LCD backlight, analog bar, low battery indication, diode/continuity, data hold.
| AC Current Measurement | 10 A; ±(%1.2+5) |
|---|---|
| AC Bandwidth | 45 Hz – 1 kHz |
| AC Voltage Measurement | 750 V; ±(%1+3) |
| Interfaces | RS-232; opsiyonel USB arayüz kablosu |
| Gram | 370 g |
| DC Current Measurement | 10 A; ±(%1+3) |
| DC Voltage Measurement | 1000 V; ±(%0.5+1) |
| Resistance Measurement | 60 MΩ; ±(%1+2) |
| Additional Functions | Otomatik kademe, MIN/MAX/REL, otomatik kapanma, LCD arka ışık, analog çubuk, düşük pil uyarısı, diyot/süreklilik, veri tutma |
| Display Size | 65 × 43 mm |
| Display Count | 6000 |
| Frequency Measurement | 10 Hz – 10 MHz; ±(%0.1+4) |
| Duty Cycle Measurement | %0.1–99.9 |
| Power Source | 9 V 6F22 pil |
| Capacitance Measurement | 4000 μF; ±(%3+5) |
| Color | Kırmızı ve gri |
| Temperature Measurement | -40°C – 1000°C; ±(%1.2+3) |
| Product Dimensions | 180 × 87 × 47 mm |
