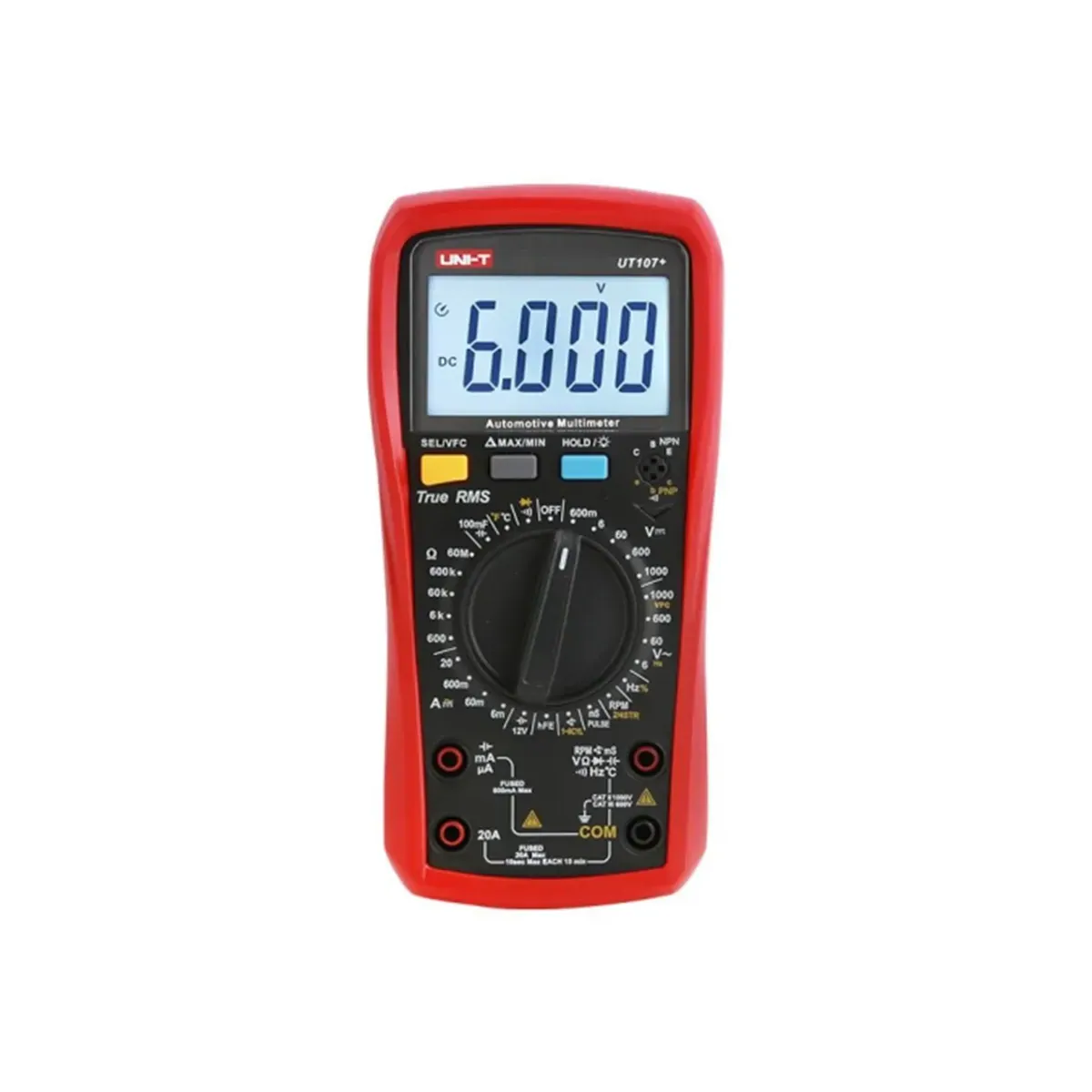

Unit UT107+ Automotive Multimeter
- Brand: Unit
- SKU: UT107+
- MPN: UT107+
- Price: 1553.18 TRY + VAT · incl. VAT 1863.82 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT107+ Automotive Multimeter is a digital multimeter model manufactured by UNI-T. It has a 6000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (10 A (20 A, max. 10 s)), AC current (10 A (20 A, max. 10 s)), resistance (60 MΩ), capacitance (100 mF), frequency (10 Hz – 10 MHz), temperature (−40 °C – 1000 °C), speed (RPM) (4 timed), cam angle (1CYL(0 – 356.4°) / 2CYL(0 – 178.2°) / 3CYL(0 – 118.8°) / 4CYL(0 – 89.1°) / 5CYL(0 – 71.3°) / 6CYL(0 – 59.4°) / 8CYL(0 – 44.5°)), pulse width (999.9mS), VFC voltage (1000 V). Other features: duty cycle measurement, high voltage warning, high voltage overload warning, high current alarm, low battery indicator (approx. < 2.4 V), backlight, auto power off (approx. 15 min), data hold, VFC (variable frequency drive) measurement, 12 V battery test, audible continuity test, diode test, transistor test, MAX, MIN, relative (REL) measurement. Safety category CAT II 1000 V / CAT III 600 V. Power source: AAA 2 × 1.5 V battery. Box contents: English user manual, test probes, batteries, temperature probe.
| 12 V Battery Test | Available |
|---|---|
| AC Current Measurement | 6 mA / 60 mA / 600 mA / 10 A (20 A, en fazla 10 s) · ±(%1,0+8) |
| AC Voltage Measurement | 6 V / 60 V / 600 V / 1000 V · ±(%0,8+3) |
| Backlight | Available |
| Gram | 348 g (piller dahil) |
| DC Current Measurement | 6 mA / 60 mA / 600 mA / 10 A (20 A, en fazla 10 s) · ±(%0,8+8) |
| DC Voltage Measurement | 600 mV / 6 V / 60 V / 600 V / 1000 V · ±(%0,5+3) |
| Pulse Width | 999.9mS (doğruluk: ±(1.5%+10)) |
| Pulse Width Measurement | 999,9mS · ±(%1,5+10) |
| RPM Measurement | 2 zamanlı · ±(%3,0+5); 4 zamanlı · ±(%3,0+3) |
| Speed Measurement | 2STR (doğruluk: ±(3.0%+5)); 4STR (doğruluk: ±(3.0%+3)) |
| Resistance Measurement | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ · ±(%0,8+3) |
| Low Battery Indication | < Yaklaşık 2.4V |
| Additional Functions | Görev döngüsü ölçümü, yüksek gerilim uyarısı, yüksek gerilim aşırı load uyarısı, yüksek akım alarmı, düşük pil göstergesi (yaklaşık < 2,4 V), arka ışık, otomatik kapanma (yaklaşık 15 min), veri tutma, VFC (frekans sürücülü) ölçüm, 12 V akü testi, sesli süreklilik testi, diyot testi, transistör testi, MAX, MIN, bağıl (REL) ölçüm |
| Display Count | 6000 |
| Frequency Measurement | 10 Hz – 10 MHz · ±(%0,1+5) |
| Duty Cycle Measurement | Available |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | AAA 2 × 1,5 V pil |
| Range Selection | Manuel |
| Dwell Angle Measurement | 1CYL(0 – 356,4°) / 2CYL(0 – 178,2°) / 3CYL(0 – 118,8°) / 4CYL(0 – 89,1°) / 5CYL(0 – 71,3°) / 6CYL(0 – 59,4°) / 8CYL(0 – 44,5°) · ±(%3,0+5) |
| Capacitance Measurement | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF / 100 mF · ±(%3+10) |
| MIN/MAX and Relative Measurement | Available |
| Auto Power Off | Yaklaşık 15 dakika |
| Standard Accessories | İngilizce kullanım kılavuzu, test probları, piller, sıcaklık probu |
| Continuity/Diode/Transistor | Available |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+3) |
| VFC Voltage Measurement | 1000 V · ±(%2,0+10) |
| Data Hold | Available |
| High Current Alarm | Available |
| High Voltage Alarm | Available |
| Product Dimensions | 183 × 88 × 56 mm |
