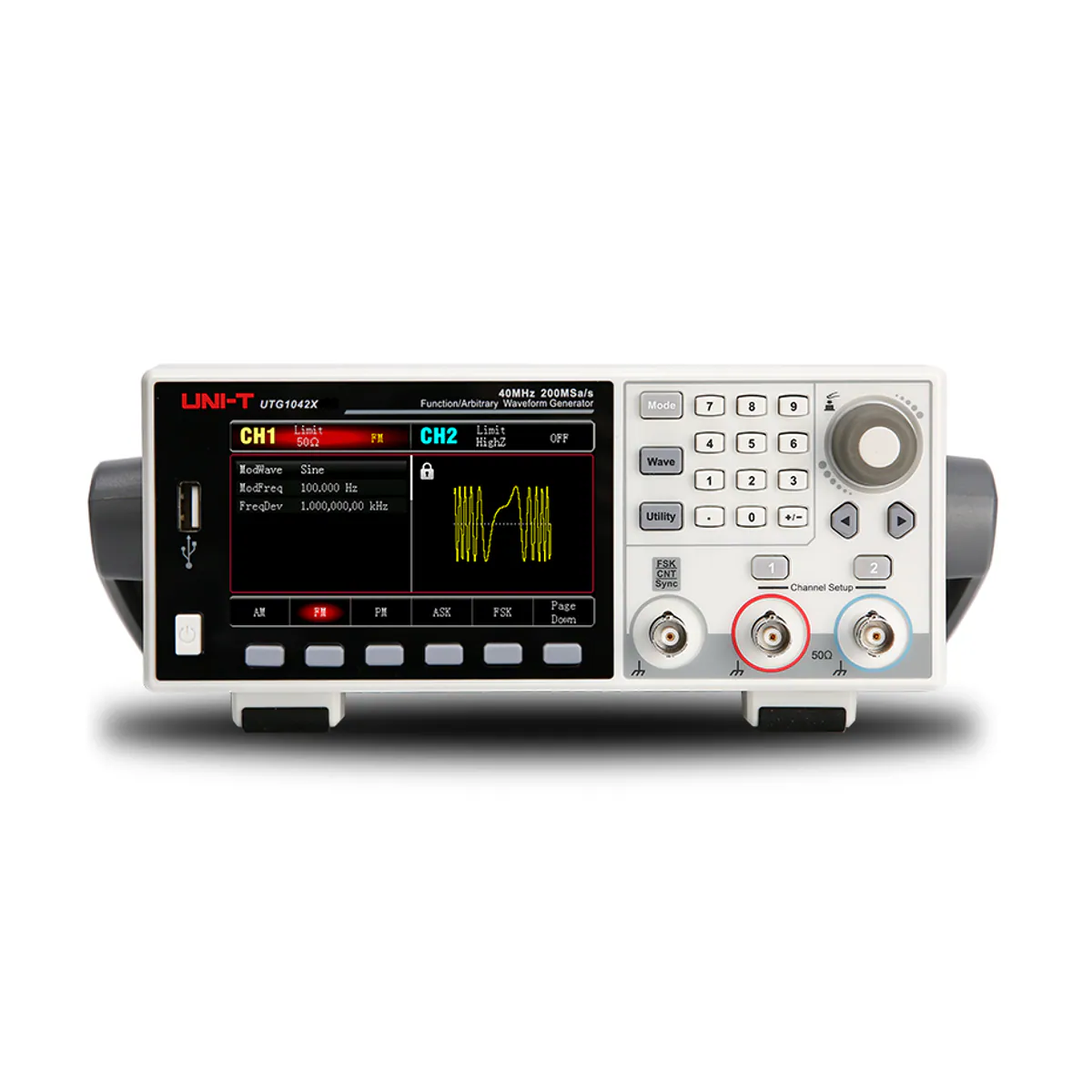

Unit UTG1042X 40MHz 2-Channel 16-Bit Function/Arbitrary Waveform Generator
- Brand: Unit
- SKU: UTG1042X
- MPN: UTG1042X
- Model: 40 MHz (sinüs)
- Price: 25124.92 TRY + VAT · incl. VAT 30149.90 TRY
- Availability: Made to order
- Function and Signal Generators
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UTG1042X is a UTG1000X series two-channel, 16-bit function/arbitrary waveform generator that outputs sine waves up to 40 MHz and square waves up to 20 MHz. Technical values: two channels; sine 1 µHz to 40 MHz, square and pulse 1 µHz to 20 MHz, ramp 1 µHz to 1 MHz, arbitrary 1 µHz to 10 MHz; sample rate 200 MSa/s; vertical resolution 16-bit; arbitrary waveform length 4 kpts; square wave rise/fall time < 16 ns; output amplitude 1 mVpp to 10 Vpp into 50 Ω (up to 20 MHz); display 4.3-inch TFT LCD (480 × 272); dimensions 215 × 103 × 316 mm, weight 2.2 kg. Into a high-impedance load both channels deliver full 20 Vpp amplitude even at 10 MHz, and the generator includes AM, FM, PM, ASK, FSK, PSK and PWM modulation, linear and logarithmic sweep, N-cycle, gated and infinite burst, a 100 mHz to 200 MHz frequency counter and an arbitrary waveform editor. It is used as a signal source in teaching, test and production laboratories.
| Channel Count | 2 |
|---|---|
| Maximum Frequency | 40 MHz (sinüs) |
| Sampling Rate | 200 MSa/s |
| Vertical Resolution | 16 bit |
| Waveforms | Sinüs, kare, rampa, darbe, gürültü, DC, keyfi dalga (6 standart dalga ve 200 dahili keyfi dalga) |
| Operating Modes | Çıkış kapılama, sürekli, modülasyon, frekans tarama (sweep), burst (darbe katarı) |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM |
| Sine Frequency Range | 1 µHz – 40 MHz |
| Square/Pulse Frequency Range | 1 µHz – 20 MHz |
| Ramp Frequency Range | 1 µHz – 1 MHz |
| Noise Bandwidth | 40 MHz (−3 dB, tipik) |
| Frequency Resolution | 1 µHz |
| Frequency Accuracy | Başlangıç doğruluğu < 30 ppm; sıcaklık kararlılığı ±2 ppm/°C (0 – 40 °C); ilk yıl yaşlanma ±50 ppm |
| Arbitrary Waveform | 1 µHz – 10 MHz; 4 kpts dalga uzunluğu; 16 bit; 200 dalgalık kalıcı hafıza |
| Rise/Fall Time | Kare dalga < 16 ns (1 Vpp, 50 Ω) |
| Output Amplitude | 50 Ω: ≤ 20 MHz'de 1 mVpp – 10 Vpp, ≤ 40 MHz'de 1 mVpp – 5 Vpp; yüksek empedans: ≤ 20 MHz'de 2 mVpp – 20 Vpp, ≤ 40 MHz'de 2 mVpp – 10 Vpp |
| Output Impedance | 50 Ω (tipik) |
| DC Offset Range | ±5 V (50 Ω); ±10 V (yüksek empedans) |
| Frequency Counter | 100 mHz – 200 MHz; 7 haneli donanım frekans sayacı |
| Interfaces | USB Host, USB Device |
| Certifications | EMC: 2014/30/EU, IEC/EN 61326-1:2021, IEC/EN 61326-2-1:2021, CISPR 11 Sınıf B grup 1; güvenlik: EN 61010-1:2010+A1:2019, EN IEC 61010-2-030:2021+A11:2021, BS EN 61010-1:2010+A1:2019, BS EN IEC 61010-2-030:2021+A11:2021, UL 61010-1:2012 Ed.3, UL 61010-2-030:2018 Ed.2, CSA C22.2#61010-1:2012 Ed.3, CSA C22.2#61010-2-030:2018 Ed.2 |
| Operating Temperature | 10 – 40 °C (saklama: −20 – 60 °C) |
| Supply Voltage | 100 – 240 V AC (±%10), 50/60 Hz; 100 – 120 V AC (±%10), 400 Hz; 20 W'tan az |
| Display Size | 4.3 inç TFT LCD, WVGA 480 × 272 |
| Product Dimensions | 215 × 103 × 316 mm (G × Y × U) |
| Gram | 2.2 kg |
| Standard Accessories | Güç kablosu, USB kablo (UT-D14), BNC-BNC kablo (UT-L45), BNC-kırmızı/siyah timsah klipsli kablo (UT-L02A) |
| Power Amplifier | None |
| Total Harmonic Distortion | < %0.2 (DC – 20 kHz, 1 Vpp) |
| Harmonic Distortion | Tipik (0 dBm): DC – 1 MHz −60 dBc, 1 – 10 MHz −55 dBc, 10 – 40 MHz −50 dBc |
