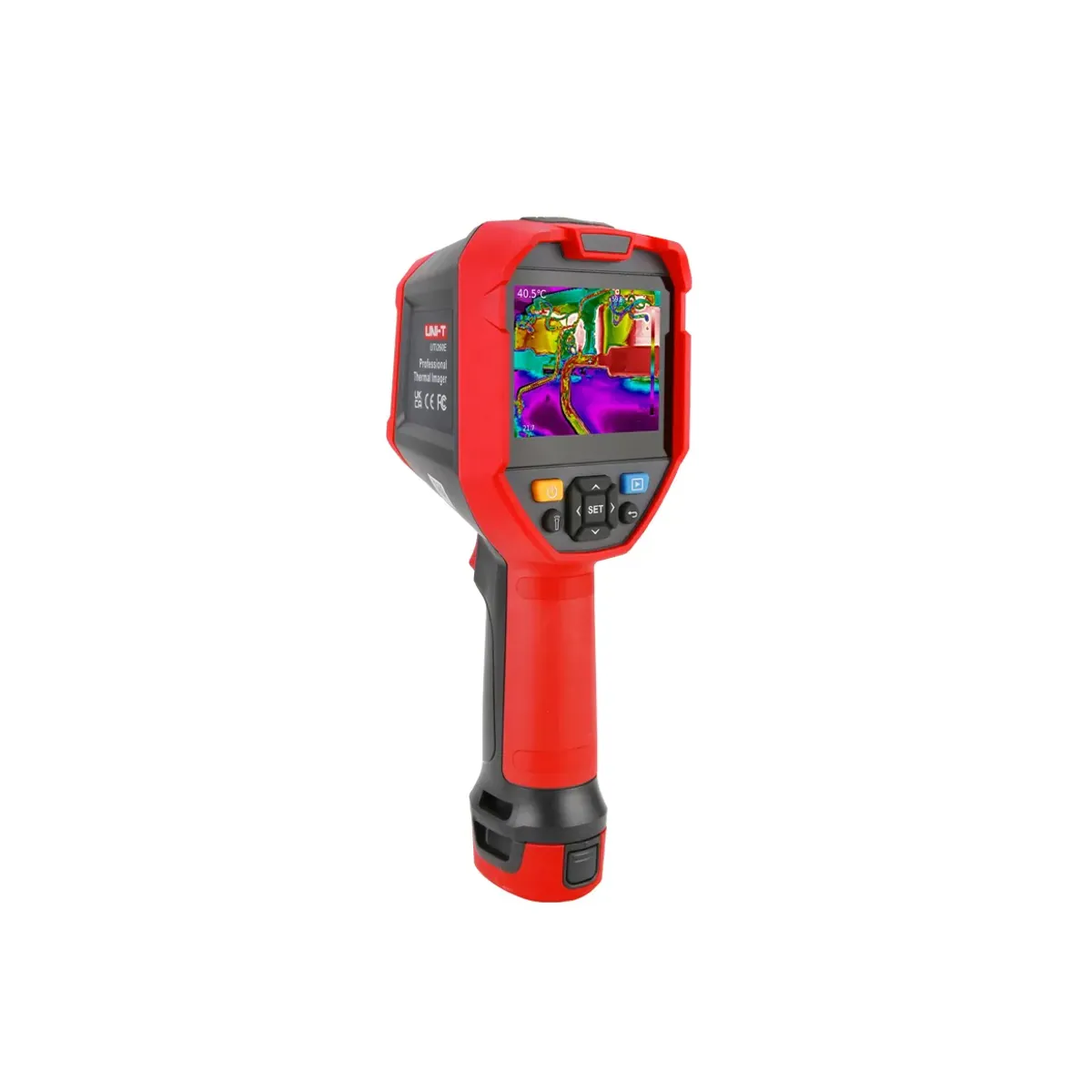

Unit UTi720E 256x192 Professional Thermal Camera
- Brand: Unit
- SKU: UTİ720E
- MPN: UTI720E
- Price: 27409.01 TRY + VAT · incl. VAT 32890.81 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi720E 256x192 Professional Thermal Camera. Infrared Resolution: 256×192. Temperature Range: -20°C~550°C. Display Size: 3.5‘’ IPS (640×480). Field of View: 56°×42.2°. Thermal Sensitivity (NETD): ≤50mK. Spatial Resolution (IFOV): 3.8mrad. Frame Rate: ≤25Hz. Spectral Response: 8~14μm. Focus: Fixed focus. Accuracy: ±2°C or ±2%, whichever is greater. Other features: Emissivity: 0.01~1.00 adjustable (0.95 default); Color Palettes: 7 (White hot, Black hot, Red hot, Ironbow, High-contrast rainbow, Rainbow, Lava); Display Modes: Thermal, Visible light image, Fused image, PIP; On-Screen Analysis: 5 points/1 lines/3 rectangles/3 circles; Digital Camera Resolution: 2MP; Digital Zoom: 2x, 4x; Temperature Alarm: Icon, LED flashlight; Isotherm: 6 (Auto/Ratio/Below/Above/Zone/Manual).
| Analysis Software | PC+APP |
|---|---|
| Gram | 654 g |
| Storage Capacity | 16GB Micro SD kart |
| Digital Zoom | 2x, 4x |
| Accuracy | ±2°C veya ±2% hangisi büyükse |
| Drop Resistance | 2 m |
| Display Size | 3.5‘’IPS (640×480) |
| On-Screen Analysis | 5 nokta/1 çizgi/3 dikdörtgen/3 daire |
| Emissivity | 0.01~1.00 ayarlanabilir (0.95 varsayılan) |
| Image and Video File Format | JPEG |
| Display Modes | Termal, Görünür ışık görüntüsü, Birleştirilmiş görüntü, PIP |
| Field of View | 56°×42.2° |
| Power Source | Çıkarılabilir Li-ion pil paketi (3.7V 5200mAh) |
| IP Rating | IP54 |
| Frame Rate | ≤25Hz |
| Infrared Resolution | 256×192 |
| Focus | Sabit odak |
| Battery Life | ≥ 3 saat (Wi-Fi kapalıyken) |
| Color Palettes | 7 (White sıcak, Black sıcak, Kırmızı sıcak, Demir renk skalası, Yüksek kontrastlı gökkuşağı, Gökkuşağı, Lav) |
| Digital Camera Resolution | 2MP |
| Spectral Response | 8~14μm |
| Temperature Alarm | Simge, LED el feneri |
| Temperature Range | -20°C~550°C |
| Thermal Sensitivity (NETD) | ≤50mK |
| USB Interface | Type-C |
| Spatial Resolution (IFOV) | 3.8mrad |
| Wi-Fi | Available |
| Product Dimensions | 260mm×97mm×99mm |
| Isotherm | 6 (Otomatik/Oran/Altı/Üstü/Bölge/Manuel) |
