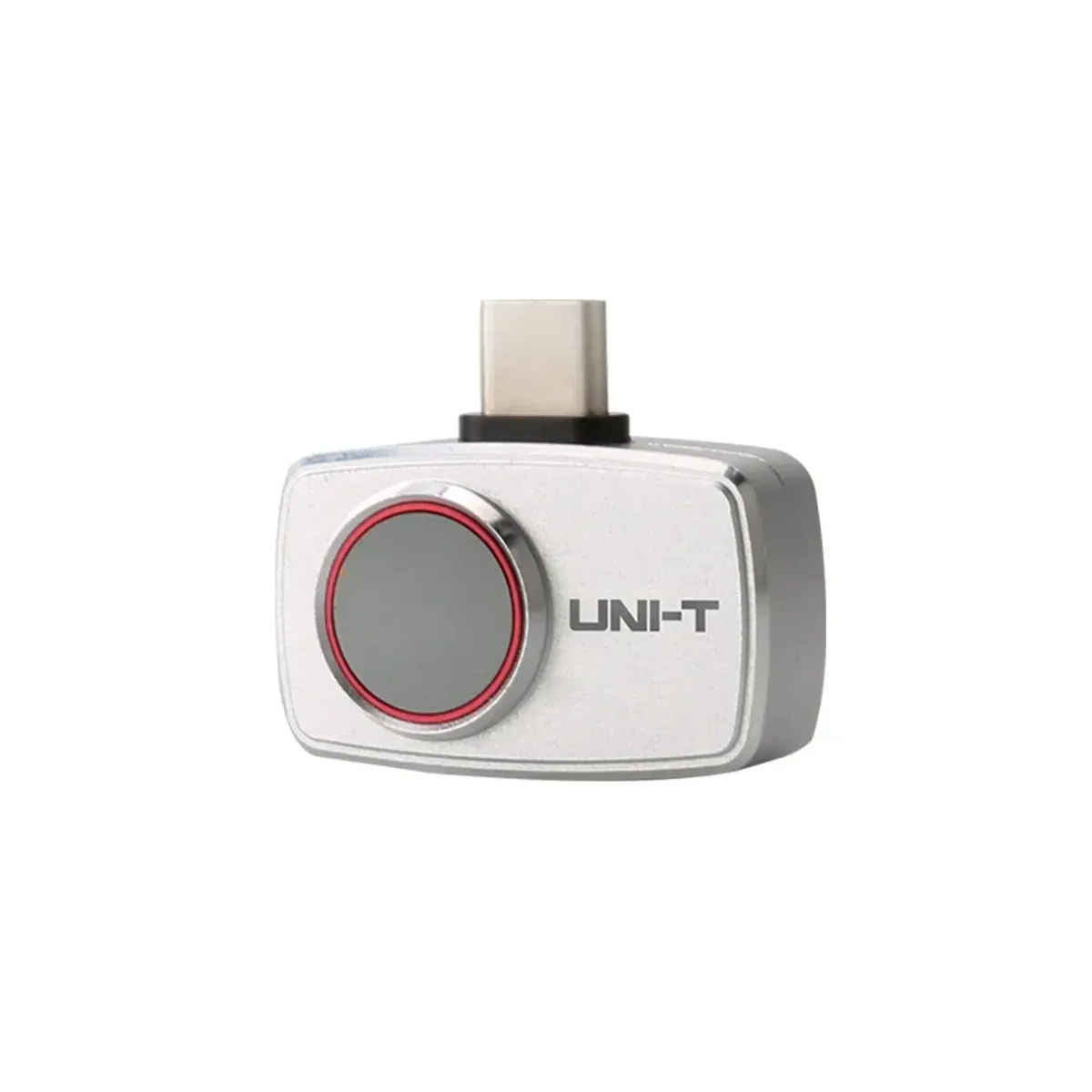

Unit UTi720M 256x192 Android Phone Thermal Camera
- Brand: Unit
- SKU: UTI720M
- MPN: UTI720M
- Price: 12562.46 TRY + VAT · incl. VAT 15074.95 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi720M 256x192 Android Phone Thermal Camera. Infrared Resolution: 256×192. Temperature Measurement Range: -20°C ~ 200°C. Field of View: 56°×42.2°. Thermal Sensitivity (NETD): ≤50mK @25°C. Spatial Resolution (IFOV): 3.8mrad. Frame Rate: ≤25Hz. Spectral Response: 8~14μm. Focus: Fixed focus. Lens Focal Length: 3.2mm. Accuracy: ±2° or ±2%, whichever is greater. Other features: Emissivity: 0.01~1.00 adjustable (0.95 default); Color Palettes: 7 (White hot, Lava, Ironbow, Black hot, Red hot, Rainbow, High-contrast rainbow); Display Modes: Thermal, Fused image, PIP; On-Screen Analysis: 3 points/3 lines/3 rectangles; Temperature Alarm: Yes; Video Recording: Yes; USB Interface: Type C; Drop Resistance: 1m.
| Gram | 12 g |
|---|---|
| Accuracy | ±2° veya ±2% hangisi büyükse |
| Drop Resistance | 1 m |
| On-Screen Analysis | 3 nokta/3 çizgi/3 dikdörtgen |
| Emissivity | 0.01~1.00 ayarlanabilir (0.95 varsayılan) |
| Image and Video File Format | JPEG, MP4 |
| Display Modes | Termal, Birleştirilmiş görüntü, PIP |
| Field of View | 56°×42.2° |
| Frame Rate | ≤25Hz |
| Infrared Resolution | 256×192 |
| Lens Focal Length | 3.2 mm |
| Focus | Sabit odak |
| Color Palettes | 7 (White sıcak, Lav, Demir renk skalası, Black sıcak, Kırmızı sıcak, Gökkuşağı, Yüksek kontrastlı gökkuşağı) |
| Spectral Response | 8~14μm |
| Temperature Alarm | Available |
| Temperature Range | -20°C ~ 200°C |
| Thermal Sensitivity (NETD) | ≤50mK @25°C |
| USB Interface | Type C |
| Spatial Resolution (IFOV) | 3.8mrad |
| Video Recording | Available |
| Product Dimensions | 33mm×28.2mm×11.3mm |
