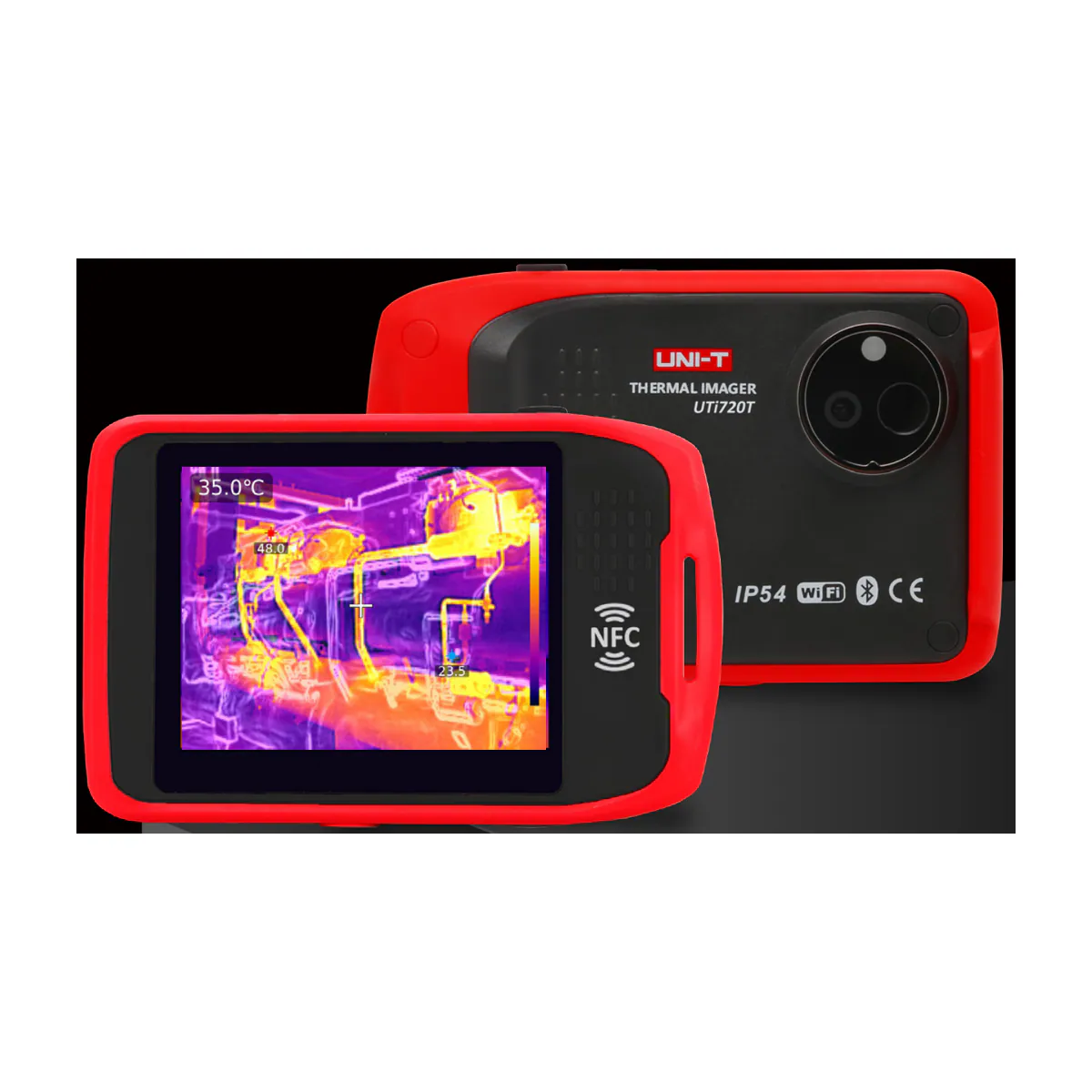

Unit UTi720T 256 x 192 Pocket-Sized Thermal Imaging Camera with 3.5 in Touchscreen
- Brand: Unit
- SKU: UTI720T
- MPN: UTi720T
- Price: 25124.92 TRY + VAT · incl. VAT 30149.90 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi720T is a pocket-sized thermal imaging camera weighing 213 g, with a 3.5 in touchscreen and 256 x 192 resolution. The display is 640 × 480. Pixel size is 12 µm, thermal sensitivity ≤50 mK, frame rate ≤25 Hz, field of view 56° × 42° and temperature range -20°C to 550°C, with an accuracy of ±2°C or ±2%, whichever is greater. Built-in NFC sets up the Wi-Fi connection, and Bluetooth passes readings such as current, voltage and humidity from multimeters, clamp meters and humidity meters to the screen (Smart Meter). It also provides video recording, a 2 MP camera and PC + app analysis. The 1800 mAh Li-ion battery runs for at least 2 hours, internal storage is 12 GB, and the camera is rated IP54 and 1 m drop proof. Dimensions are 133.05 × 85.4 × 24.1 mm.
| Infrared Resolution | 256 x 192 |
|---|---|
| Display Size | 3.5 inç TFT dokunmatik (640 × 480) |
| Pixel Size | 12 µm |
| Frame Rate | ≤25 Hz |
| Thermal Sensitivity (NETD) | ≤50 mK |
| Focus | Sabit odak |
| Field of View | 56° (yatay) × 42° (dikey) |
| Temperature Range | -20°C ~ 550°C |
| Accuracy | ±2°C veya ±%2, hangisi büyükse |
| Display Modes | Termal, görünür ışık, birleştirilmiş görüntü (Fusion), PIP |
| On-Screen Analysis | 5 nokta / 1 çizgi / 3 dikdörtgen / 3 daire |
| Isotherm | Otomatik / Manuel / Üstünde / Altında / Aralık / Oran |
| Temperature Alarm | LCD animasyonu ve LED el feneri |
| Temperature Tracking | Var (en yüksek / en düşük) |
| Digital Camera Resolution | 2 MP |
| Digital Zoom | 1.0x ~ 8x sürekli |
| Video Recording | Available |
| Wi-Fi | Available |
| LED Lighting | Available |
| Analysis Software | PC + APP |
| Power Source | 1800 mAh şarj edilebilir Li-ion pil |
| Battery Life | ≥2 saat (Wi-Fi kapalıyken) |
| USB Interface | Type-C |
| Storage Capacity | Dahili 12 GB |
| IP Rating | IP54 |
| Drop Resistance | 1 m |
| Certifications | CE, FCC, RoHS |
| Languages | EN, FR, DE, ES, IT, SV, PL, CS |
| Gram | 213 g |
| Product Dimensions | 133.05 × 85.4 × 24.1 mm |
| Standard Accessories | Type-C USB kablosu, el askısı, bez çanta, hızlı başlangıç kılavuzu, belge indirme kılavuzu |
| Image and Video File Format | Radyometrik JPEG / AVI |
| Smart Meter Connectivity | Var (Smart Meter, Bluetooth) |
| NFC Connection | Available |
| Color Palettes | White sıcak, Black sıcak, Kırmızı sıcak, Demir (Ironbow), Lav, Gökkuşağı, Yüksek kontrastlı gökkuşağı |
| Bluetooth | Var (ölçü aletleri için) |
