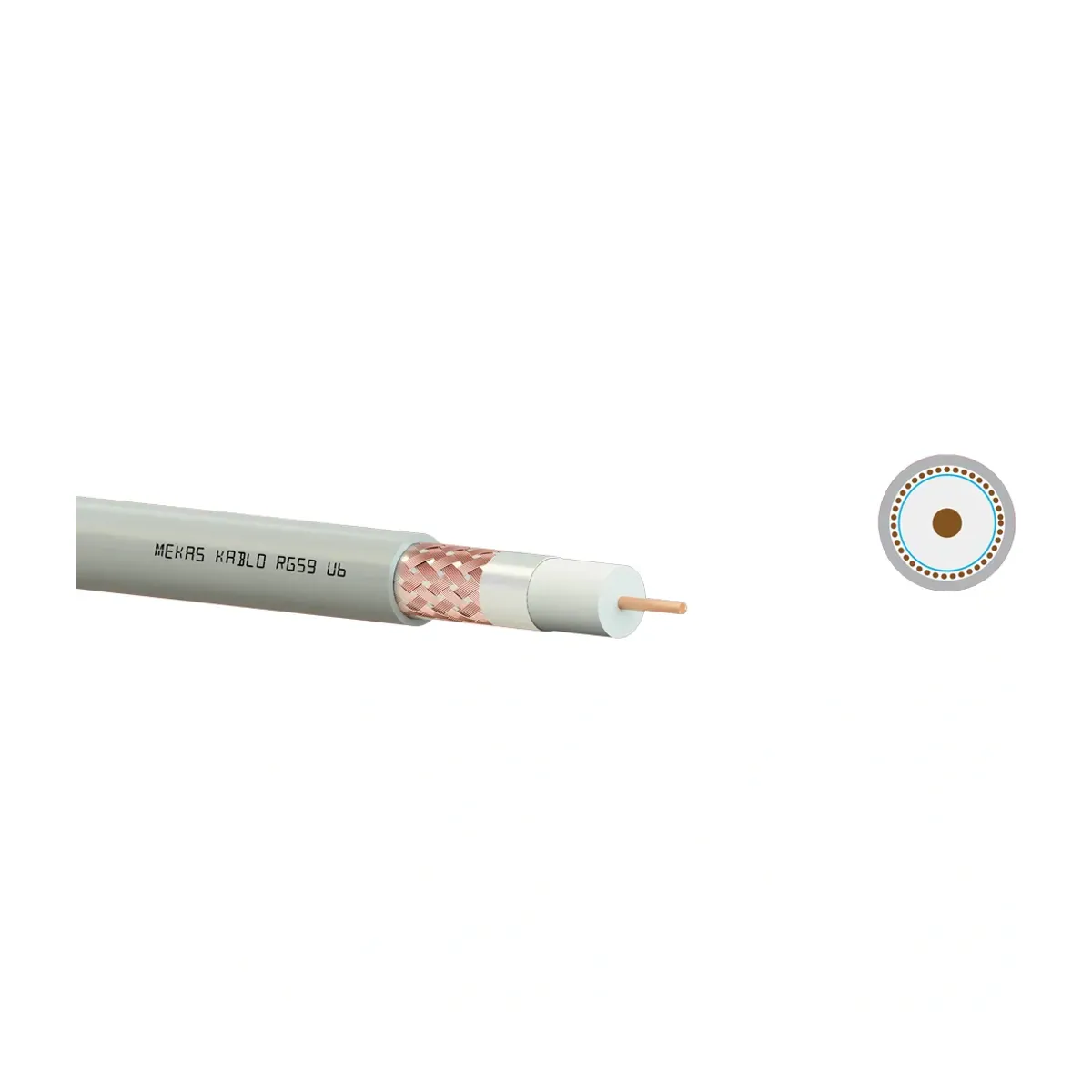

0.80mm Coaxial Satellite TV Broadcast Cable, RG59 U6 - Mekas
- Brand: Mekas Kablo
- SKU: 50892
- MPN: 50892
- Availability: Out of stock
- Satellite-TV Broadcast Cables
- Mekas Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
0.80mm Coaxial Satellite TV Broadcast Cable, RG59 U6 - Mekas. Satellite-TV Broadcast Cables are used in panel control, intercom, coaxial and silicone heat-resistant lines. The product is sold per meter. Stock code: 50892.
| Conductor | 0,80 mm elektrolitik bakır tel |
|---|---|
| Insulation Material | 3,70 mmØ fiziksel köpüklü PE |
| Capacitance | 54 ± 2 pF/mt |
| Impedance | 75 ± 3 Ω |
| Velocity of Propagation | % 82 ± 2 |
| Insulation Resistance | 2 GΩ·km |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D mm |
| Attenuation (20 °C, max.) | 50 MHz: 5.95 dB/100 m; 200 MHz: 11.71 dB/100 m; 470 MHz: 18.08 dB/100 m; 860 MHz: 24.79 dB/100 m; 1000 MHz: 26.85 dB/100 m; 2150 MHz: 40.62 dB/100 m; 2400 MHz: 43.16 dB/100 m; 3000 MHz: 48.87 dB/100 m |
| Cable Shield | CU-PET bant %100 - bakır tel örgü |
