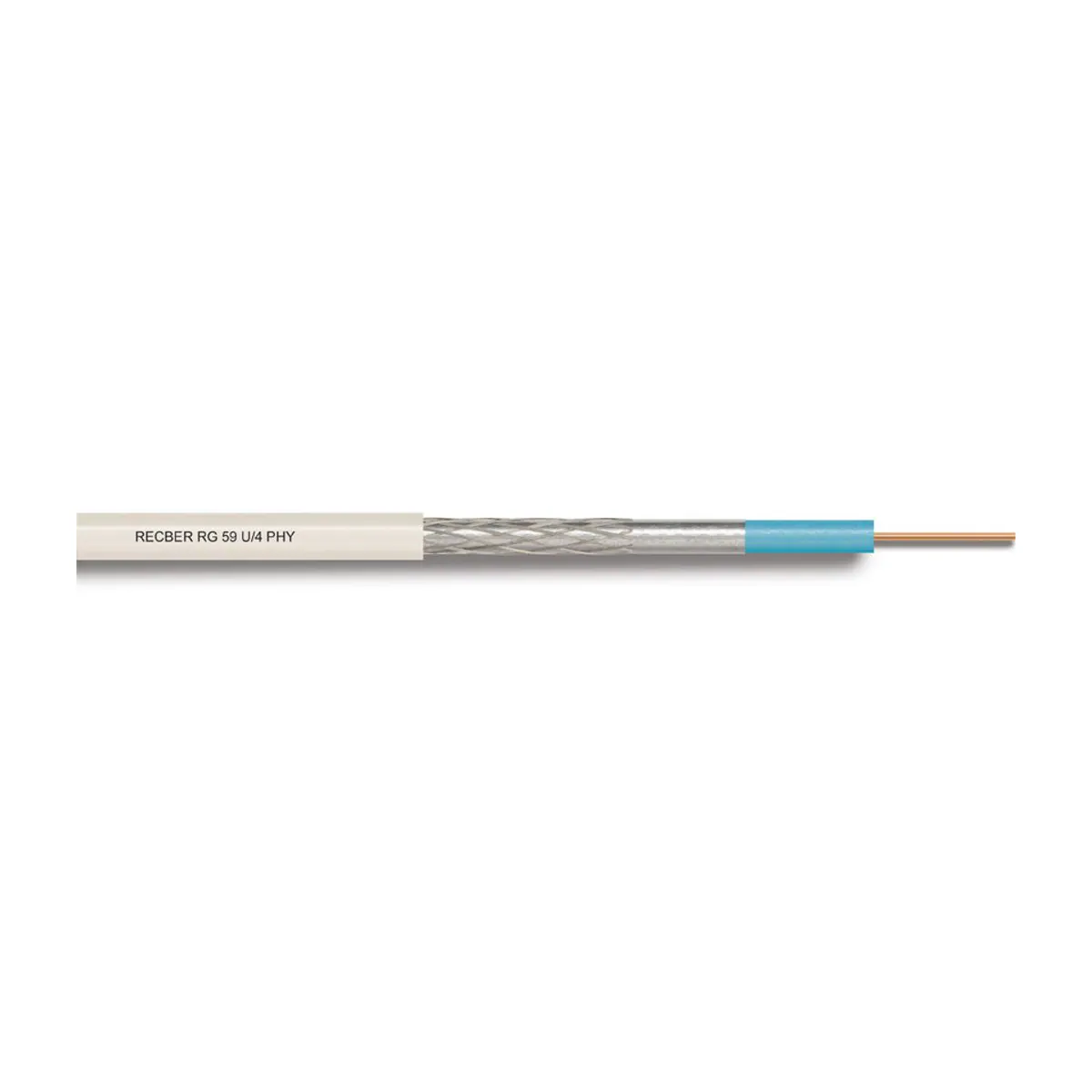

Reçber RG 59 U/4 PHY-PVC Cu/Al Cable
- Brand: Reçber Kablo
- SKU: 307054
- MPN: 307054
- Price: 1417.80 TRY + VAT · incl. VAT 1701.36 TRY
- Availability: In stock
- Satellite-TV Broadcast Cables
- Reçber Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber RG 59 U/4 PHY-PVC Cu/Al Cable is a product in the Reçber Kablo brand's coaxial cable product family.
| Conductor | Elektrolitik bakır tel, Ø 0,81mm (AWG20), Class 1, IEC 60228 |
|---|---|
| Insulation Material | Fiziksel köpüklü PE, Ø 3,70mm (70°C, EN 50290-2-23) |
| Cable Shield | Al-Pet folyo min. %100 kapama; Alüminyum tel örgü |
| Outer Sheath Material | PVC (TM51 70°C, EN 50290-2-22) |
| Outer Sheath Colour | White (RAL 9003) |
| Operating Voltage | Max. 1000 V |
| Test Voltage | 2500 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 2 GΩ·km |
| Standards | EN 50117, IEC 61196 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 5.8 mm |
| Impedance | 75 ± 3 Ω |
| Capacitance | 54 ± 2 pF/m |
| Velocity of Propagation | % 82 ± 2 |
| Attenuation (20 °C, max.) | 50 MHz: 5.95 dB/100 m; 200 MHz: 11.71 dB/100 m; 470 MHz: 18.08 dB/100 m; 860 MHz: 24.79 dB/100 m; 1000 MHz: 26.85 dB/100 m; 2150 MHz: 40.62 dB/100 m; 2400 MHz: 43.16 dB/100 m; 3000 MHz: 48.87 dB/100 m |
| Return Loss | 5-470 MHz: > 20 dB; 470-1000MHz: > 18 dB; 1000-2000 MHz: > 16 dB; 2000-3000 MHz: > 15 dB |
