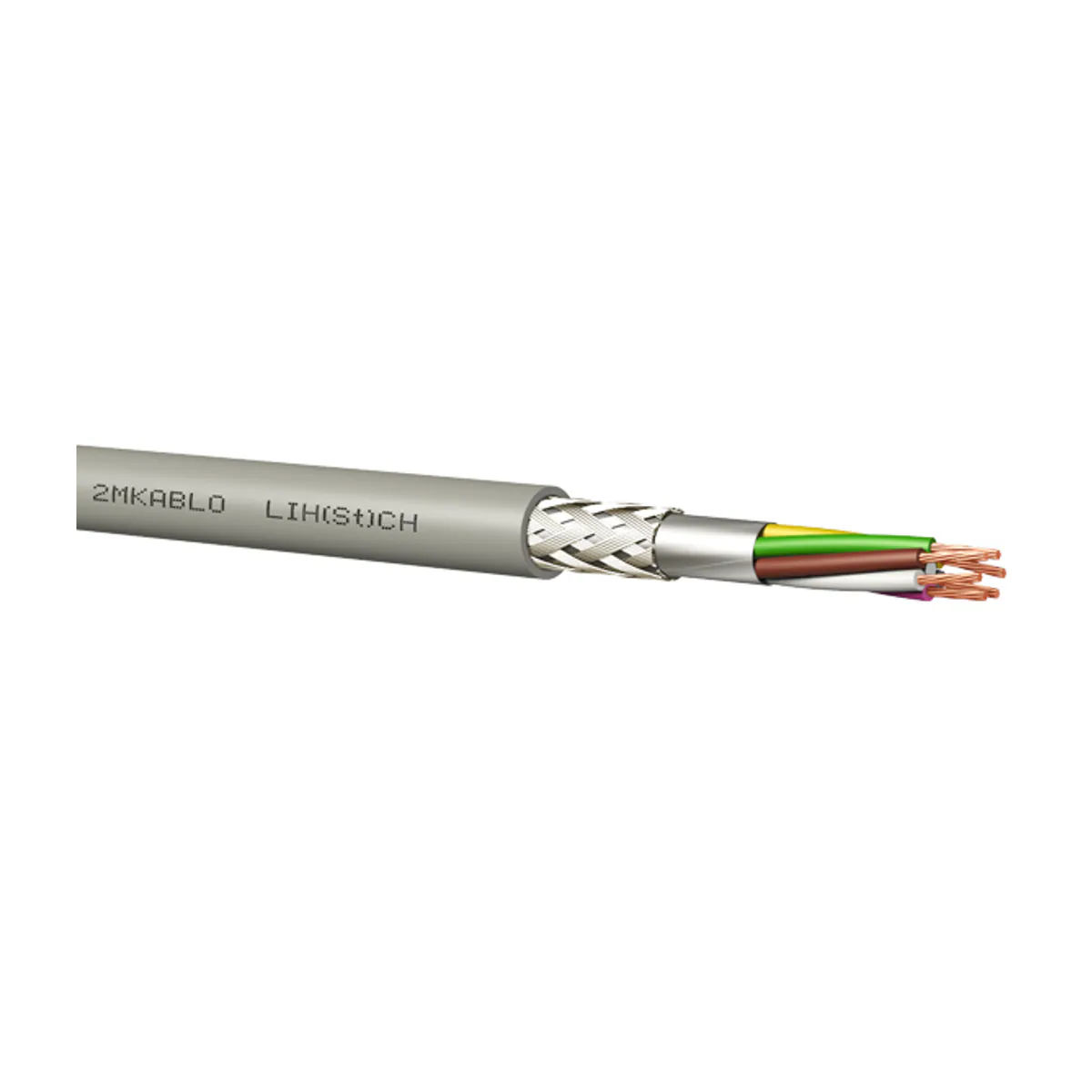

2M Kablo LIH(St)CH Halogen Free HFFR 2x0.75 mm2 Gray
- Brand: 2M Kablo
- SKU: 3C00008056-1
- MPN: 3C00008056-1
- Price: 720.00 TRY + VAT · incl. VAT 864.00 TRY
- Availability: Made to order
- LIH(St)CH Signal Cables
- 2M Kablo LIH(St)CH Signal Cables
- Selection guide: LIH(St)CH Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo LIH(St)CH Halogen-Free HFFR 2x0.75 mm2 Gray is a product in the control and signal cable product family of the 2M Kablo brand. Key technical features: Cable type: LIH(ST)CH; Core cross-section: 2x0.75 mm2.
| Core Cross-Section | 2x0,75 mm² |
|---|---|
| Cable Type | LIH(ST)CH |
| Conductor | Bükülü Tavlı Bakır (IEC/EN 60228, Class 5, 0.34 mm²: Class 2) |
| Insulation Material | HFFR (EN 50290-2-26) |
| Core Colour Code | DIN 47100 (4 damar renkleri, beyaz, sarı, kahve, yeşil) |
| Stranding | Damarlar birlikte bükülür |
| Cable Shield | 1. Ekran: Al-PES Bant; 2. Ekran: Kalaylı Bakır Tel Örgü |
| Outer Sheath Material | HFFR (EN 50290-2-27) |
| Outer Sheath Colour | RAL 7001 - Grey |
| Standards | VDE 0812, TS 13755 |
| Insulation Resistance | >200 MΩ·km |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı; Flexible: 15 x Kablo Çapı |
| Flame Retardance / Fire Performance | Alev Geciktirme: IEC/EN 60332-1; Duman Yoğunluğu: IEC/EN 61034-2; Halojen Asit Gaz Miktarı: IEC/EN 60754-1; Korozif Gaz Ölçümü: IEC/EN 60754-2 |
| Inductance | 0.65 mH/km (yaklaşık) |
| Operating Voltage | 300 V / 500 V |
| Conductor Resistance | ≤ 26 Ω/km |
| Capacitance | Damar - Damar: ≤ 110 nF/km; Damar - Ekran: ≤ 170 nF/km (800Hz) |
| Outer Diameter | 5.6 mm (±5%) |
| Copper Weight | 20 kg/km |
