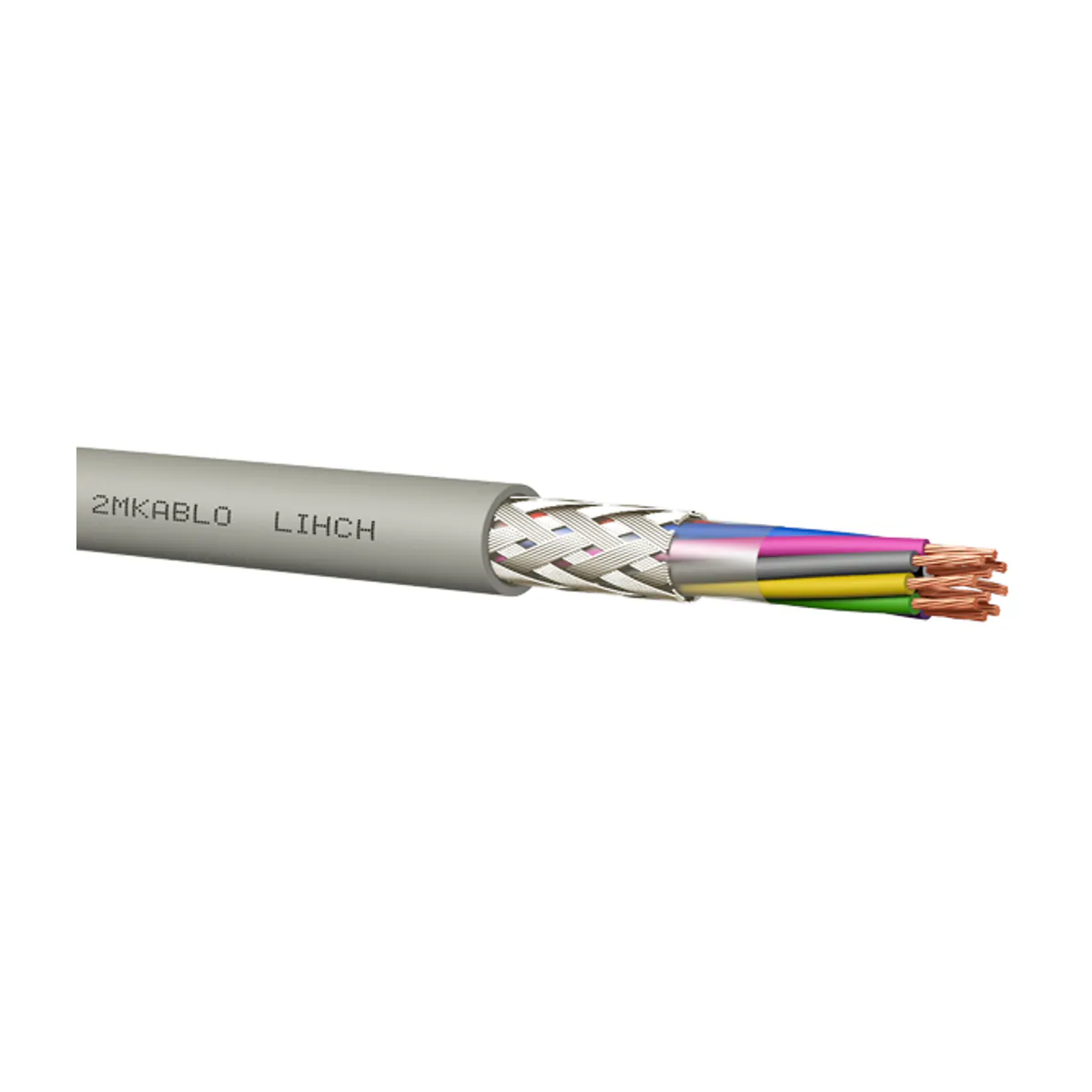

2M Kablo LIHCH Halogen Free HFFR 6x0.22 mm2 Gray
- Brand: 2M Kablo
- SKU: 3C00001990-1
- MPN: 3C00001990-1
- Price: 6297.00 TRY + VAT · incl. VAT 7556.40 TRY
- Availability: Made to order
- LIHCH Signal Cables
- 2M Kablo LIHCH Signal Cables
- Selection guide: LIHCH Halogen-Free Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo LIHCH Halogen-Free HFFR 6x0.22 mm2 Gray is a product in the LIHCH control and signal cable product family of the 2M Kablo brand. Key technical features: Shielded control and signal cable; Cable type: LIHCH; Core cross-section: 6x0.22 mm2.
| Core Cross-Section | 6x0,22 mm² |
|---|---|
| Cable Type | LIHCH |
| Conductor | Bükülü Tavlı Bakır (IEC/EN 60228, Class 5, 0.34 mm²: Class 2) |
| Insulation Material | HFFR (EN 50290-2-26) |
| Core Colour Code | DIN 47100 (4 damar renkleri, beyaz, sarı, kahve, yeşil) |
| Stranding | Damarlar birlikte bükülür |
| Separator Tape | PES Bant |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | HFFR (EN 50290-2-27) |
| Outer Sheath Colour | RAL 7001 - Grey |
| Standards | VDE 0812, TS 13755 |
| Insulation Resistance | >200 MΩ·km |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı; Flexible: 15 x Kablo Çapı |
| Flame Retardance / Fire Performance | CPR Sınıfı: B2ca s1a d1 a1; Alev Geciktirme: IEC/EN 60332-1; Duman Yoğunluğu: IEC/EN 61034-2; Halojen Asit Gaz Miktarı: IEC/EN 60754-1; Korozif Gaz Ölçümü: IEC/EN 60754-2 |
| Inductance | 0.65 mH/km (yaklaşık) |
| Operating Voltage | 250 V |
| Test Voltage | 1200 V |
| Conductor Resistance | ≤ 85 Ω/km |
| Capacitance | Damar - Damar: ≤ 100 nF/km; Damar - Ekran: ≤ 150 nF/km (800Hz) |
