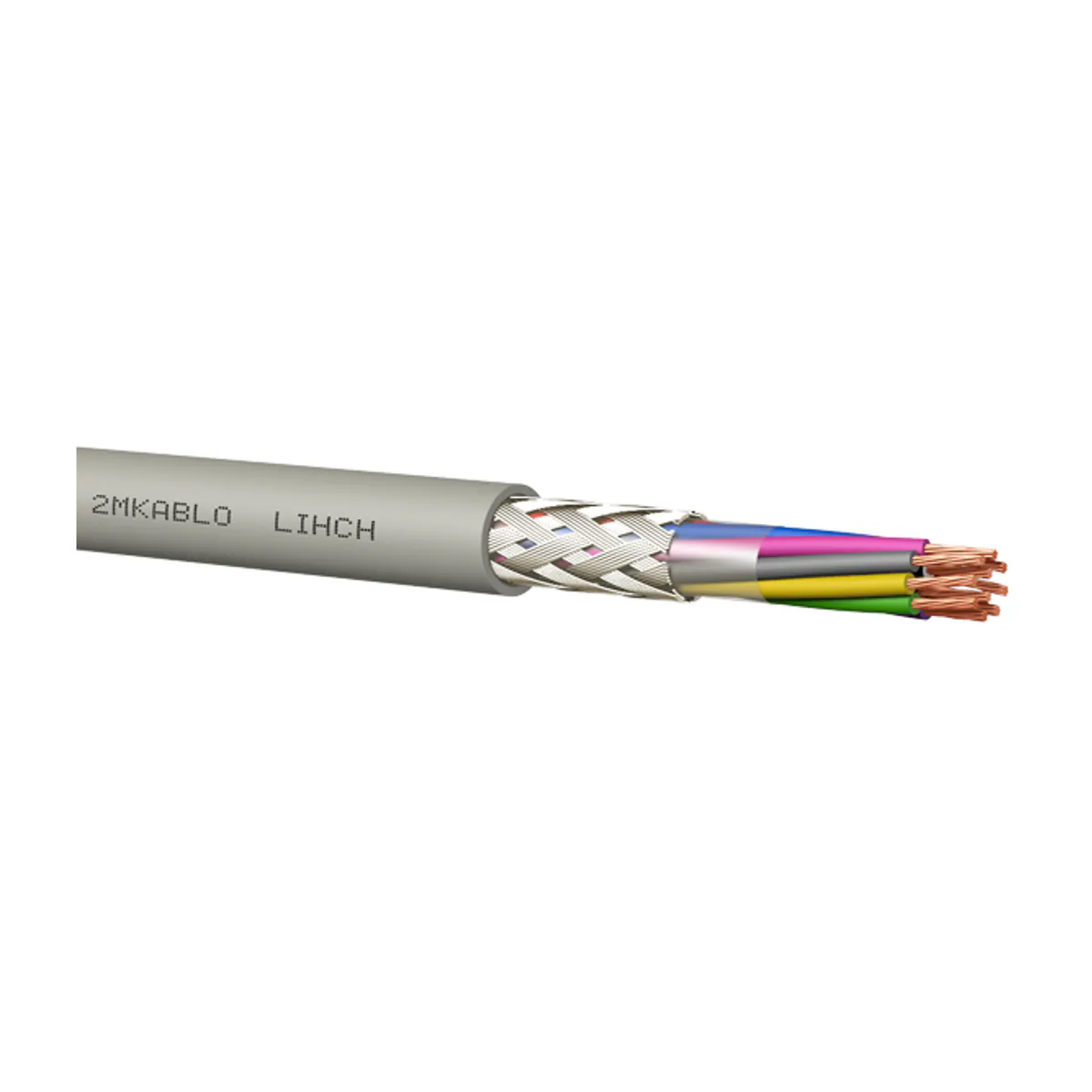

2M Kablo LIHCH-TP Halogen-Free HFFR 2x2x1.5 mm2 Gray
- Brand: 2M Kablo
- SKU: 3C00008102-1
- MPN: 3C00008102-1
- Price: 2150.00 TRY + VAT · incl. VAT 2580.00 TRY
- Availability: Made to order
- LIHCH Signal Cables
- 2M Kablo LIHCH Signal Cables
- Selection guide: LIHCH Halogen-Free Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo LIHCH-TP Halogen-Free HFFR 2x2x1.5 mm2 Gray is a product in the LIHCH control and signal cable product family of the 2M Kablo brand. Key technical features: Shielded control and signal cable; Cable type: LIHCH; Core cross-section: 2x2x1.5 mm2.
| Core Cross-Section | 2x2x1,5 mm² |
|---|---|
| Cable Type | LIHCH |
| Conductor | Bükülü Tavlı Bakır (IEC/EN 60228, Class 5, 0.34 mm²: Class 2) |
| Insulation Material | HFFR (EN 50290-2-26) |
| Core Colour Code | DIN 47100 veya Black-White ve Numaralı |
| Stranding | Damarlar bükülerek çiftler, çiftler bir arada bükülerek katmanlar halinde bükülür |
| Separator Tape | PES Bant |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | HFFR (EN 50290-2-27) |
| Outer Sheath Colour | RAL 7001 - Grey |
| Standards | VDE 0812, TS 13755 |
| Insulation Resistance | >200 MΩ·km |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı; Flexible: 15 x Kablo Çapı |
| Flame Retardance / Fire Performance | Alev Geciktirme: IEC/EN 60332-1; Duman Yoğunluğu: IEC/EN 61034-2; Halojen Asit Gaz Miktarı: IEC/EN 60754-1; Korozif Gaz Ölçümü: IEC/EN 60754-2 |
| Inductance | 0.65 mH/km (yaklaşık) |
| Operating Voltage | 300 V / 500 V |
| Conductor Loop Resistance | ≤ 26.6 Ω/km |
| Capacitance | Damar - Damar: ≤ 120 nF/km; Damar - Ekran: ≤ 180 nF/km (800Hz) |
| Outer Diameter | 10.6 mm (±5%) |
| Copper Weight | 62 kg/km |
