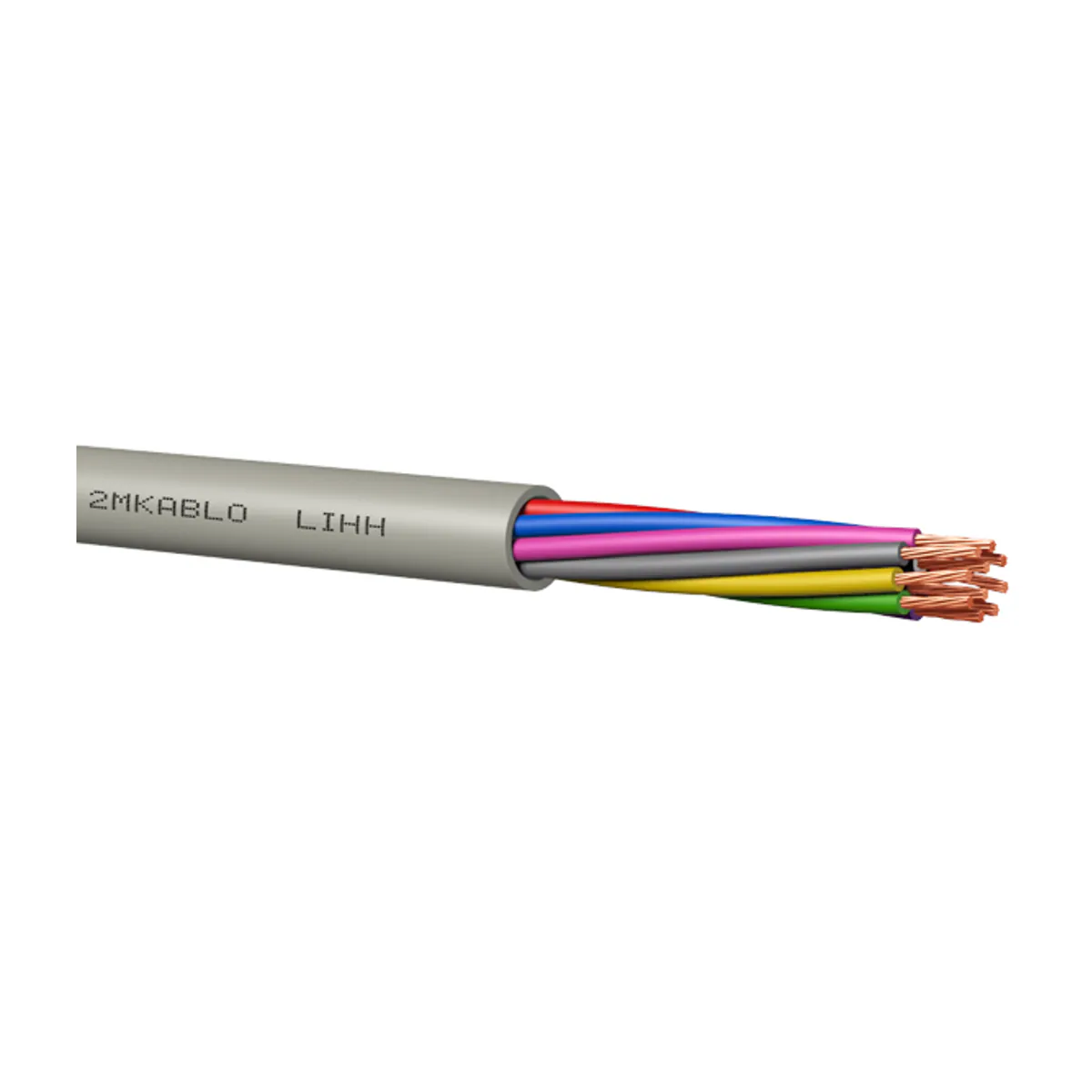

2M Kablo LIHH Halogen Free HFFR 3x2.5 mm2 Gray
- Brand: 2M Kablo
- SKU: 3C00007667-1
- MPN: 3C00007667-1
- Price: 1875.00 TRY + VAT · incl. VAT 2250.00 TRY
- Availability: Made to order
- LIHH Signal Cables
- 2M Kablo LIHH Signal Cables
- Selection guide: LIHH Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo LIHH Halogen-Free HFFR 3x2.5 mm2 Gray is a product in the LIHH control and signal cable product family of the 2M Kablo brand. Key technical features: Cable type: LIHH; Core cross-section: 3x2.5 mm2.
| Core Cross-Section | 3x2,5 mm² |
|---|---|
| Cable Type | LIHH |
| Conductor | Bükülü Tavlı Bakır (IEC/EN 60228, Class 5, 0.34 mm²: Class 2) |
| Insulation Material | HFFR (EN 50290-2-26) |
| Core Colour Code | DIN 47100 (4 damar renkleri, beyaz, sarı, kahve, yeşil) |
| Stranding | Damarlar birlikte bükülür |
| Outer Sheath Material | HFFR (EN 50290-2-27) |
| Outer Sheath Colour | RAL 7001 - Grey |
| Standards | VDE 0812, TS 13755 |
| Insulation Resistance | >200 MΩ·km |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı; Flexible: 15 x Kablo Çapı |
| Flame Retardance / Fire Performance | CPR Sınıfı: B2ca s1a d1 a1; Alev Geciktirme: IEC/EN 60332-1; Duman Yoğunluğu: IEC/EN 61034-2; Halojen Asit Gaz Miktarı: IEC/EN 60754-1; Korozif Gaz Ölçümü: IEC/EN 60754-2 |
| Inductance | 0.65 mH/km (yaklaşık) |
| Operating Voltage | 450 V / 750 V |
| Conductor Resistance | ≤ 7.98 Ω/km |
| Capacitance | Damar - Damar: ≤ 140 nF/km (800Hz) |
| Outer Diameter | 7.9 mm (±5%) |
| Copper Weight | 65 kg/km |
