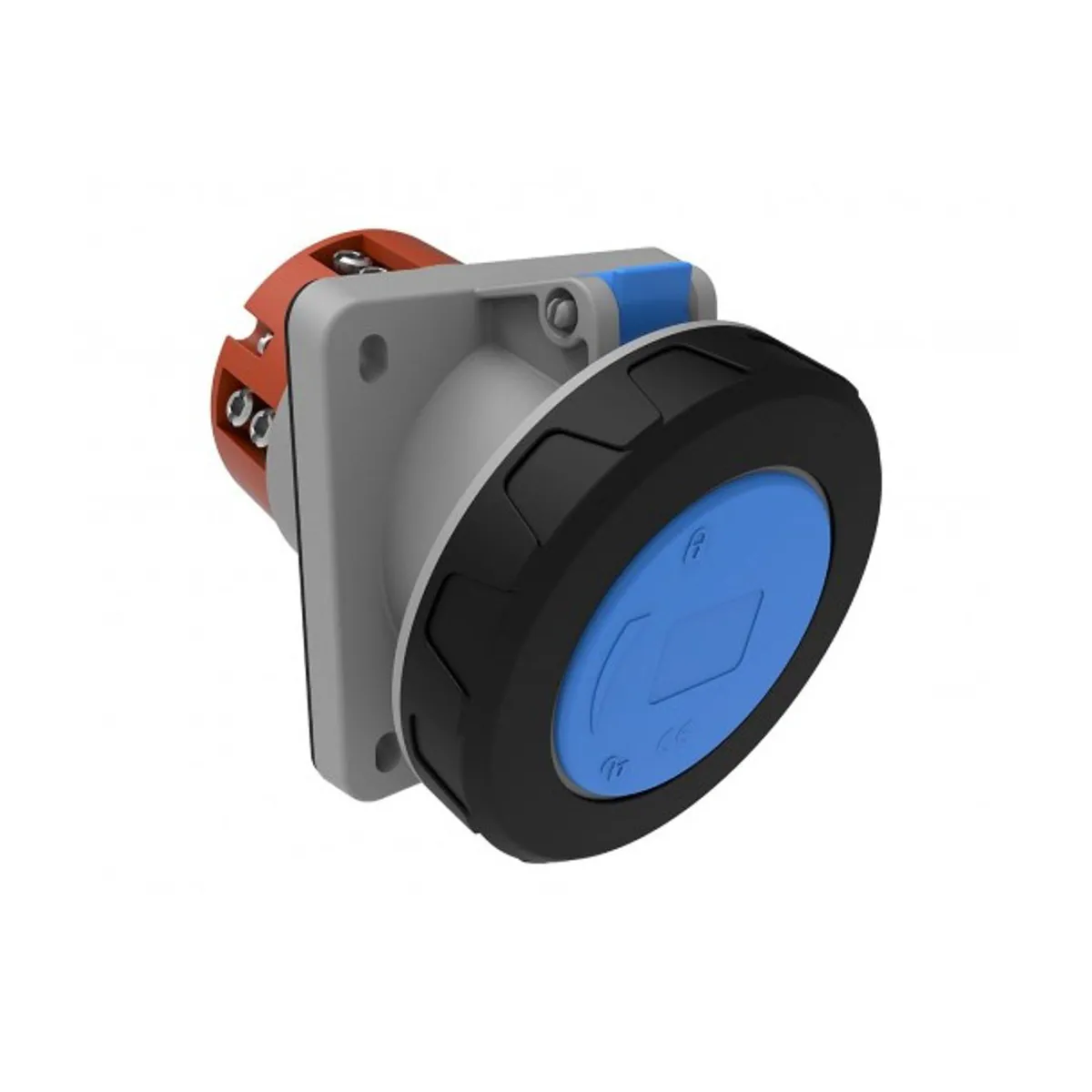

Bemis BC3-6403-7420 CEE 45° Angled Machine Socket with Pilot Contact 125 A 2P+E IP67
- Brand: Bemis
- SKU: BC3-6403-7420
- MPN: BC3-6403-7420
- Price: 2592.99 TRY + VAT · incl. VAT 3111.59 TRY
- Availability: In stock
- CEE Angled Panel Sockets
- Bemis CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
Bemis BC3-6403-7420 is a CEE 45° Angled Machine Socket with Pilot Contact model. Rated Current: 125 A. Pole arrangement: 2P+E. Voltage: 220V. AC. IP Rating: IP67. Housing Material: Polyamide 6.
| IK Impact Protection | IK10+ |
|---|---|
| Series | 3 Kontaklı CEE Norm Seri |
| Subseries | RS |
| IP Rating | IP67 |
| Rated Current | 125 A |
| Number of Contacts | 3 |
| Pole Arrangement | 2P+E |
| Voltage | 220V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Pilot Contact | Available |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 45° |
| Series Electrical Designation | 3/125A. (2P+E) 220V. AC 50/60 Hz. 6h (Polyamid 6) PİLOTLU |
| Product Configuration | 3/125A. 45° Eğik Makine Priz PİLOTLU |
| Grip surface | Darbe emici kauçuk kaplama |
| Seal construction | Sızdırmazlık contaları |
| Contact clamping | Çelik sekman |
| Terminal construction | Asansör klemens |
| Screw system | Yüksek torka dayanıklı alyan başlı vidalar |
| Cable retention | Sızdırmaz kablo sabitleme rakoru |
| Contact Material | MS58 pirinç |
| Cover operation | Tek elle açık tutulabilir |
| Voltage range | 220–250 V |
| Heat-resistant material | Red fosfor (üretici tanımı) |
