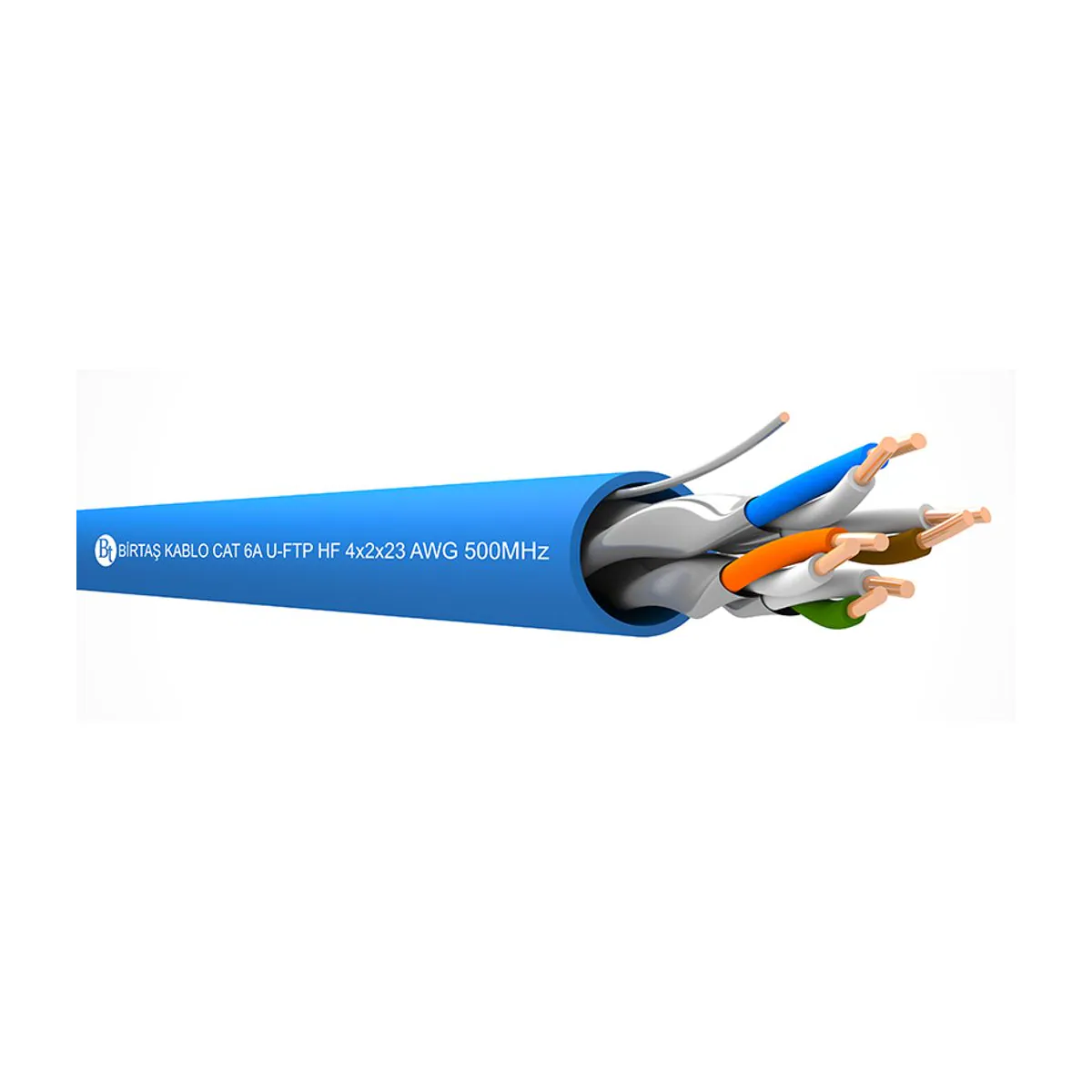

Birtaş CAT6A U/FTP HF 4x2x23 AWG blue
- Brand: Birtaş Kablo
- SKU: 1915 23 004 306
- MPN: 1915 23 004 306
- Price: 10311.40 TRY + VAT · incl. VAT 12373.68 TRY
- Availability: Made to order
- CAT6a Cables
- Selection guide: CAT6a Cables Selection Guide: Technical Criteria & Application Standards
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş CAT6A U/FTP HF 4x2x23 AWG blue is a product in the CAT6A data cable product family of the Birtaş Kablo brand. Key technical features: Cable type: CAT6A U/FTP; Core cross-section: 4x2x23 AWG.
| Conductor | Çıplak bakır tek tel, katı; 23 AWG ~Ø0,55 mm |
|---|---|
| Insulation Material | Poliolefin compound |
| Core Colour Code | 1. White/Mavi & Mavi; 2. White/Turuncu & Turuncu; 3. White/Yeşil & Yeşil; 4. White/Kahve & Kahve |
| Stranding | İki damar bir çift olarak bükülür; ekranlı çiftler 26 AWG (~Ø0,40 mm) kalaylı bakır toprak teliyle birlikte bükülür |
| Cable Shield | Çift ekranı: aluminyum polyester bant |
| Outer Sheath Material | HFFR compound |
| Outer Sheath Colour | ~RAL 5015, Mavi |
| Standards | IEC 61156-5, EN 50288-6-1, ISO/IEC 11801-1, EN 50173-1 Sınıf E, ANSI/TIA-568.2 |
| Conductor Resistance (20 °C) | Max. 9,5 Ω/100 m |
| Resistance Unbalance | Max. % 2,0 |
| Insulation Resistance | Min. 5000 MΩ·km |
| Capacitance | Nom. 50 nF/km |
| Capacitance Unbalance | Max. 1600 pF/km |
| Propagation Delay | Max. 536 ns/100 m @ 250 MHz |
| Operating Voltage | 125 V dc |
| Test Voltage | 1000 V dc / 700 V ac, 1 min.; 2500 V dc / 1,7 kV ac, 2 sn. |
| Operating Temperature | Fixed: -20 °C … +60 °C; Döşemede: 0 °C … +50 °C; Storage: -30 °C … +70 °C |
| Minimum Bending Radius | Fixed: 4 x D; Döşemede: 8 x D |
| Flame Retardance / Fire Performance | Alev geciktirici: EN 60332-1-2 & IEC 60332-1-2; Duman yoğunluğu: EN 61034-2 & IEC 61034-2; Halojensizlik: EN 60754-1/-2 & IEC 60754-1/-2 |
| Attenuation (max.) | 1 MHz: 2,1 dB/100 m; 4 MHz: 3,8 dB/100 m; 8 MHz: 5,3 dB/100 m; 10 MHz: 5,9 dB/100 m; 16 MHz: 7,5 dB/100 m; 20 MHz: 8,4 dB/100 m; 25 MHz: 9,4 dB/100 m; 31,25 MHz: 10,5 dB/100 m; 62,5 MHz: 15,0 dB/100 m; 100 MHz: 19,1 dB/100 m; 155 MHz: 24,1 dB/100 m; 200 MHz: 27,6 dB/100 m; 250 MHz: 31,1 dB/100 m; 300 MHz: 34,3 dB/100 m; 400 MHz: 40,1 dB/100 m; 500 MHz: 45,3 dB/100 m |
| Outer Diameter | Yaklaşık 7,20 mm (± %5) |
| Copper Weight | 19 kg/km |
