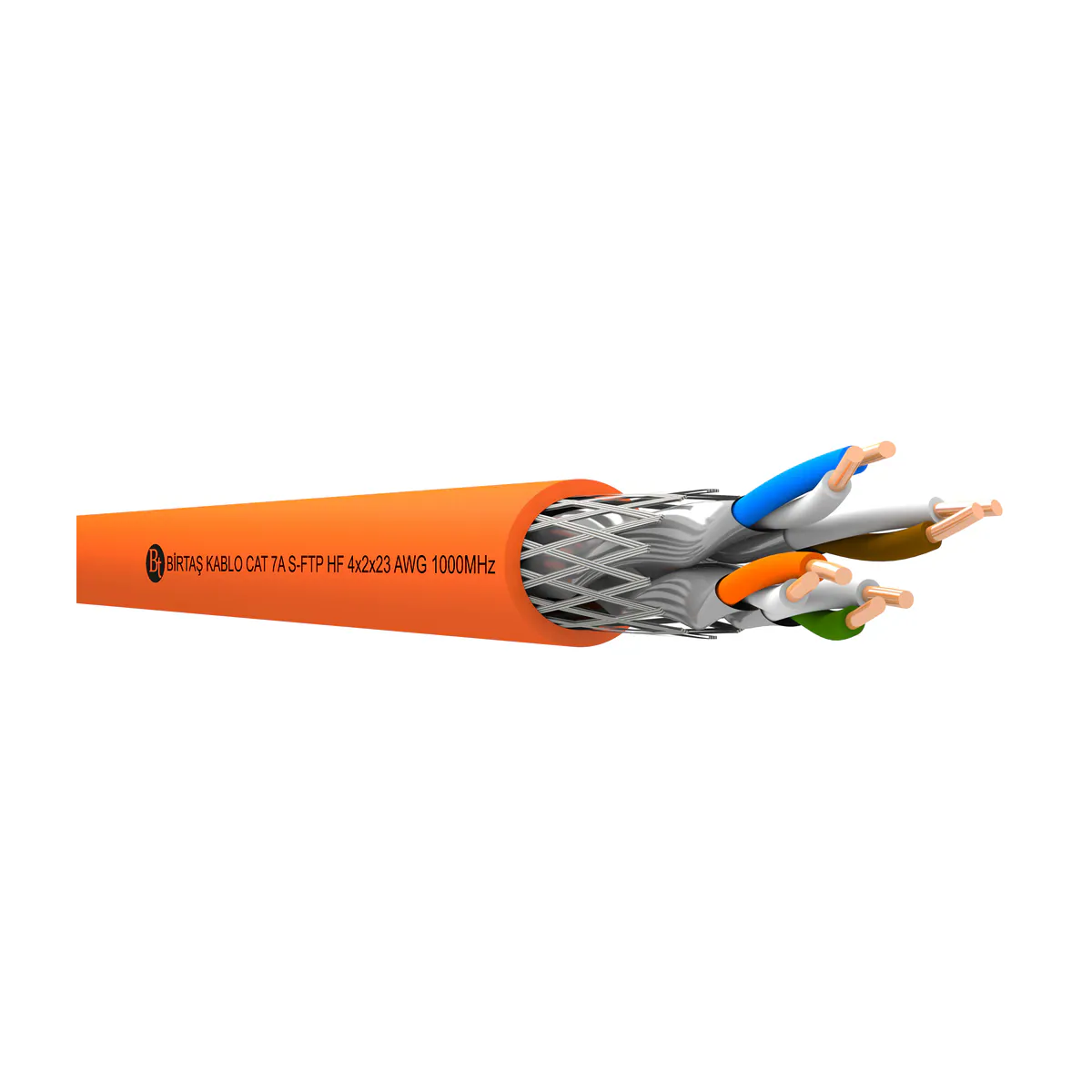

Birtaş Cat7A S/FTP 1000MHz LSZH-HFFR 4x2x23 AWG (Cca - s1, d1)
- Brand: Birtaş Kablo
- SKU: 1915 23 904 301
- MPN: 1915 23 904 301
- Price: 13141.10 TRY + VAT · incl. VAT 15769.32 TRY
- Availability: Made to order
- CAT7A Cables
- Selection guide: Ethernet LAN Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş Cat7A S/FTP 1000MHz LSZH-HFFR 4x2x23 AWG (Cca - s1, d1) is a cable in the product catalog of the Birtaş Kablo brand. Product information: Brand: Birtaş Kablo; Product/model: Birtaş Cat7A S/FTP 1000MHz LSZH-HFFR 4x2x23 AWG (Cca - s1, d1).
| Conductor | Çıplak bakır tek tel, katı; 23 AWG ~Ø0,55 mm |
|---|---|
| Insulation Material | Poliolefin compound |
| Stranding | İki damar bir çift olarak bükülür; ekranlı çiftler beraber bükülür |
| Outer Sheath Material | HFFR compound |
| Outer Sheath Colour | ~RAL 2003, Turuncu |
| Operating Voltage | 125 V dc |
| Test Voltage | 1000 V dc / 700 V ac, 1 min.; 2500 V dc / 1,7 kV ac, 2 sn. |
| Operating Temperature | Fixed: -20 °C … +60 °C; Döşemede: 0 °C … +50 °C; Storage: -30 °C … +70 °C |
| Minimum Bending Radius | Fixed: 4 x D |
| Conductor Resistance (20 °C) | Max. 9,5 Ω/100 m |
| Insulation Resistance | Min. 5000 MΩ·km |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | Yaklaşık 7,30 mm (±%5) |
| Copper Weight | 23 kg/km |
| Attenuation (20 °C, max.) | 1 MHz: 2,0 dB/100 m; 4 MHz: 3,7 dB/100 m; 8 MHz: 5,2 dB/100 m; 10 MHz: 5,8 dB/100 m; 16 MHz: 7,3 dB/100 m; 20 MHz: 8,2 dB/100 m; 25 MHz: 9,2 dB/100 m; 31,25 MHz: 10,3 dB/100 m; 62,5 MHz: 14,6 dB/100 m; 100 MHz: 18,5 dB/100 m; 155 MHz: 23,2 dB/100 m; 200 MHz: 26,5 dB/100 m; 250 MHz: 29,7 dB/100 m; 300 MHz: 32,7 dB/100 m; 400 MHz: 38,0 dB/100 m; 500 MHz: 42,8 dB/100 m; 600 MHz: 47,1 dB/100 m; 800 MHz: 54,9 dB/100 m; 1000 MHz: 61,9 dB/100 m |
| Capacitance Unbalance | Max. 1600 pF/km |
| Resistance Unbalance | Max. % 2,0 |
| Propagation Delay | Max. 536 ns/100 m @ 250 MHz |
