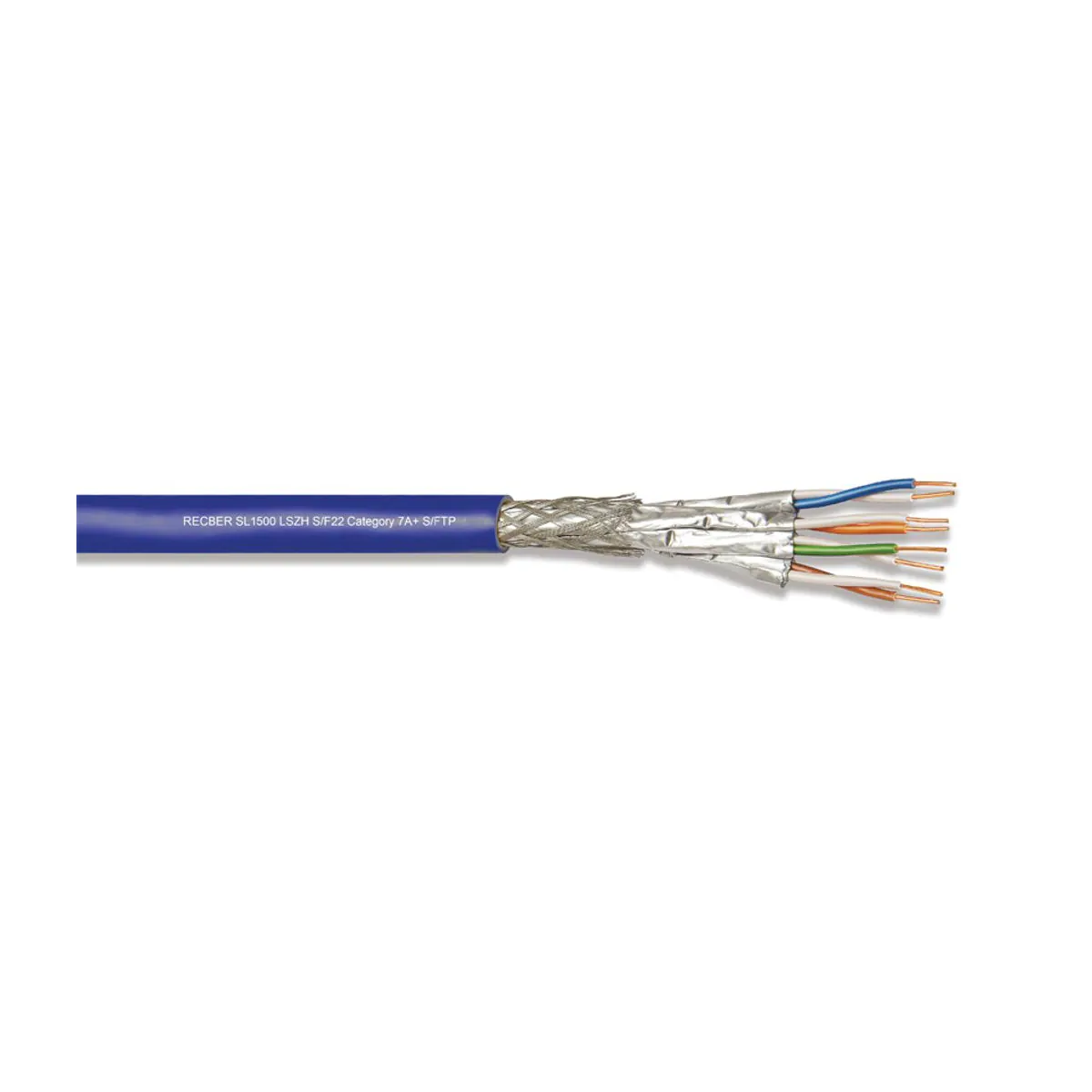

Reçber SL1500 S/F22 LSZH Category 7A+ S/FTP 4x2x22AWG Cable
- Brand: Reçber Kablo
- SKU: 507013
- MPN: 507013
- Price: 6242.40 TRY + VAT · incl. VAT 7490.88 TRY
- Availability: In stock
- CAT7A Cables
- Selection guide: Ethernet LAN Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber SL1500 S/F22 LSZH Category 7A+ S/FTP 4x2x22AWG Cable is a Reçber CAT7A+ S/FTP Ethernet data cable used in Ethernet and local area network connections. Product features Model: SL1500 S/F22 Category: Category 7A+ Shielding: S/FTP Outer sheath: LSZH Core size: 4x2x22 AWG The image is the manufacturer's representative family image; select the product according to the model and size information above.
| Conductor | Elektrolitik bakır tel, Ø 22AWG |
|---|---|
| Insulation Material | Fiziksel köpüklü PE, 70°C, EN 50290-2-23 |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Cable Shield | Ekran (Çift): Al-Pet bant min. %100 kapama; Toprak teli: Kalaylı bakır tel, Ø 26AWG; Ekran: Kalaylı bakır tel örgü % 40 kapama |
| Outer Sheath Material | LSZH/LS0H, 70°C, EN 50290-2-27 |
| Outer Sheath Colour | RAL 5002 Mavi |
| Operating Voltage | Max. 125 V |
| Test Voltage | 1000 V |
| Operating Temperature | Fixed: -20 °C … +60 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 8 x D |
| Conductor Resistance | Max. 60 Ω/km |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-7, EN 50173-1 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 7.8 mm |
| Copper Weight | 32 kg/km |
| Impedance | 100 ± 5 Ω @100MHz |
| Capacitance | Nom. 42 pF/m |
| Velocity of Propagation | 78-80% |
| Capacitance Unbalance | Max. 1600 pF/km |
| Tensile Strength | Max. 135 N |
| Crush Resistance | Min. 1000 N/10cm |
| Shock resistance | Min. 10 darbe |
| Resistance Unbalance | Max. 2% |
| Propagation Delay | Max. 430 ns/100m |
| Signal Delay | Max. 25 ns/100m |
| TCL | Min. “Seviye 2” |
| Coupling Attenuation | “Tip Ib” |
| Transfer Impedance | “Class 1” |
| Segregation Class | “d” EN 50174-2 |
| Attenuation (max.) | 1 MHz: 1,9 dB/100m; 4 MHz: 3,5 dB/100m; 10 MHz: 5,4 dB/100m; 100 MHz: 17,5 dB/100m; 250 MHz: 28,5 dB/100m; 500 MHz: 41,8 dB/100m; 600 MHz: 46,3 dB/100m; 800 MHz: 56,9 dB/100m; 1000 MHz: 62 dB/100m; 1200 MHz: 69 dB/100m |
