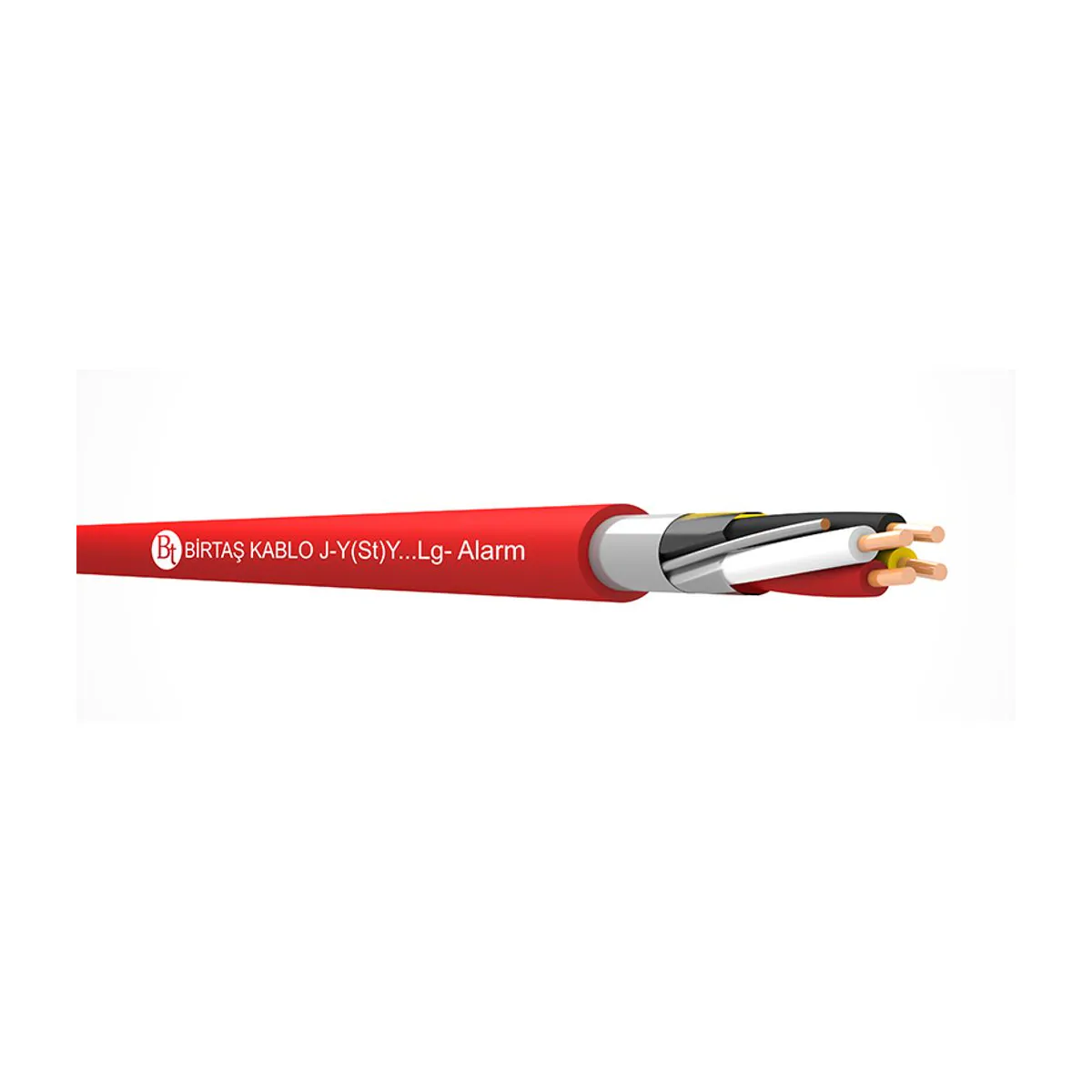

Birtaş J-Y(St)Y Lg 2x2x10+0.80 mm
- Brand: Birtaş Kablo
- SKU: 1212 06 002 111
- Price: 12233.30 TRY + VAT · incl. VAT 14679.96 TRY
- Availability: Made to order
- Fire Alarm Cables
- Birtaş Kablo Fire Alarm Cables
- Selection guide: Fire Alarm Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş J-Y(St)Y Lg 2x2x10+0.80 mm is a Birtaş Kablo product in the fire alarm cable product family.
| Conductor | Çıplak bakır tek tel, katı |
|---|---|
| Insulation Material | PVC compound, EN 50290-2-21 |
| Core Colour Code | VDE 0815, renkli damar |
| Stranding | Çiftler uygun adımda katlar halinde bükülür; 2 çift yıldız dörtlü şeklinde bükülür |
| Separator Tape | Polyester tape |
| Cable Shield | Kalaylı bakır toprak teliyle birlikte aluminyum polyester bant |
| Outer Sheath Material | PVC compound, EN 50290-2-22 |
| Outer Sheath Colour | ~RAL 3000, Kırmızı |
| Operating Voltage | Max. 300 V |
| Test Voltage | Damar/damar: 800 V; Damar/ekran: 800 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 20 MΩ·km (> Ø 0,80 mm) |
| Standards | VDE 0815 & TS 13767acc. to |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 6,50 mm (±%7) |
| Copper Weight | 35 kg/km |
| Capacitance | Max. 120 nF/km (mutual capacitance, > Ø 0,80 mm); 4 çifte kadar bu değerin %20 fazlası olabilir |
| Conductor Loop Resistance | Max. 46,8 Ω/km (Ø 1,00 mm ~ 0,78 mm²) |
| Capacitance Unbalance | Max. 300 pF/100 m |
