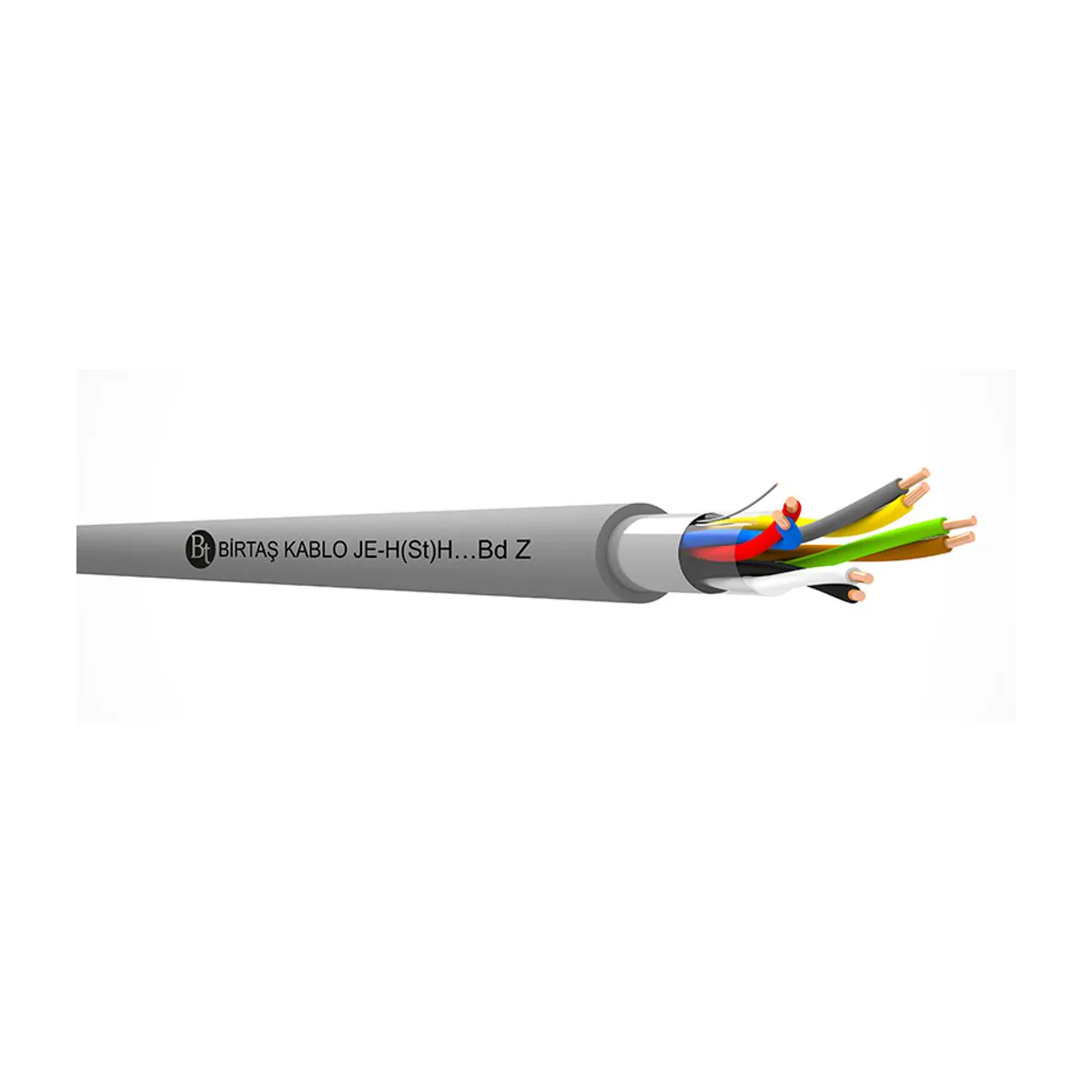

Birtaş JE-H(St)H Bd FE180 PH120 2x2x1.5+1.5 mm2
- Brand: Birtaş Kablo
- SKU: 1921 08 002 302
- Price: 24498.40 TRY + VAT · incl. VAT 29398.08 TRY
- Availability: Made to order
- JE-H(St)H Fire-Resistant Cables
- Birtaş Kablo JE-H(St)H Fire-Resistant Cables
- Selection guide: JE-H(St)H Fire-Resistant Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş JE-H(St)H Bd FE180 PH120 2x2x1.5+1.5 mm2 is a Birtaş Kablo product in the fire-resistant cable product family. Key technical features: Core cross-section: 1.5 mm2.
| Core Cross-Section | 2x2x1,5+1,5 mm² |
|---|---|
| Conductor | Çıplak bakır tek tel |
| Insulation Material | Halojensiz elastomer compound, EN 50290-2-36 |
| Core Colour Code | VDE 0815; 1. çift: mavi/kırmızı; 2. çift: gri/sarı; 3. çift: yeşil/kahve; 4. çift: beyaz/siyah |
| Stranding | 2 çift kablolar yıldız dörtlü şeklinde bükülür |
| Protective Wrap | Cam elyaf bant |
| Separator Tape | Polyester tape |
| Cable Shield | Kalaylı bakır toprak teliyle birlikte aluminyum polyester bant |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | ~RAL 2003, Turuncu |
| Standards | DIN VDE 0815 & TS 13767 |
| Conductor Loop Resistance | Max. 24,7 Ω/km |
| Insulation Resistance | Min. 100 MΩ·km |
| Capacitance | Max. 120 nF/km (4 çifte kadar bu değerin %20 fazlası olabilir) |
| Capacitance Unbalance | Max. 200 pF/100 m (değerlerin %20'si, 500 pF'ye kadar en az bir değer izin verilir) |
| Operating Voltage | Max. 225 V |
| Test Voltage | Damar/damar: 500 V; Damar/ekran: 2000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +50 °C |
| Minimum Bending Radius | 7,5 x D |
| Flame Retardance / Fire Performance | Alev geciktirici: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım: EN IEC 60332-3-24 Cat C; Duman yoğunluğu: EN 61034-2 & IEC 61034-2; Halojensizlik: EN 60754-1/-2 & IEC 60754-1/-2; Devre bütünlüğü (FE180): IEC 60331-23 |
