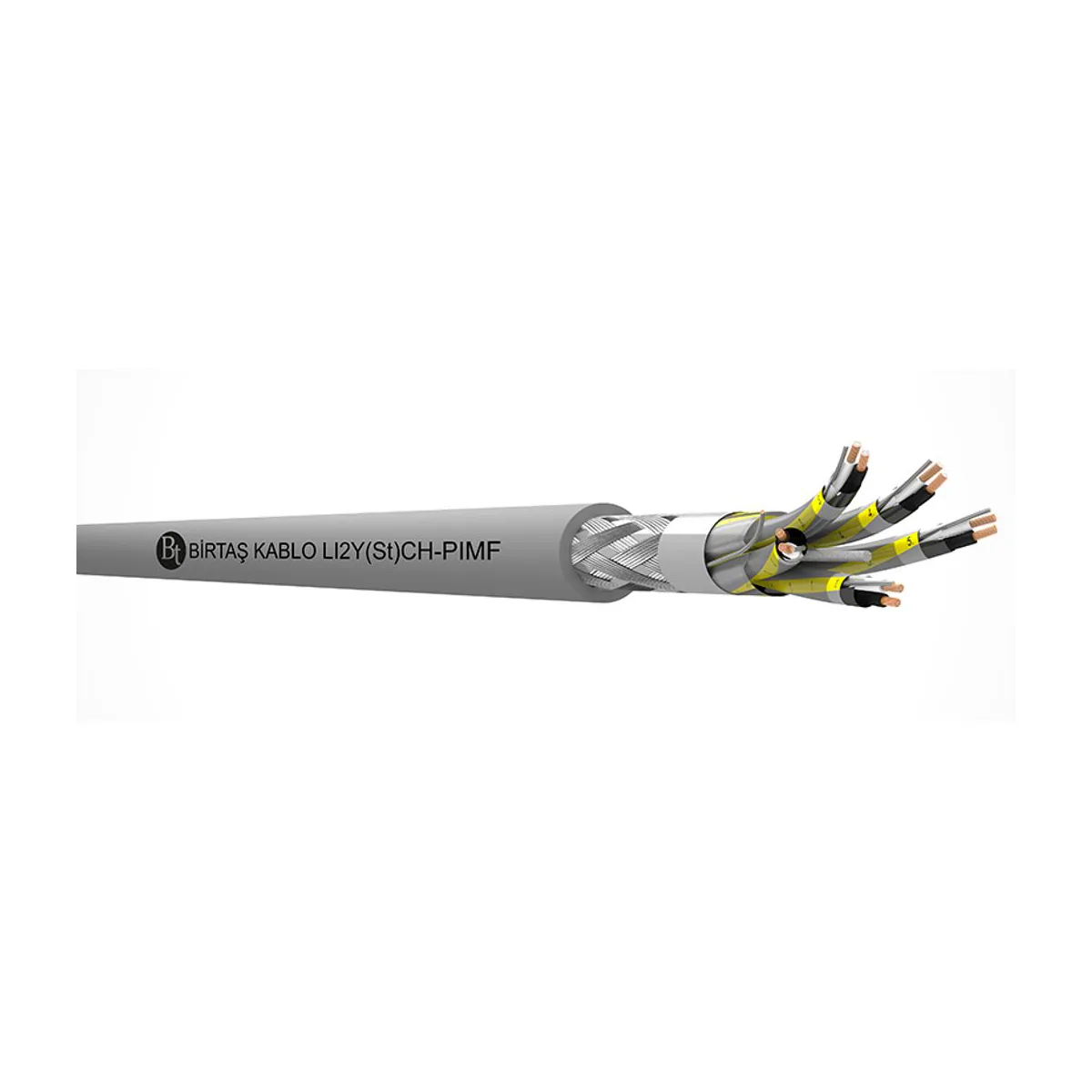

Birtaş LI2Y(St)CH-PIMF 2x2x0.50+0.22 mm2
- Brand: Birtaş Kablo
- SKU: 1911 05 002 001
- Price: 19842.80 TRY + VAT · incl. VAT 23811.36 TRY
- Availability: Made to order
- LI2Y(St)CH Signal Cables
- Selection guide: Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LI2Y(St)CH-PIMF 2x2x0.50+0.22 mm2 is a product in the control and signal cable product family of the Birtaş Kablo brand. Key technical features: Cable type: LI2Y.
| Core Cross-Section | 2x2x0,50+0,22 mm² |
|---|---|
| Cable Type | LI2Y |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Stranding | İki damar bir çift olarak bükülür; çiftler (PIMF) uygun adımda katlar halinde bükülür |
| Separator Tape | Polyester tape |
| Cable Shield | Çift ekranı: kalaylı bakır toprak teliyle birlikte aluminyum polyester bant; genel ekran: kalaylı bakır toprak teliyle birlikte aluminyum polyester bant & kalaylı bakır tel örgü; 0,22 mm² (7x0,20 mm) toprak teli |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | ~RAL 7032, Grey |
| Standards | VDE 0812 & TS 13755 |
| Insulation Resistance | Min. 20 MΩ·km |
| Capacitance | Max. 120 nF/km |
| Test Voltage | 2000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Flame Retardance / Fire Performance | Alev geciktirici: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım: EN IEC 60332-3-24 Cat C; Duman yoğunluğu: EN 61034-2 & IEC 61034-2; Halojensizlik: EN 60754-1/-2 & IEC 60754-1/-2 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Outer Diameter | Yaklaşık 8,50 mm (± %7) |
| Copper Weight | 39 kg/km |
