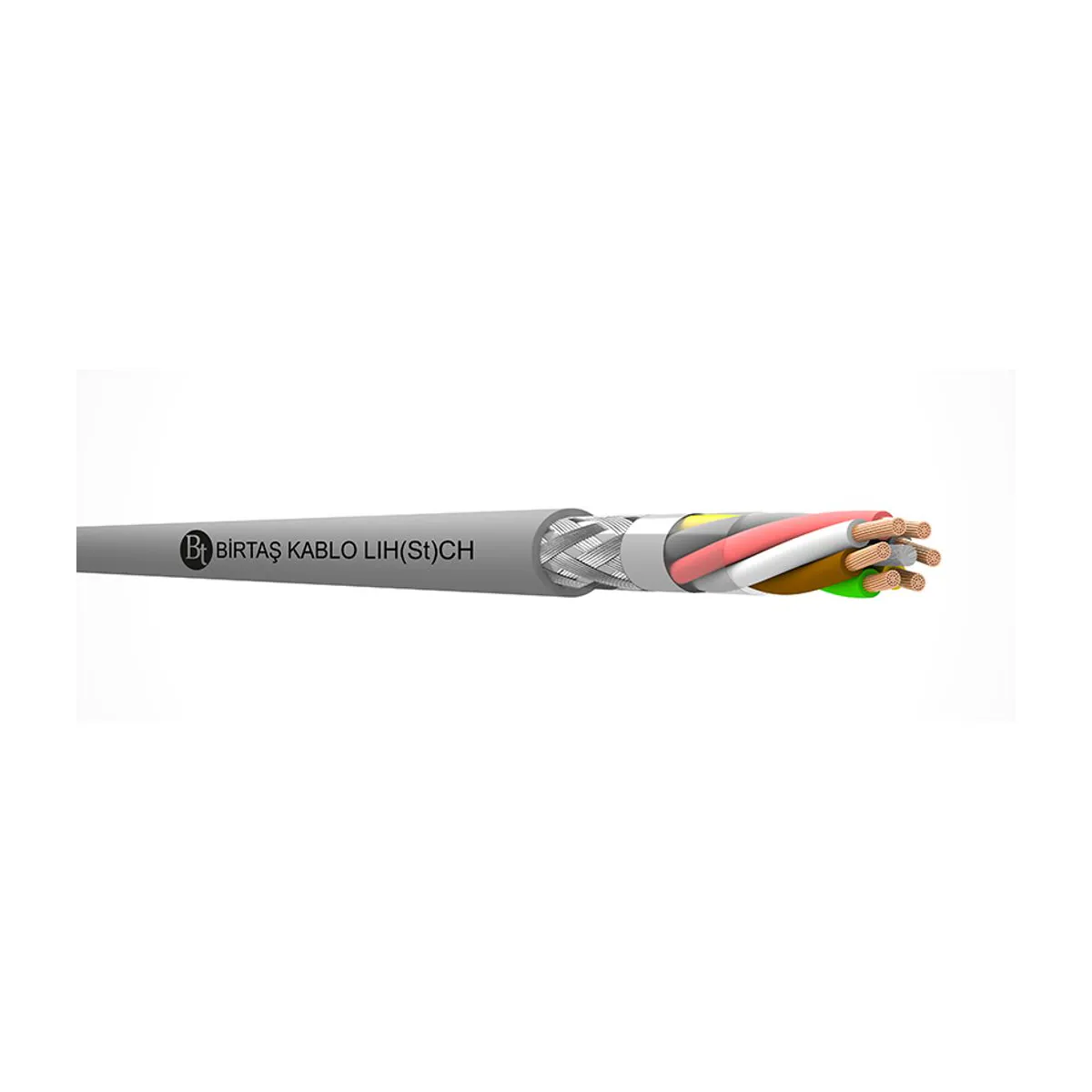

Birtaş LIH(St)CH 8x0.22 mm2
- Brand: Birtaş Kablo
- SKU: 1907 02 008 111
- Price: 12483.00 TRY + VAT · incl. VAT 14979.60 TRY
- Availability: Made to order
- LIH(St)CH Signal Cables
- Birtaş Kablo LIH(St)CH Signal Cables
- Selection guide: LIH(St)CH Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIH(St)CH 8x0.22 mm2 is a Birtaş Kablo product in the control and signal cable product family. Key technical features: Cable type: LIH(ST)CH; Core cross-section: 8x0.22 mm2.
| Core Cross-Section | 8x0,22 mm² |
|---|---|
| Cable Type | LIH(ST)CH |
| Conductor | Bükülgen çıplak bakır teller, EN 60228 Class 5; 0,22 mm²: 7x0,20 mm SnCu (Kalaylı) |
| Insulation Material | HFFR compound, EN 50290-2-26 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Separator Tape | Polyester tape |
| Cable Shield | Aluminyum polyester bant & kalaylı bakır tel örgü (kalaylı bakır toprak teli: opsiyonel) |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | ~RAL 7001, Grey |
| Operating Voltage | 250 V (< 0,50 mm²) |
| Test Voltage | 1200 V (AC 50 Hz; < 0,50 mm²) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Insulation Resistance | Min. 200 MΩ·km (< 0,50 mm²) |
| Standards | VDE 0812 & TS 13755acc. to |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım testi: EN IEC 60332-3-24 Cat C; Duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | 6,00 mm (±%7) |
| Copper Weight | 26 kg/km |
| Capacitance | Max. 150 nF/km (mutual capacitance) |
