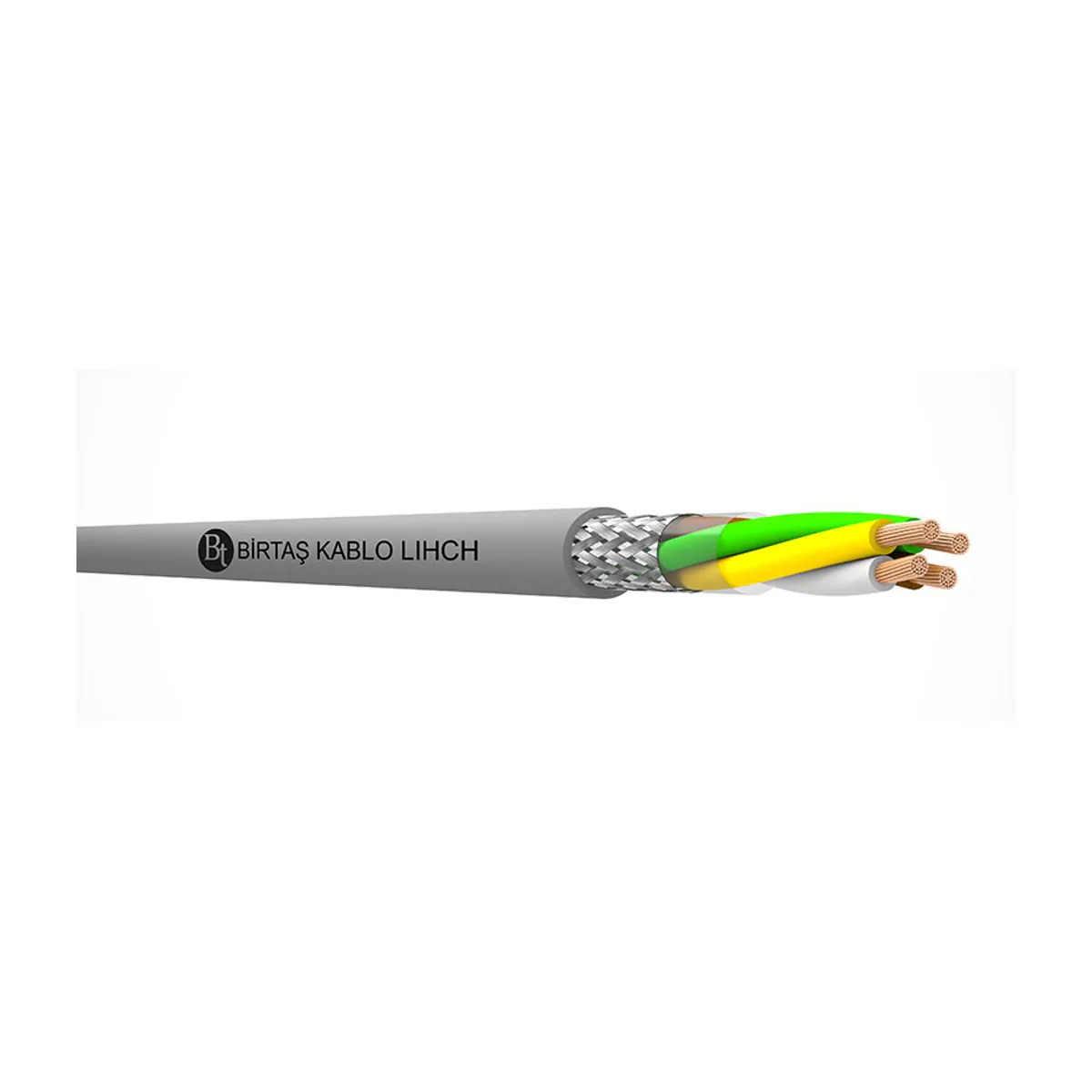

Birtaş LIHCH-OZ 12x0.50 mm2
- Brand: Birtaş Kablo
- SKU: 1903 05 012 001
- Price: 27967.00 TRY + VAT · incl. VAT 33560.40 TRY
- Availability: Made to order
- LIHCH Signal Cables
- Birtaş Kablo LIHCH Signal Cables
- Selection guide: LIHCH Halogen-Free Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIHCH-OZ 12x0.50 mm2 is a Birtaş Kablo product in the control and signal cable product family. Key technical features: Cable type: LIHCH; Core cross-section: 12x0.50 mm2.
| Core Cross-Section | 12x0,50 mm² |
|---|---|
| Cable Type | LIHCH |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | HFFR compound, EN 50290-2-26 |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester tape |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | ~RAL 7001, Grey |
| Operating Voltage | Uo/U: 300/500 V |
| Test Voltage | 2000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | VDE 0812 & TS 13755acc. to |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım testi: EN IEC 60332-3-24 Cat C; Duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | Yaklaşık 9,20 mm (± %7) |
| Copper Weight | 74 kg/km |
| Capacitance | Max. 150 nF/km (mutual capacitance) |
