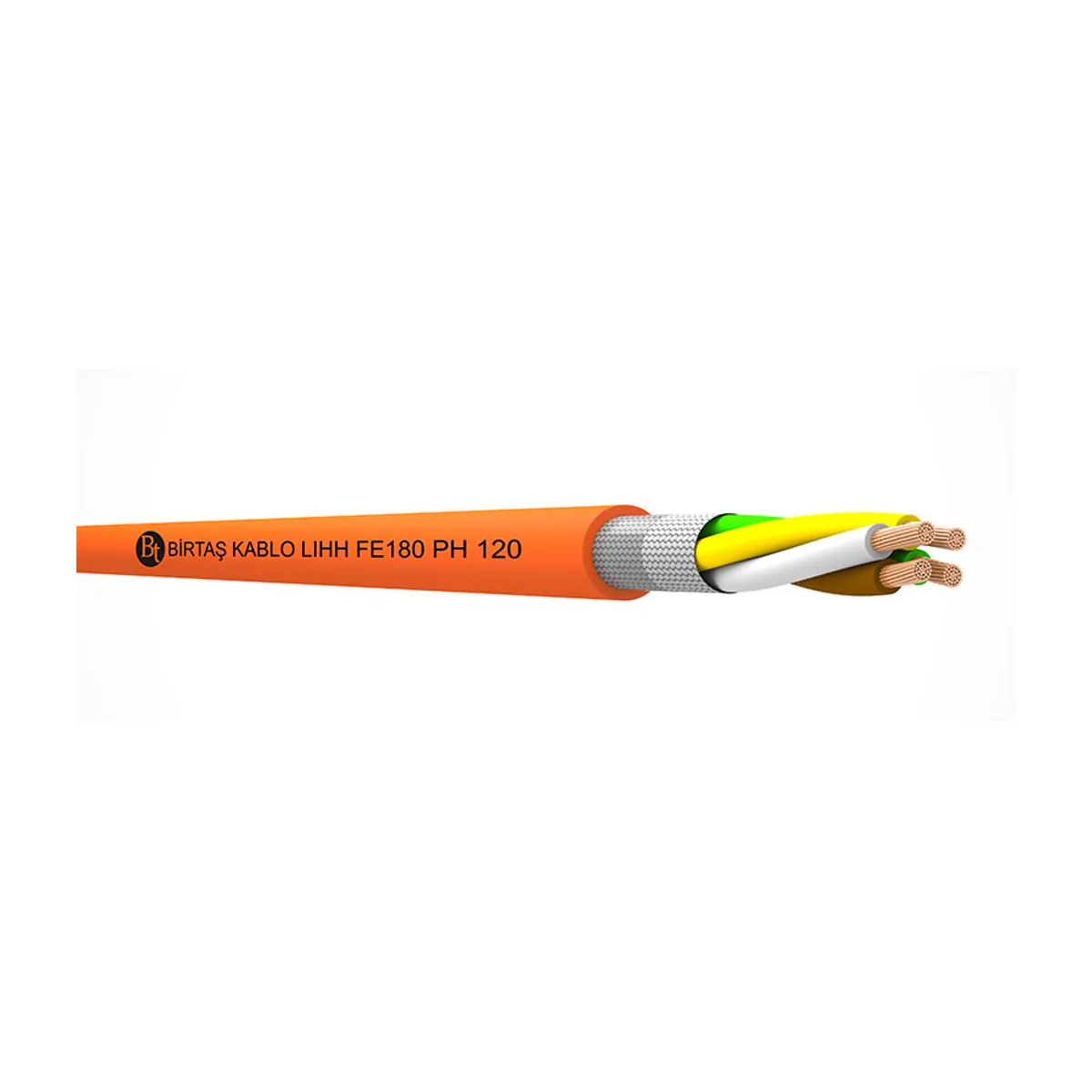

Birtaş LIHH FE180 PH120 4x1.5 mm2
- Brand: Birtaş Kablo
- SKU: 1916 08 004 301
- Price: 19537.30 TRY + VAT · incl. VAT 23444.76 TRY
- Availability: Made to order
- LIHH Fire-Resistant Cables
- Birtaş Kablo LIHH Fire-Resistant Cables
- Selection guide: LIHH Fire-Resistant Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIHH FE180 PH120 4x1.5 mm2 is a Birtaş Kablo product in the fire-resistant cable product family. Key technical features: Cable type: LIHH; Core cross-section: 4x1.5 mm2.
| Core Cross-Section | 4x1,5 mm² |
|---|---|
| Cable Type | LIHH |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | Halojensiz elastomer compound, EN 50290-2-36 |
| Stranding | Cores stranded in layers with suitable lay length |
| Protective Wrap | Cam elyaf bant |
| Separator Tape | Polyester tape |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | ~RAL 2003, Turuncu |
| Standards | VDE 0812 & TS 13734 |
| Insulation Resistance | Min. 20 MΩ·km |
| Capacitance | Max. 120 nF/km |
| Operating Voltage | Uo/U: 300/500 V |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +50 °C |
| Minimum Bending Radius | Fixed: 10 x D; Flexible: 15 x D |
| Flame Retardance / Fire Performance | Alev geciktirici: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım: EN IEC 60332-3-24 Cat C; Duman yoğunluğu: EN 61034-2 & IEC 61034-2; Halojensizlik: EN 60754-1/-2 & IEC 60754-1/-2; Devre bütünlüğü (FE180): IEC 60331-23 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Outer Diameter | Yaklaşık 7,80 mm (± %7) |
| Copper Weight | 51 kg/km |
